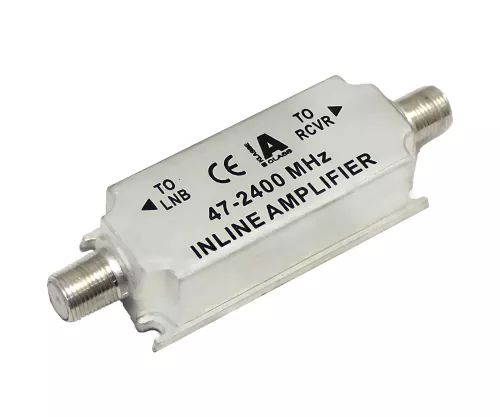

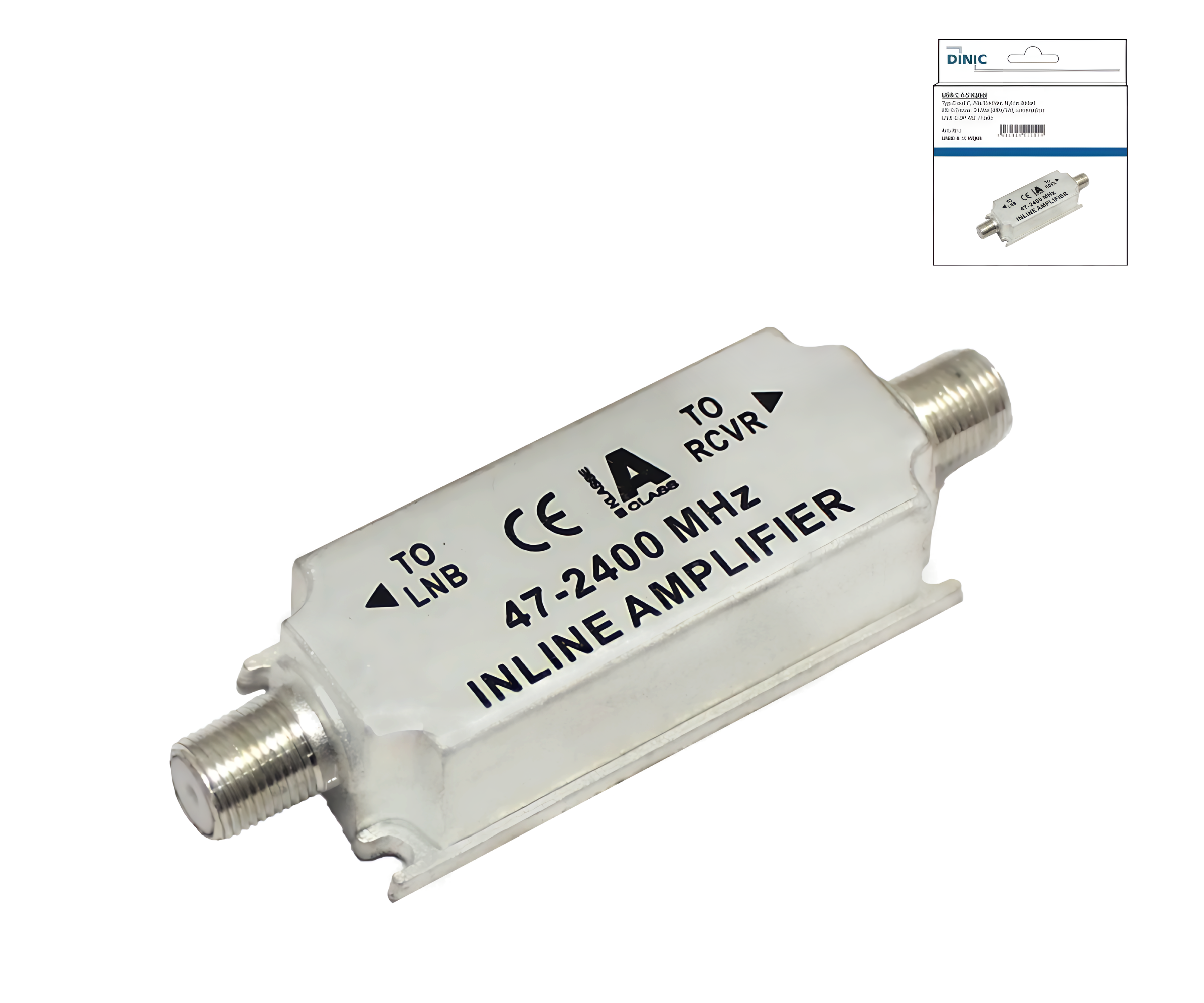

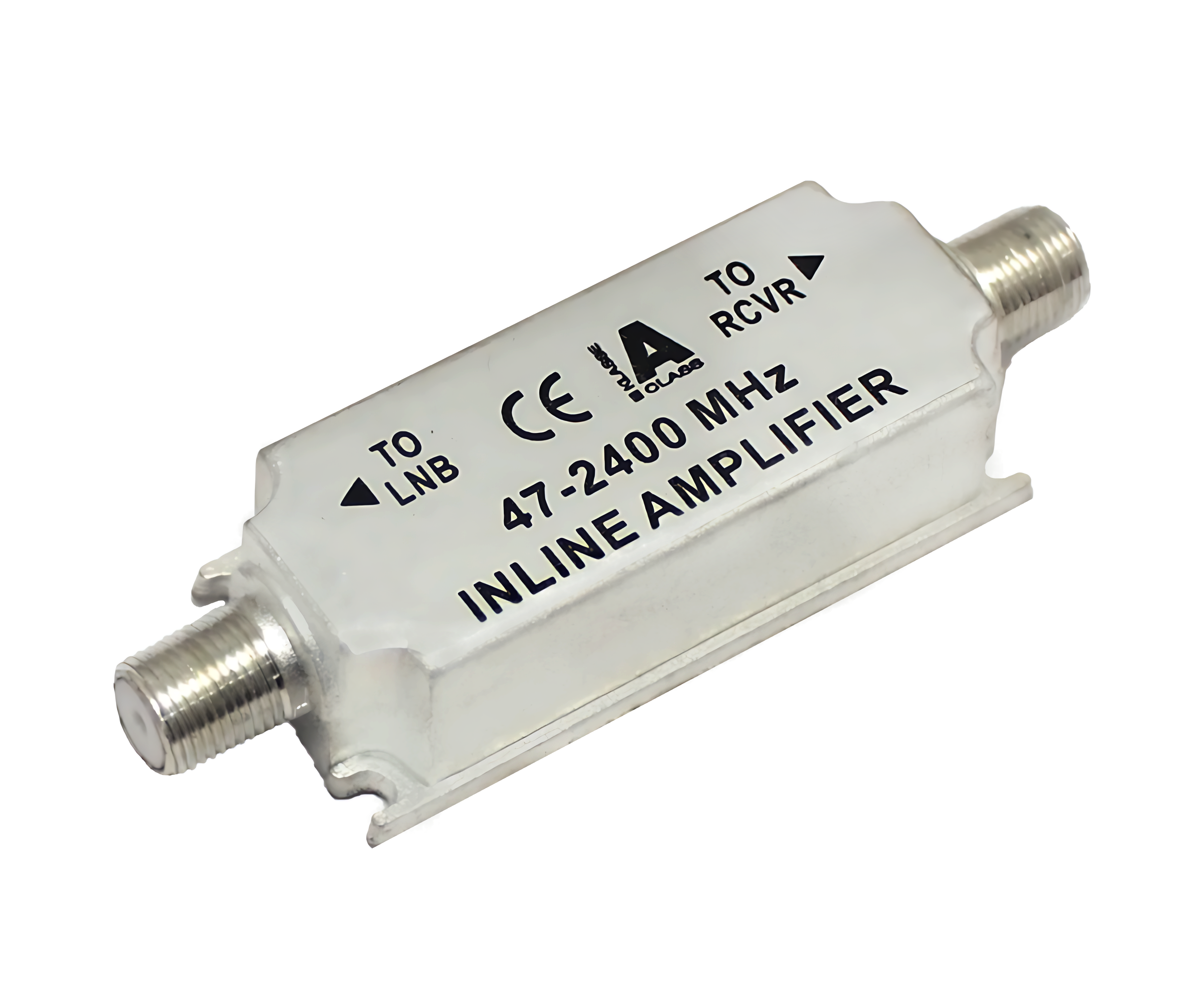

DINIC SAT line amplifier, F socket, Suitable for: FM, DVB-T, HDTV, digital receiver, DINIC box with Eurohole

• Coax connection: F socket to F socket (inline installation in SAT/TV cabling)
• Gain: up to 20 dB to compensate for line and distribution losses
• Frequency range: 47-2400 MHz (broadband for terrestrial and SAT applications)
• DC pass-through for installations with supply voltage via coax
• Fully shielded design to reduce interference
• Robust die-cast metal housing, colour: silver
• Mounting option via mounting holes (can be fixed to mounting plate/support)
• Input voltage: approx. 15 V

The DINIC SAT line amplifier is a compact inline amplifier for increasing the signal level in coaxial networks. Typical applications are long cable runs, structured distributions (e.g. SAT distributors) or installations where the reception reserve is reduced due to attenuation.

Thanks to the broadband operating range of 47 to 2400 MHz, the amplifier is suitable for VHF, DVB-T and digital SAT signals through to HDTV applications. The DC feed-through supports installation concepts in which the supply voltage is fed via the coaxial cable (prerequisite: approx. 15 V supply).

The die-cast metal housing in a shielded design is designed for professional use and can be securely fixed using integrated mounting holes - advantageous in technical areas, distribution points and structured building networks.

• Building technology: SAT/TV distributions in multi-party properties
• System integration: Level boosting at transfer points, floor and spur lines
• Specialist trade/installation: Optimisation of reception reserves for long cable runs
• Service & maintenance: Troubleshooting for borderline signal levels (pixelation/dropouts)
• Components before/after SAT distributors (depending on the network structure)

• 1x DINIC SAT line amplifier (F socket/F socket), individually packaged (DINIC box with Euro hole)
