DINIC IEC 60320-C14 flush-mounted socket for screw fixing, 10 A, 250 V~, bulk packaging

Main page » Products » Electricity » IEC 60320 flush-mounted sockets » DINIC IEC 60320-C14 flush-mounted socket for screw fixing, 10 A, 250 V~, bulk packaging

Preview: DINIC IEC 60320-C14 Einbaubuchse zum Schrauben, 10 A, 250 V~, Bulk Verpackung

DINIC IEC 60320-C14 flush-mounted socket for screw fixing, 10 A, 250 V~, bulk packaging

Mobile Preview: DINIC IEC 60320-C14 Einbaubuchse zum Schrauben, 10 A, 250 V~, Bulk Verpackung

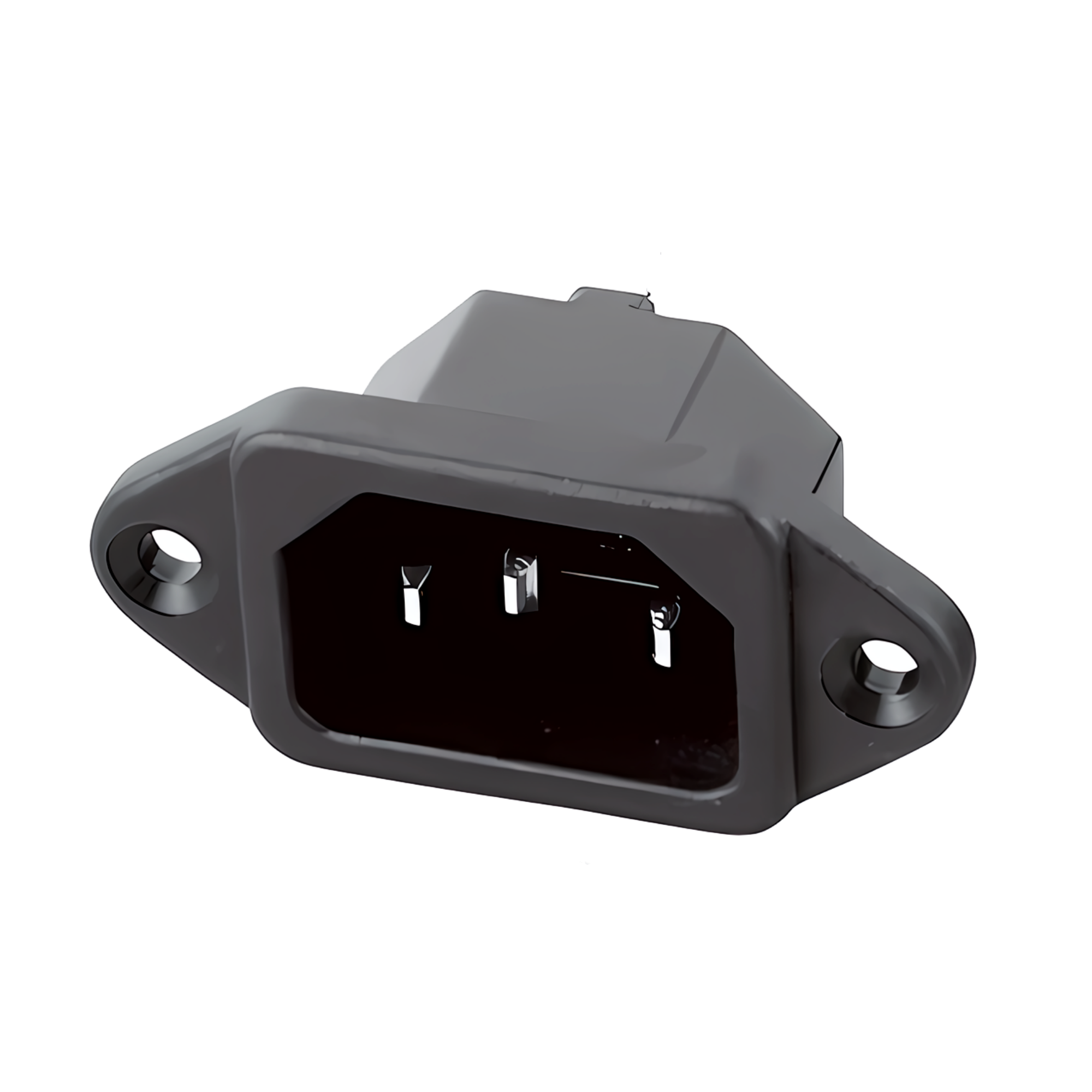

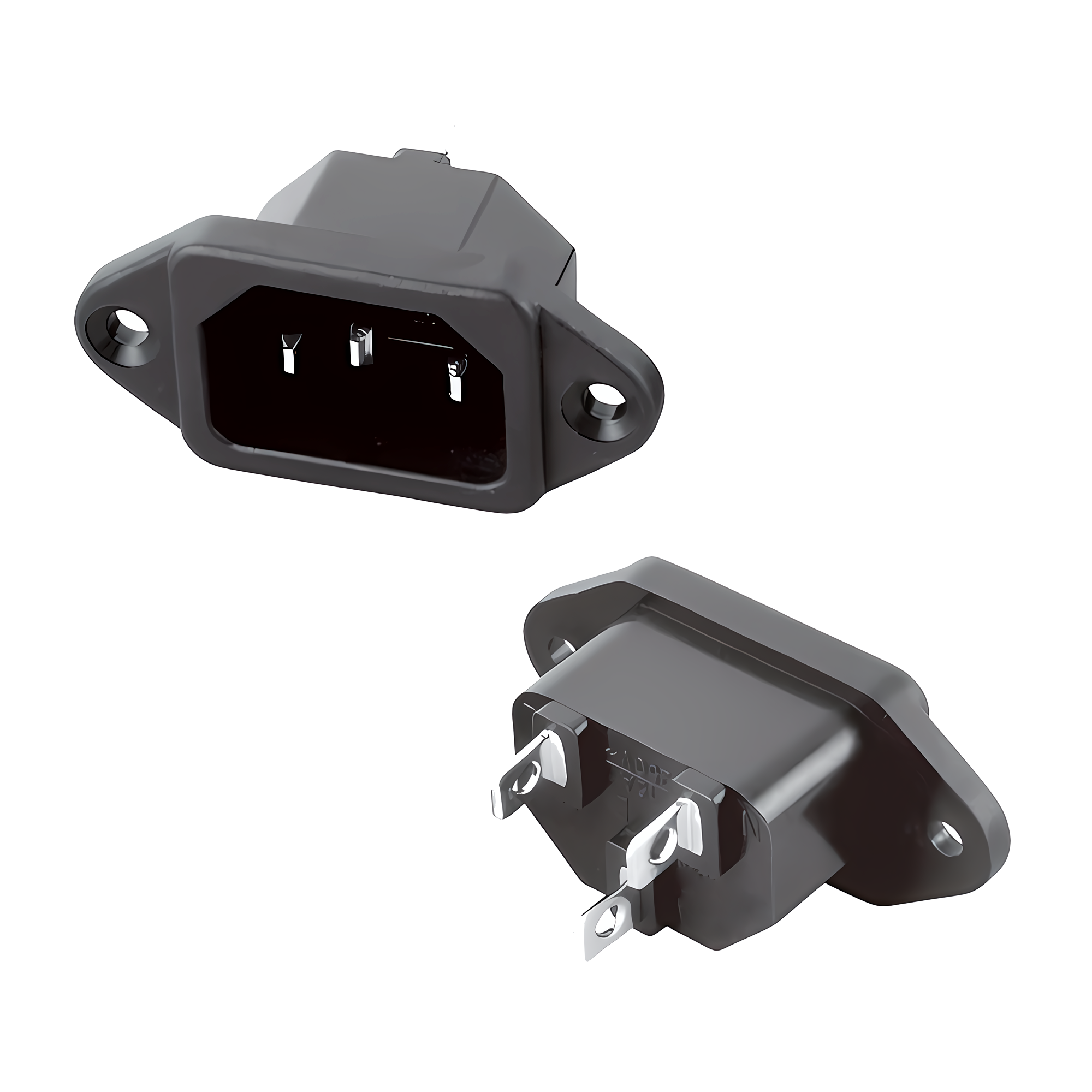

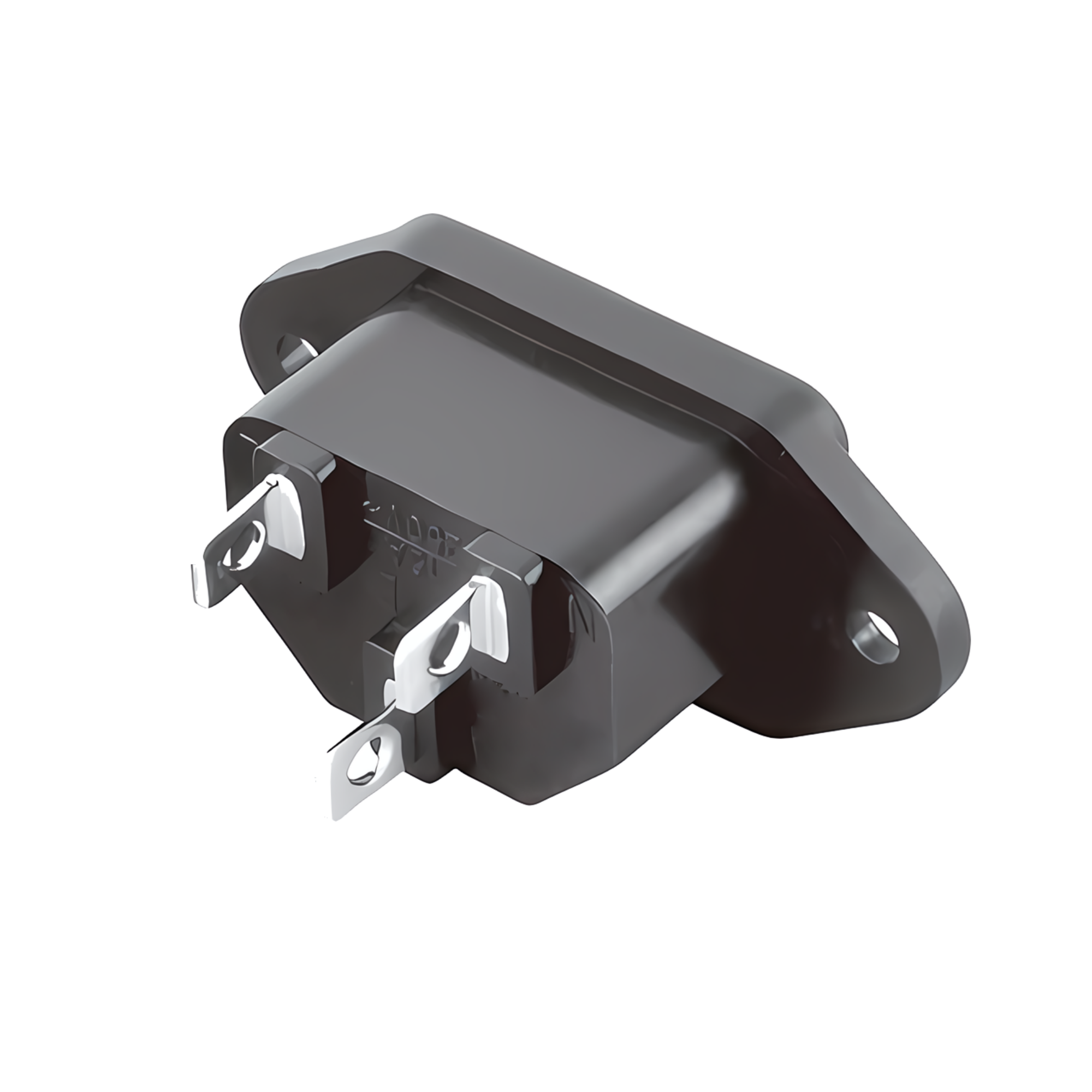

IEC 60320-C14 3-pole flush-mounted socket for screw fixing, 10 A, 250 V~

DINIC C14 flush-mounted socket for permanent installation in equipment via screw mounting, with a rated current of 10 A, a rated voltage of 250 V~ and a 3-pole L/N/PE connection.

Quick overview

Brand: DINIC

Item number: CBH-E-C14

EAN: 4032528044996

Product type: IEC 60320-C14 flush-mounted socket

Installation: Screw-mounted

Rated values: 10 A / 250 V~

Number of poles: 3-pole

Terminals: L, N, PE

Packaging: Bulk packaging

Advantages

IEC 60320-C14 design for standardised IT equipment mounting interfaces.
Screw mounting for secure fixing in suitable enclosures and front panels.
3-pole connection design with L, N and PE for applications with a protective conductor.
Electrical rating of 10 A and 250 V~ for suitable equipment inputs.
Housing made from PA66 GF3 thermoplastic in accordance with product specifications.

Product description

The IEC 60320-C14 3-pole screw-type socket is designed for permanent installation in equipment, power supply units and technical assemblies. With a rated current of 10 A, a rated voltage of 250 V~ and L/N/PE terminals, it is suitable for standardised IT equipment power supplies with a protective earth conductor.

For purchasing, design, equipment assembly and series production, the unique item number CBH-E-C14, the EAN 4032528044996, the screw-termination method and the specified drawing dimensions are particularly relevant. The product is supplied in bulk packaging.

Typical applications

Equipment enclosures and front panels with a designated C14 mounting interface
Power supply units and electrical assemblies
Testing, measurement and service technology
Spare parts and production requirements in workshops, industry and equipment assembly

Technical data

Brand

DINIC

Manufacturer / responsible person in the EU

MAG GmbH, Vechelder Straße 22, 38268 Lengede

Item number

CBH-E-C14

EAN

4032528044996

Product type

C14 power socket, flush-mounted socket

Standard

IEC 60320 C14

Mounting type

Screw mounting

Rated current

10 A

Rated voltage

250 V~

Number of poles

3-pole

Connections

L (phase), N (neutral), PE (protective earth)

Housing material

Thermoplastic, PA66 GF3

Front width as per drawing

50.1 mm

Mounting spacing as per drawing

40 mm

Mounting cut-out as per drawing

24 +0.5/-0 x 16 +0.5/-0 mm

Packaging type

Bulk packaging

Compatibility

Suitable for devices and assemblies with a designated IEC 60320-C14 mounting interface, a matching mounting cut-out and 3-pole wiring for L, N and PE. On the appliance cable side, the C14 mounting socket is designed for compatible IEC 60320-C13 couplers.

Notes

Before ordering, the mounting cut-out, mounting spacing and the space required for rear wiring should be checked against the technical drawing.

Selection and practical guidance

To ensure correct selection, check the IEC type, electrical rating of 10 A / 250 V~, the 3-pole pin configuration (L/N/PE) and the dimensions shown in the drawing. Of particular relevance are the cut-out dimensions of 24 x 16 mm, the mounting spacing of 40 mm and the front width of 50.1 mm.

Frequently asked questions

Is the socket intended for permanent installation?

Yes, the product is designed as an IEC 60320-C14 flush-mounted socket for screw mounting.

What are the electrical ratings of the flush-mounted socket?

The flush-mounted socket is rated at 10 A and 250 V~.

What connections are available?

There are terminals for L, N and PE.

Which mating connector fits on the appliance lead side?

Matching IEC 60320-C13 plugs are provided on the appliance cable side.

How is the item supplied?

It is supplied in bulk packaging.

Contents

1 x DINIC IEC 60320-C14 flush-mounted socket for screw fixing
