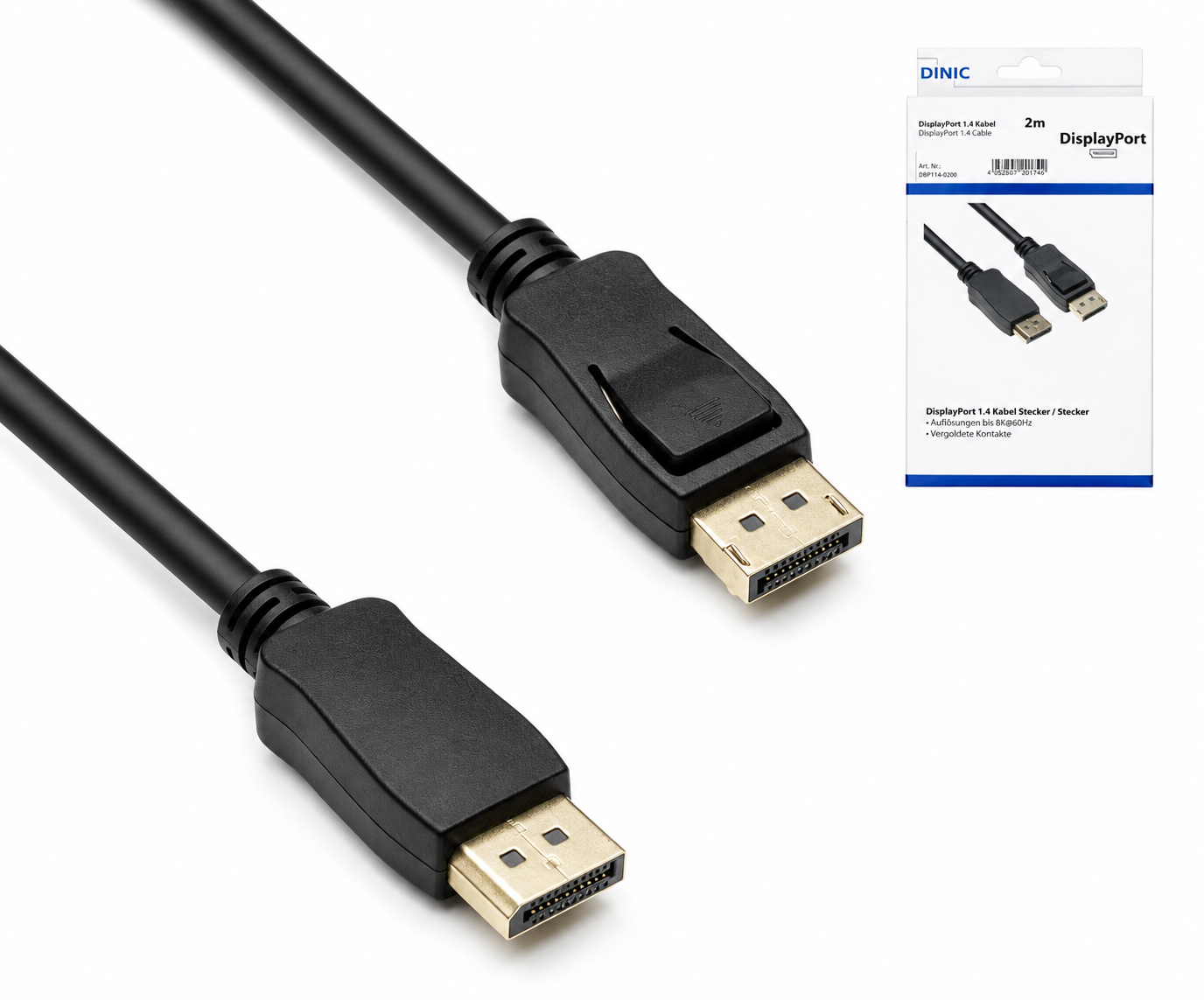

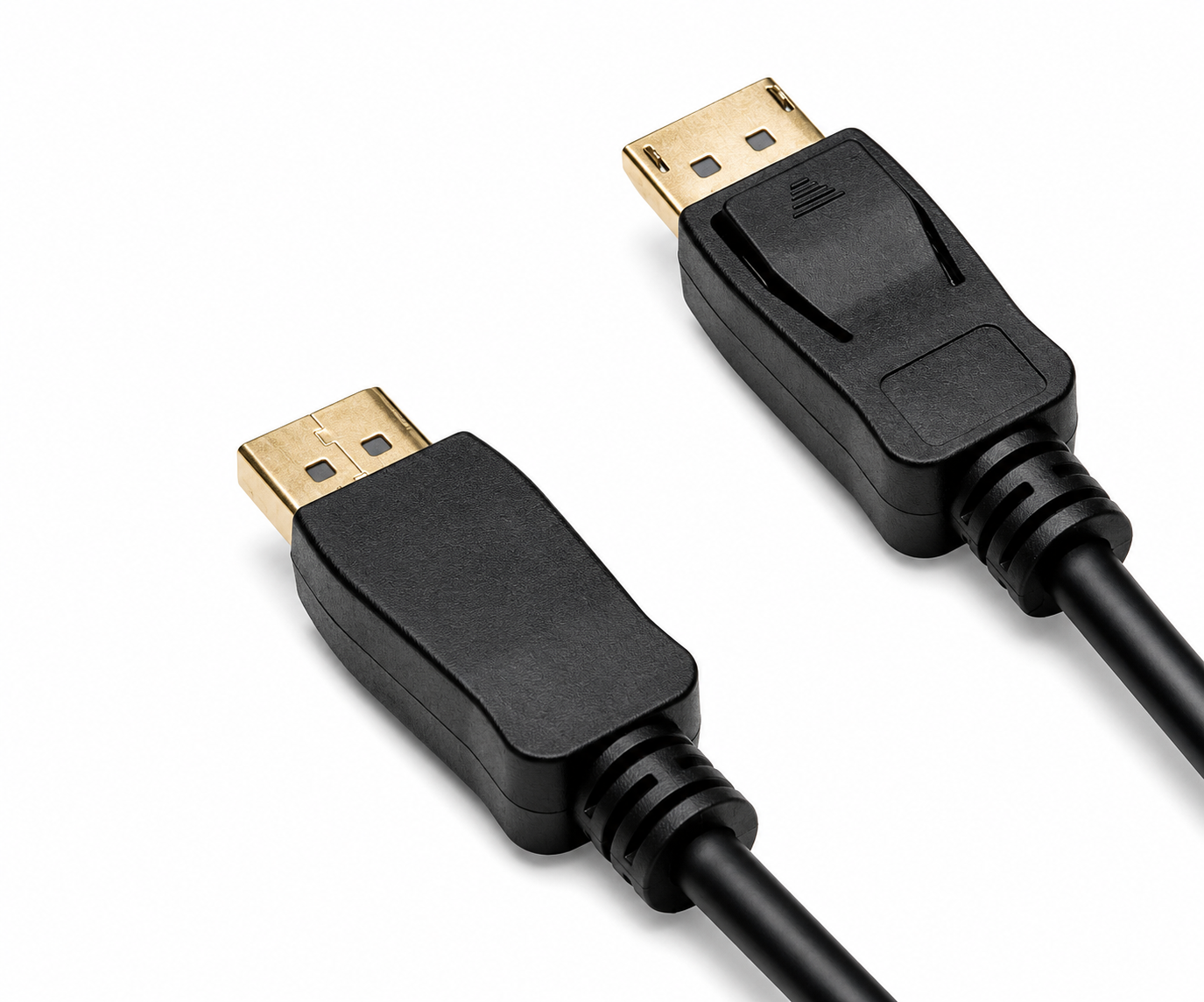

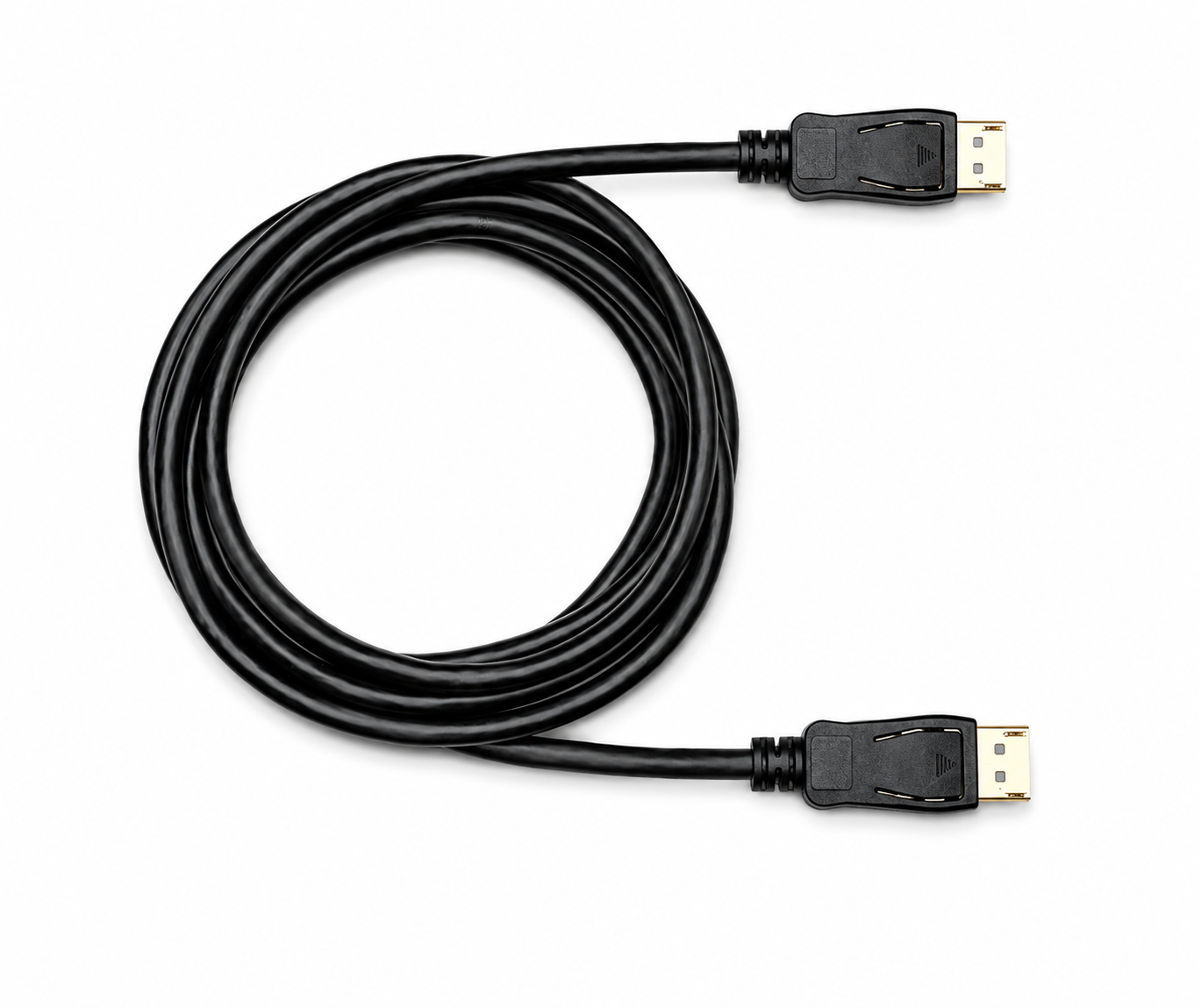

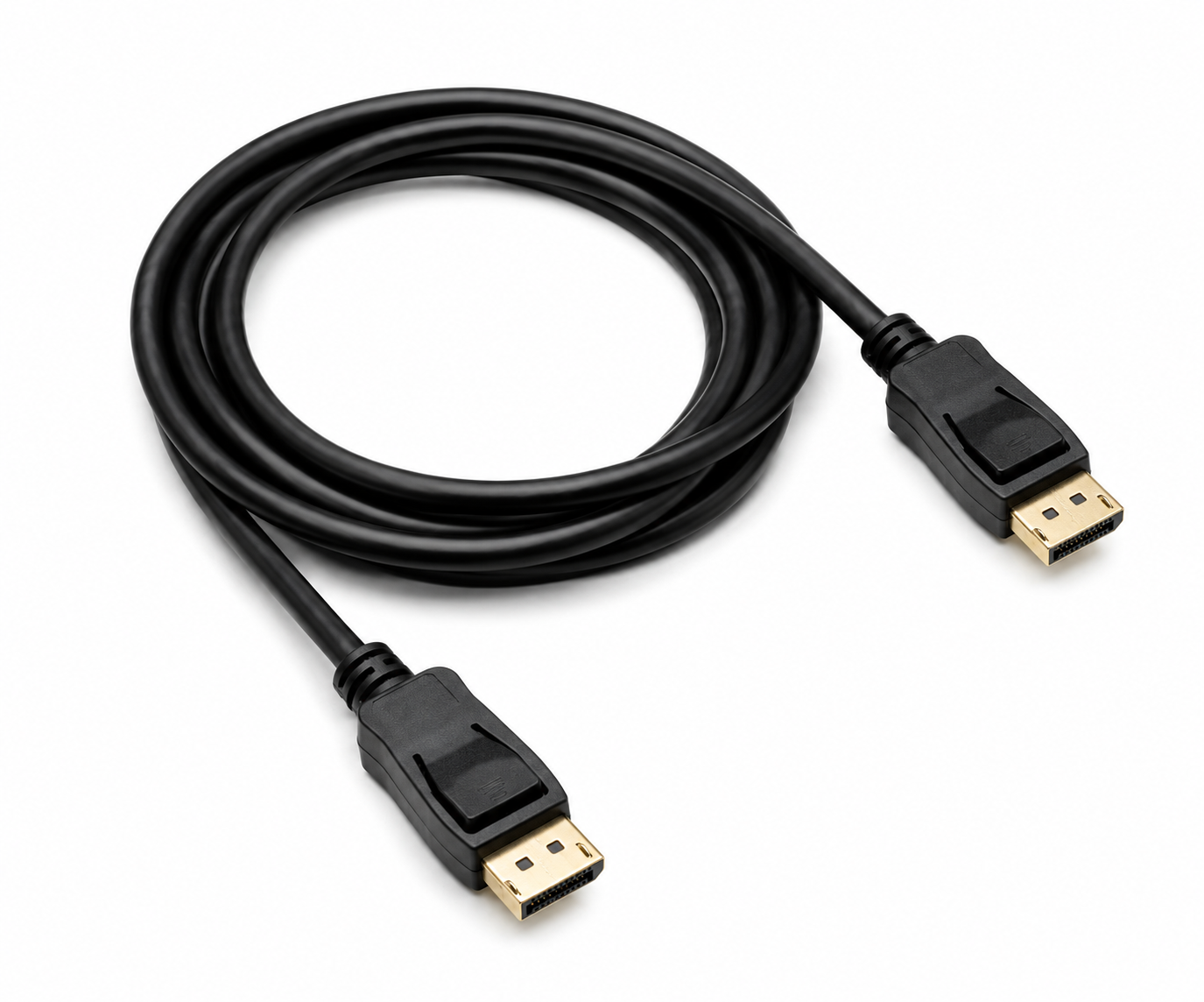

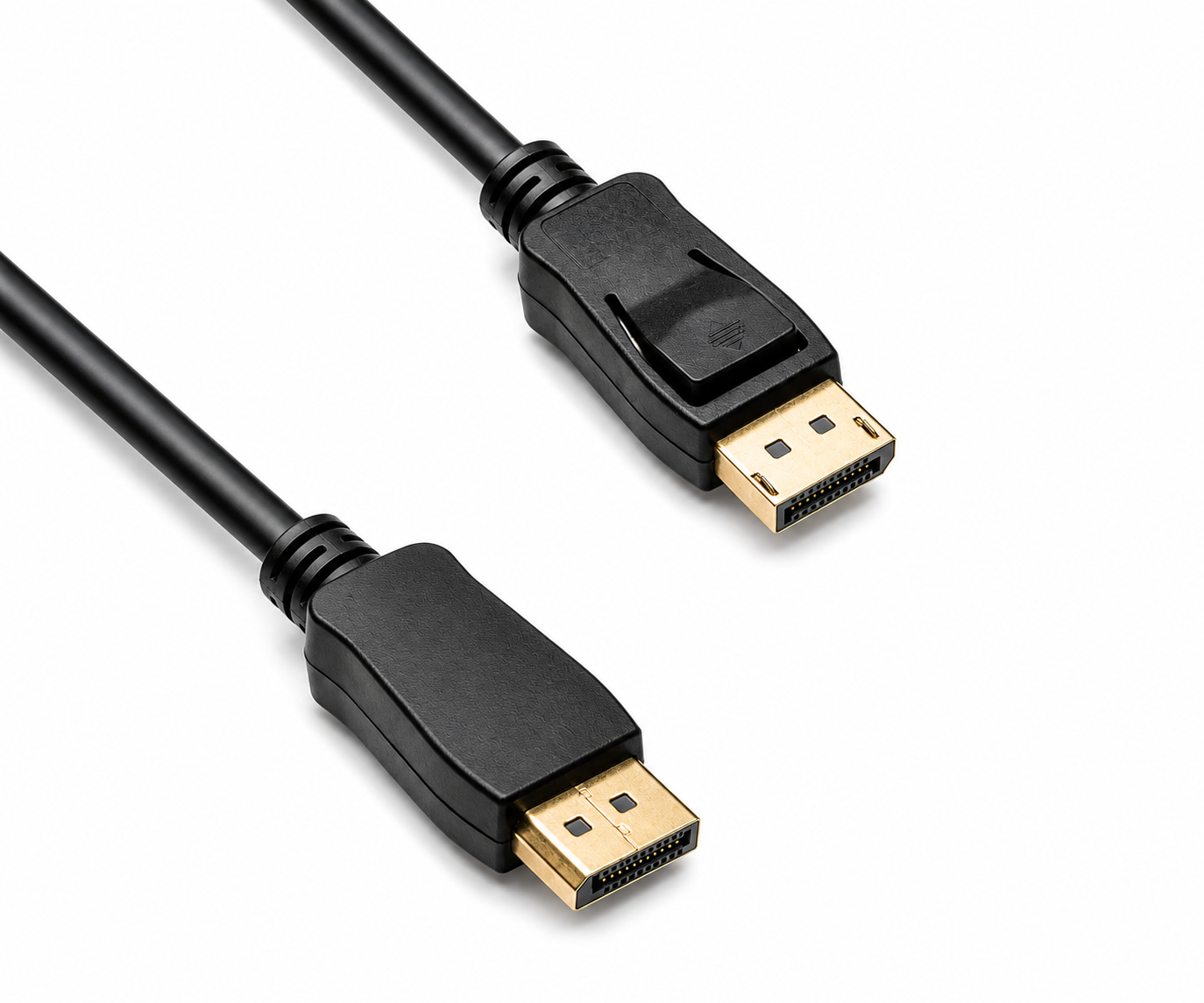

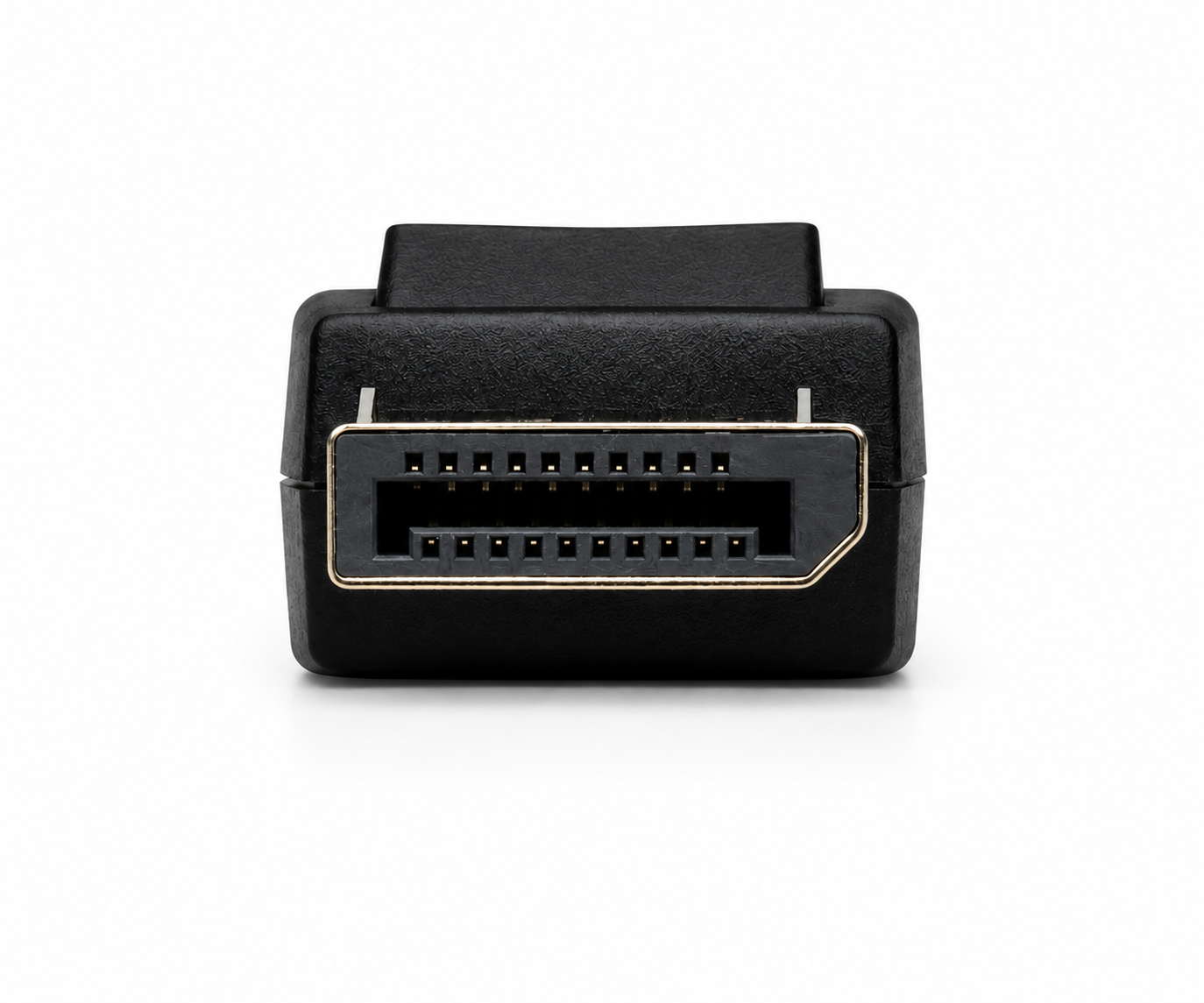

DisplayPort 1.4 cable, 2x DP connectors, 8K, supports 8K/60Hz, 32.4 GBpS, black, DINIC box with Euro hole, 2 m

Quick overview

Advantages

• DisplayPort 1.4 with a maximum data rate of 32.4 Gbit/s
• Video transmission up to a maximum of 8K at 60 Hz, depending on the signal source and end device
• Supports Display Stream Compression 1.2 (DSC) and Forward Error Correction (FEC)
• Supports HDR10 and the Rec. 2020 colour space
• Supports up to 32 audio channels

Product description

The DisplayPort 1.4 cable with two DisplayPort connectors connects DisplayPort-compatible signal sources such as PCs, workstations, docking stations or graphics cards to monitors, displays and professional display systems. The cable is 2.00 m long.

With a maximum data rate of 32.4 Gbit/s, the cable is designed for high-resolution and bandwidth-intensive video transmissions up to a maximum of 8K at 60 Hz. It supports DSC 1.2, FEC, HDR10, Rec. 2020 and up to 32 audio channels. The actual resolution and refresh rate achievable depend on the connected devices and the signal source.

Applications

• System integration and roll-out of workplace and conference technology
• Office IT, control centres and control rooms
• Digital signage and professional display installations
• Data centres and server rooms with KVM or GPU workstations
• AV and media technology in buildings and industrial environments

Technical specifications

Compatibility

Suitable for connecting devices with a DisplayPort interface, including graphics cards, PCs, workstations and docking stations, as well as monitors, projectors and KVM/AV systems. Backwards compatibility within existing DisplayPort set-ups depends on the devices used.

Selection and practical guidance

For transmissions up to 8K at 60 Hz, both the signal source and the display device must also support the required resolution, refresh rate and DisplayPort functionality. The DisplayPort specifications of the connected devices should therefore be checked before use.
