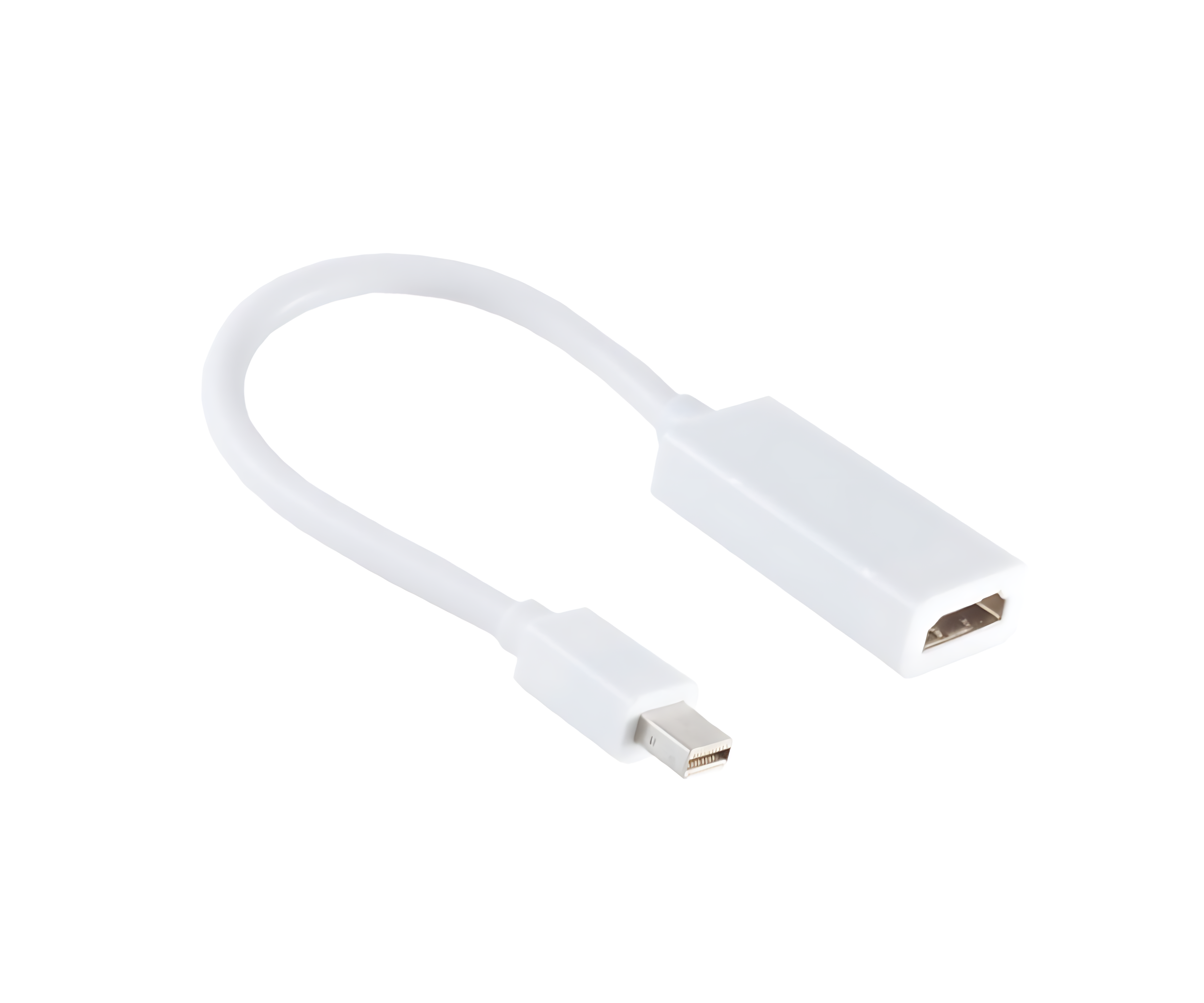

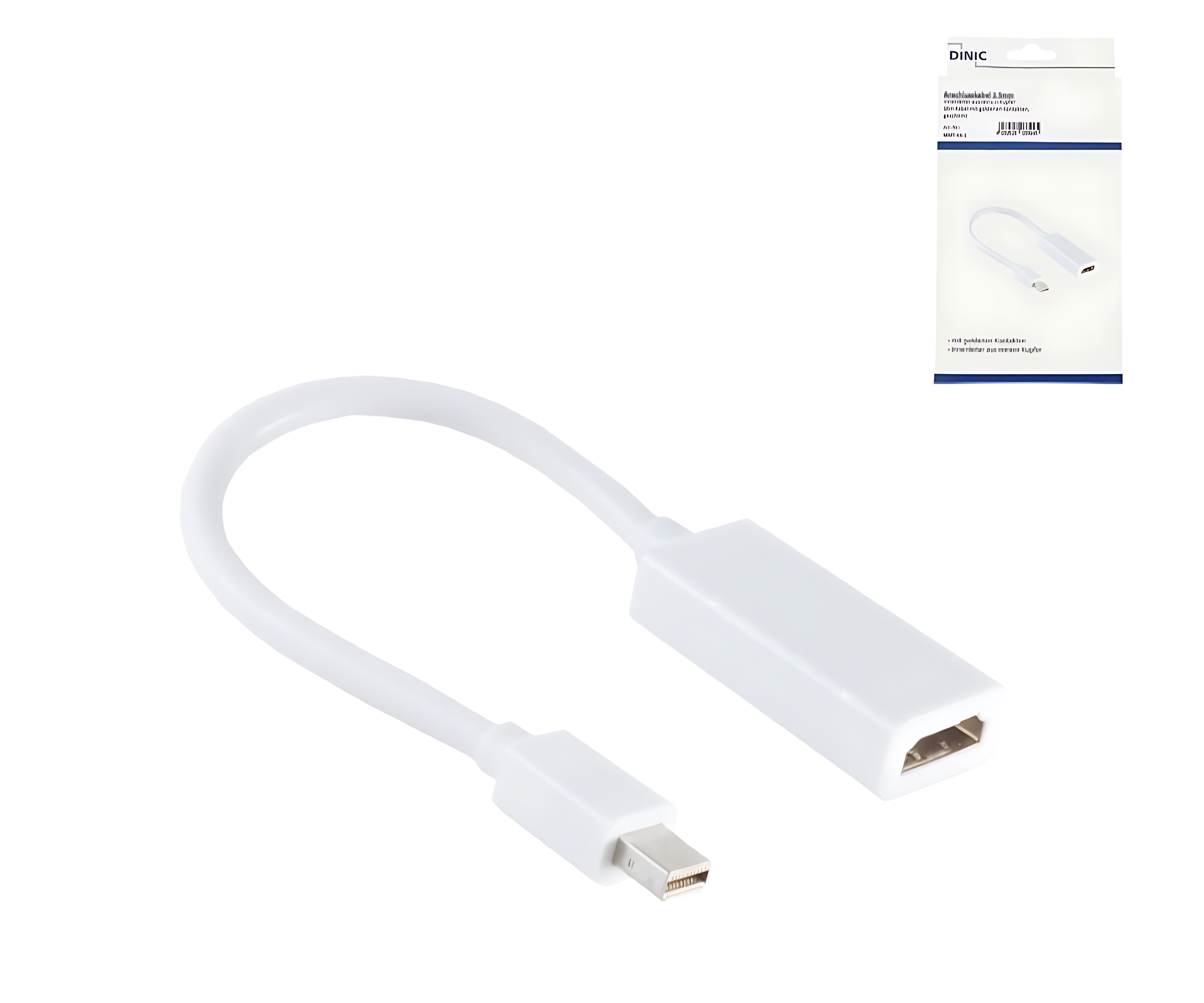

Mini DisplayPort 1.2 to HDMI-A adapter, 0.15 m, 4K 30 Hz, white, DINIC
Short adapter cable for digital video and audio signals from Mini DisplayPort to HDMI Type A.
Quick overview
Mini DisplayPort plug to HDMI Type A socket
DisplayPort 1.2 / HDMI 1.4b
Up to 3840 × 2160 at 30 Hz
approx. 0.15 m
White
MDP-HDMI-KB
Benefits
- Connects Mini DisplayPort signal sources to HDMI-compatible display devices
- Transmission of digital video and audio signals
- Supports 4K2K with 3840 × 2160 pixels at up to 30 Hz
- DisplayPort 1.2 and HDMI 1.4b
- Supports HDCP 1.4
- Compact design with a cable length of approx. 0.15 m to relieve strain on the device connection
- ABS cover with integrated kink protection
Product description
The DINIC Mini DisplayPort 1.2 to HDMI-A adapter connects a signal source with a Mini DisplayPort output to an HDMI-compatible display device. The Mini DisplayPort plug is connected to a laptop, PC or docking station; a separate HDMI cable is connected to the HDMI Type A socket to link to a monitor, TV or projector.
The adapter supports digital video and audio signals as well as resolutions up to 4K2K (3840 × 2160 pixels) at up to 30 Hz. The specified interface standards are DisplayPort 1.2 and HDMI 1.4b. HDCP 1.4 is also supported.
With a length of approx. 0.15 m, this version is particularly suitable for installations where the adapter needs to be positioned close to the device. The short cable length can reduce mechanical stress on the device connection compared to a rigid adapter and makes cable routing easier in confined spaces.
Applications
- Connecting laptops, PCs and docking stations to HDMI monitors
- Conference and presentation technology with HDMI displays or projectors
- Office IT and training rooms
- System integration and device roll-outs
- Service and maintenance environments with temporarily connected HDMI displays
Technical specifications
Compatibility
Source device: Devices with a Mini DisplayPort output, such as a laptop, PC or docking station.
Target device: Monitor, TV or projector with an HDMI Type A input. A separate HDMI cable is required to connect the adapter’s HDMI socket to the display device.
Selection and practical advice
Before making your selection, you should check whether the signal source has a Mini DisplayPort output and the display device has an HDMI Type A input.
For 4K applications, the maximum refresh rate of this adapter is specified as up to 30 Hz at 3840 × 2160. For applications with higher 4K refresh rates, a connection designed for this purpose is therefore required.
FAQ
The adapter has a Mini DisplayPort plug on the source side and an HDMI Type A socket on the output side.
Resolutions up to 4K2K or 3840 × 2160 pixels at up to 30 Hz are supported.
The adapter is specified as supporting DisplayPort version 1.2 and HDMI version 1.4b. HDCP 1.4 is also supported.
Yes. The adapter is designed to transmit digital video and audio signals between Mini DisplayPort and HDMI.
It is approximately 0.15 m long. The short cable version is suitable for compact installations and short adapter runs.
DINIC is a trademark of MAG GmbH.
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
