Technical highlights

• 1x SCART socket (input) for analogue video and audio signals
• 1x HDMI socket (output) with resolutions up to 1080p@60Hz
• Supported SCART input formats: PAL, NTSC 3.58, SECAM, NTSC 4.43, PAL-M, PAL-N
• Multiple HDMI output resolutions: 720p, 1080p and common PC resolutions (e.g. 800x600, 1024x768, 1280x1024)
• 5V power supply included, cable length of power adapter approx. 1.10 m
• DINIC box with Euro hole - ideal for warehousing, counters and system logistics
• Suitable for integrating older SCART sources into HDMI-based TV/monitor and presentation systems
• Compact design for use in cabinets, racks and media technology installations

Description

The DINIC SCART-HDMI adapter converts analogue video and audio signals from a SCART source device into a digital HDMI signal. This allows older devices with SCART output to be reliably connected to modern displays, monitors, televisions or other HDMI-capable components in professional environments.

The converter supports a wide range of TV standards (PAL, NTSC, SECAM and PAL-M/PAL-N) and provides the signals with adjustable HDMI resolutions up to 1080p@60Hz. By supporting common PC formats such as 800x600, 1024x768 and 1280x1024, the device can be flexibly integrated into presentation and monitor environments.

The external 5V power supply unit with a cable length of approx. 1.10 m allows flexible positioning of the converter in cabinets, racks or behind displays. The robust design is designed for long-term use in a professional environment, e.g. in service, workshops, media technology, system integration and AV infrastructure.

Delivery in the DINIC box with Euro hole facilitates storage, order picking and placement in sales or service centres.

Areas of application

• Connection of older SCART source devices to HDMI monitors, TVs and projectors
• AV installations in conference rooms, training and presentation environments
• Service and repair stations for video/DVD recorders, set-top boxes and similar devices
• Integrating retro sources (e.g. older receivers, players) into digital signage or info displays
• Retrofitting existing TV/SAT installations to HDMI signal routing

Technical data

Part number	SCART-HDMI-KB
Designation	SCART-HDMI adapter, analogue video and audio to HDMI up to 1080p@60Hz

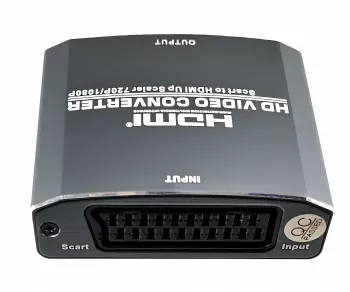

Input	1x SCART socket (analogue video and audio)

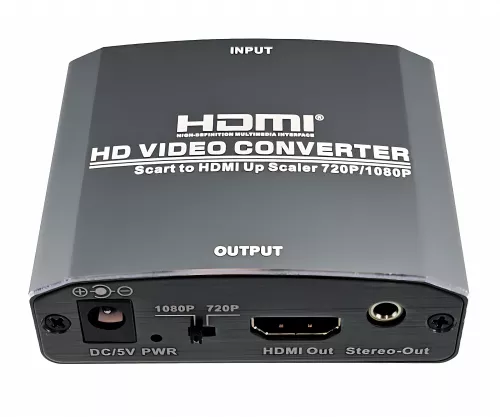

Output	1x HDMI socket (digital AV signal)
SCART input formats	PAL, NTSC 3.58, SECAM, NTSC 4.43, PAL-M, PAL-N
HDMI output resolutions	720p@50/60Hz, 1080p@50/60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz
Max. Resolution	1080p@60Hz
Power supply	5 V DC via external power supply unit (included)
Cable length of mains adapter	approx. 1.10 m

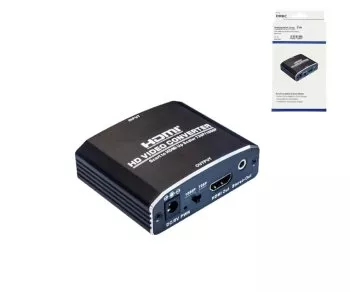

Packaging	DINIC box with Euro hole
EAN CODE	4032528039541
weight	approx. 0.189 kg per piece

Compatibility

The converter is used to connect SCART source devices with display or AV devices that have an HDMI input.

• For devices with SCART output (e.g. DVD players, video recorders, set-top boxes, older receivers)
• Connection to monitors, TVs, projectors and other professional displays with HDMI input
• Use in TV/SAT installations and media technology systems

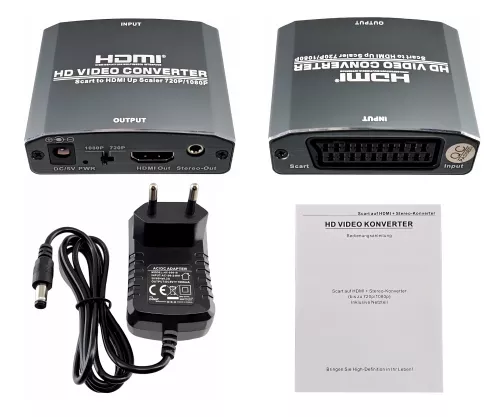

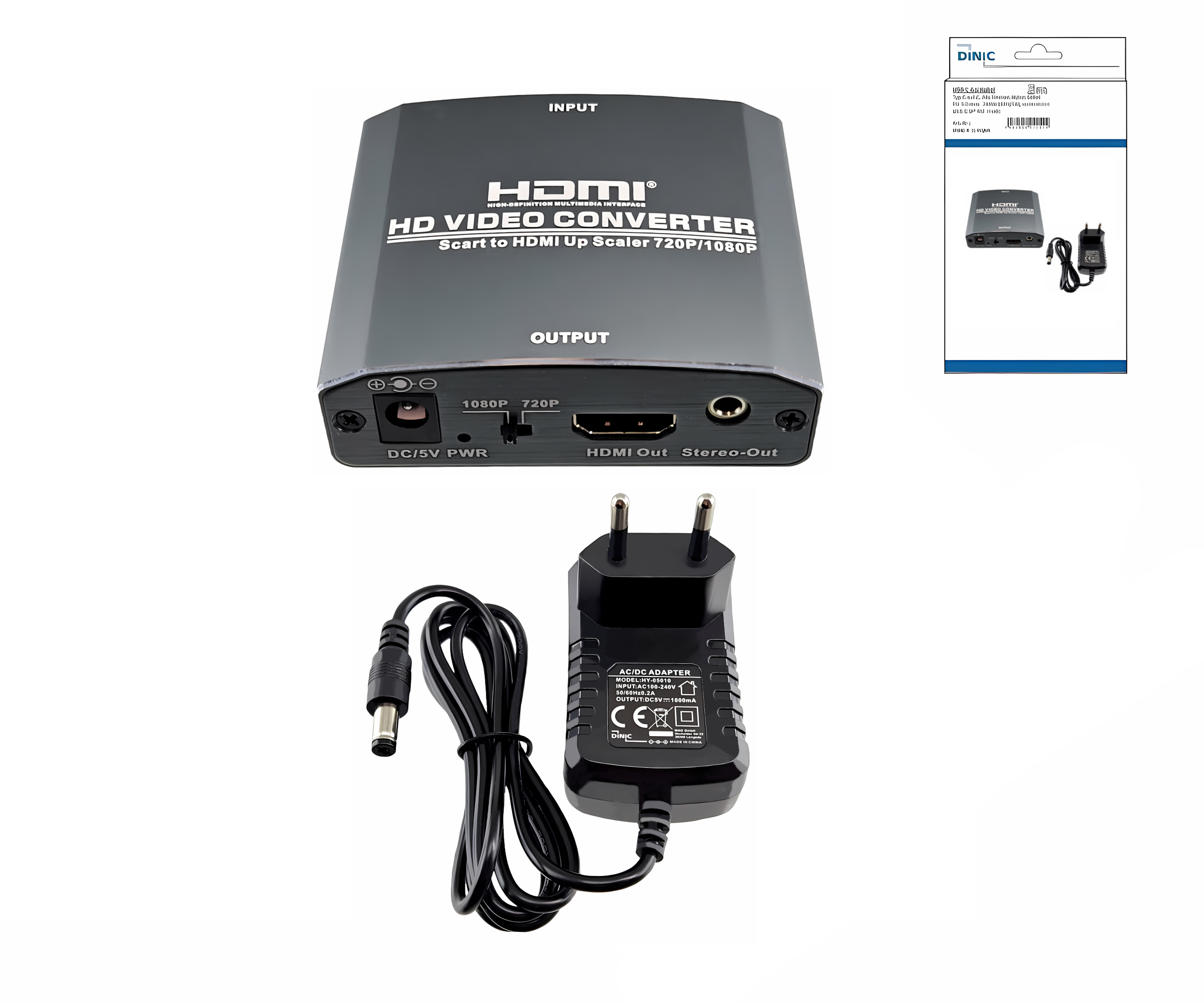

Scope of delivery

• 1x DINIC SCART-to-HDMI converter
• 1x 5V power supply unit, cable length approx. 1.10 m
• 1x quick start guide
• Packaging: DINIC box with Euro hole

SCART to HDMI adapter, analogue to digital video audio converter, 1080p@60Hz, DINIC, TV/SAT, SCART socket to HDMI socket.

Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de

Safety Information:
Use only under direct adult supervision
