Technical highlights

• SCART plug (21-pin) to 3x RCA plug (composite video + stereo audio L/R)
• Integrated IN/OUT switch for selectable signal direction (bidirectional)
• Cable length 2 m for flexible positioning of source and target device
• Suitable for the transmission of composite video and analogue stereo audio signals
• Universal connection cable between SCART interfaces and RCA connections
• Packaged in DINIC box with Euro hole - ideal for storage, counters and sales walls

Description

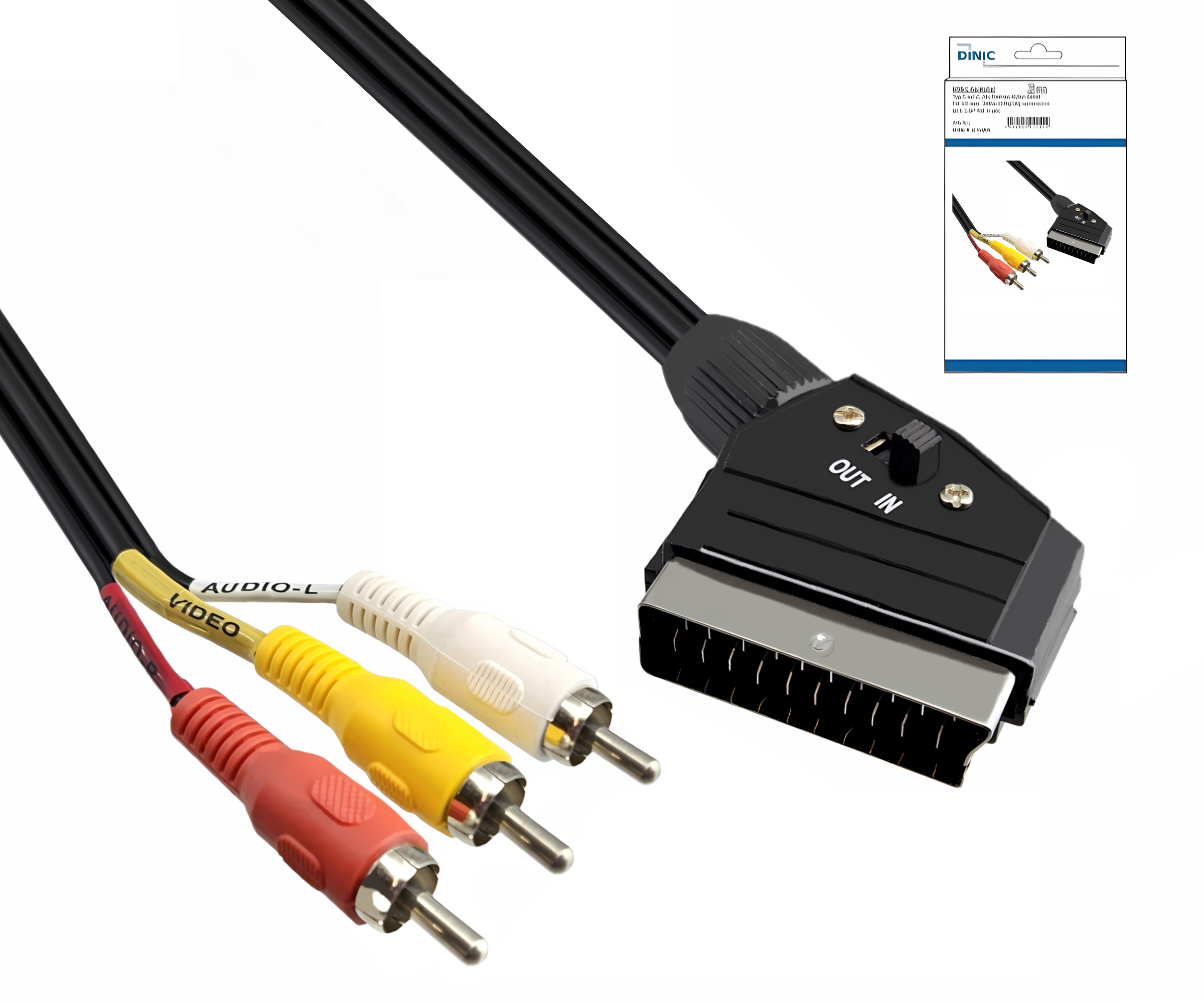

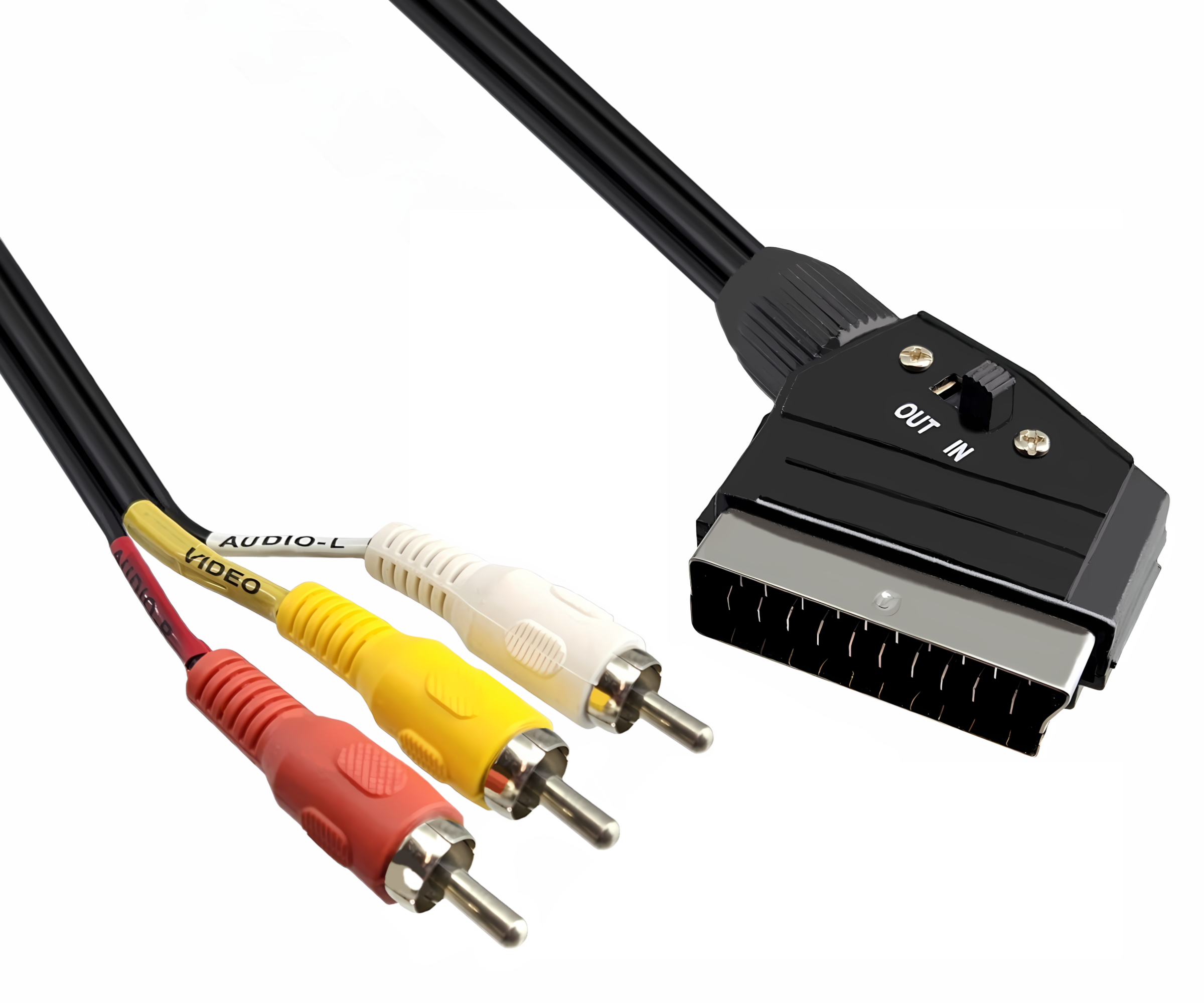

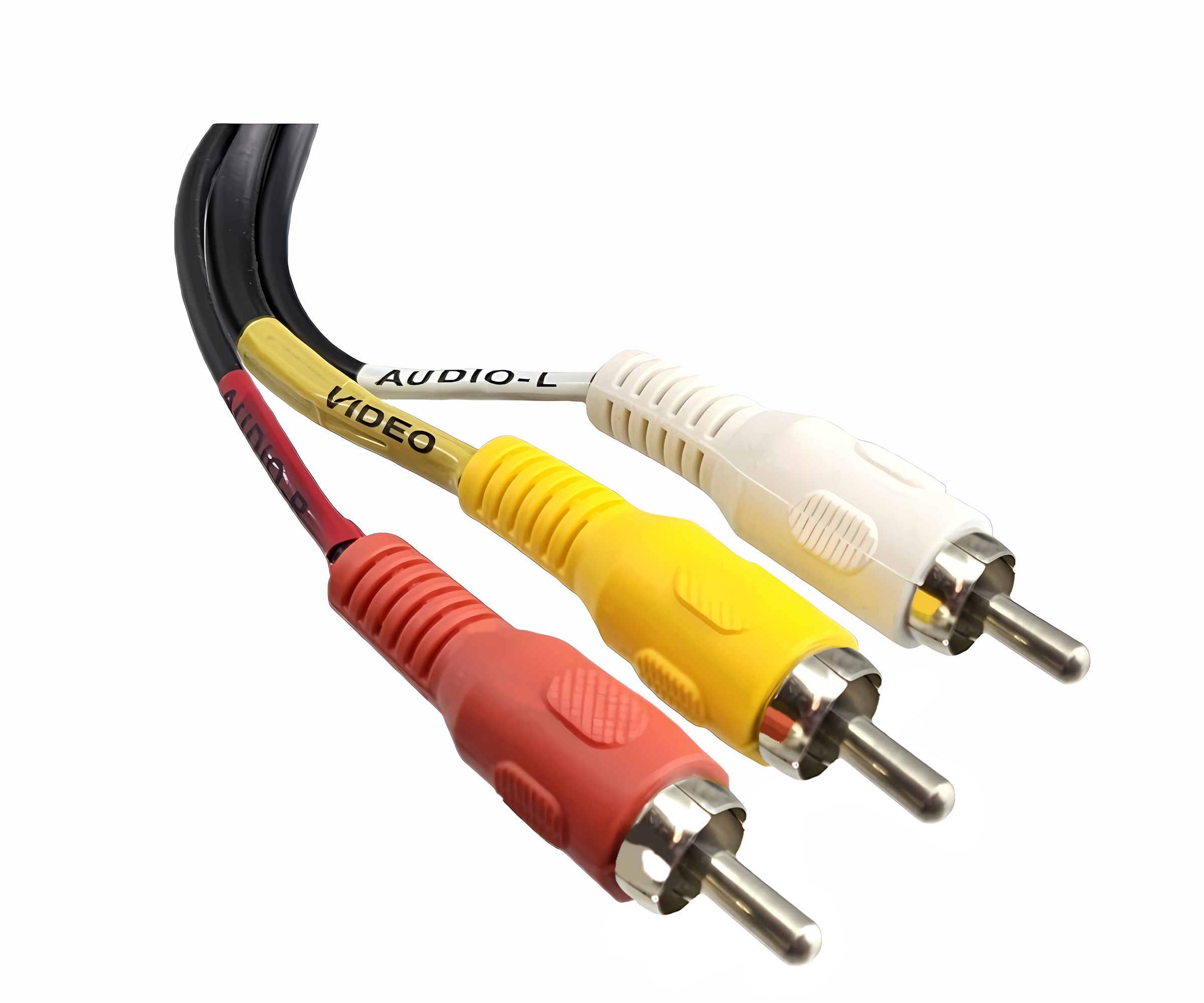

The DINIC SCART to RCA cable connects devices with a SCART interface to components that have separate RCA connections for composite video and stereo audio. The typical signal combination is a yellow RCA plug for video and a red and white RCA plug for the left and right audio signals.

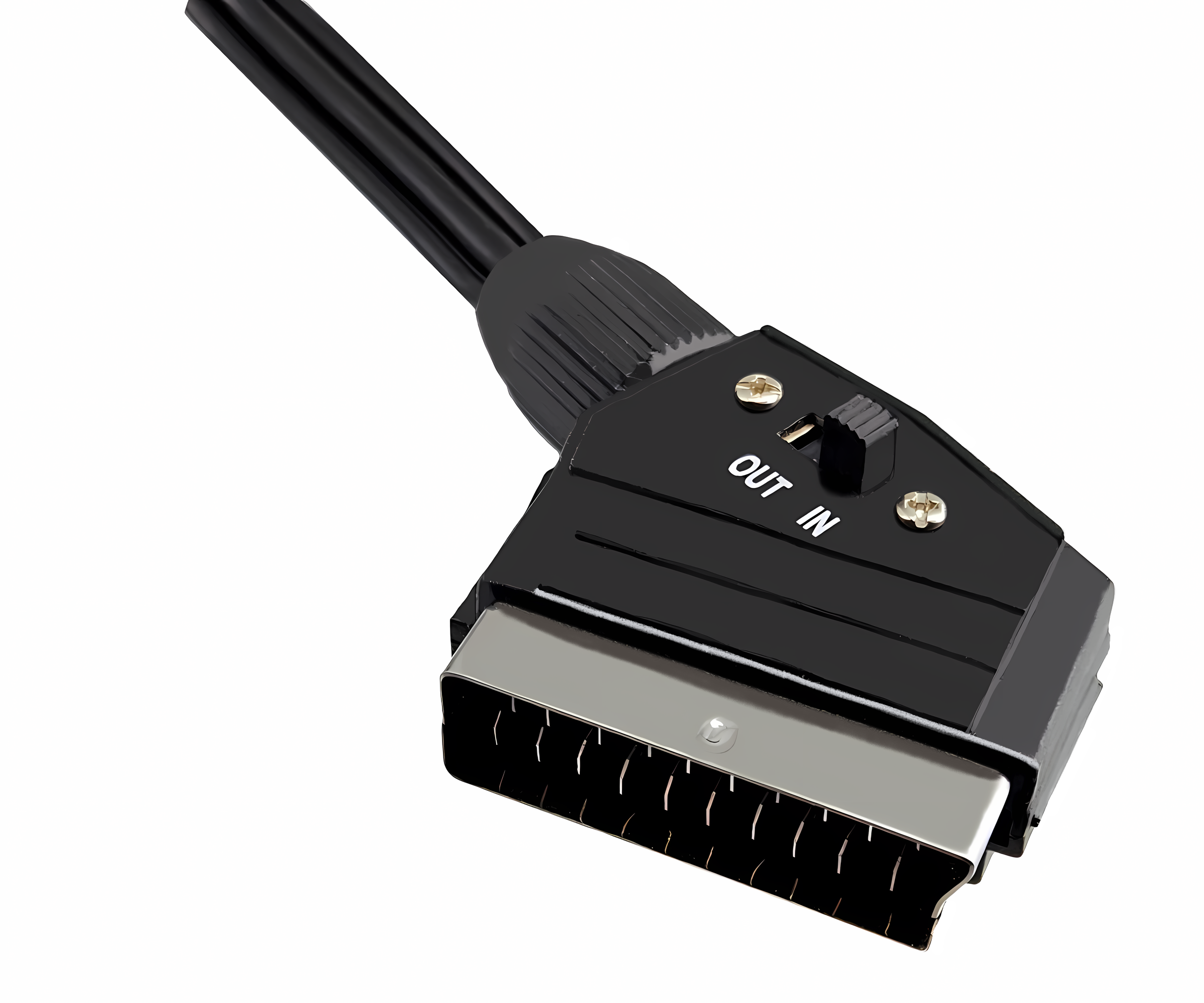

The integrated IN/OUT switch allows the signal direction to be selected as required. This means that the cable can be used both to feed an RCA signal into a SCART device and to output a SCART signal to RCA inputs. This facilitates flexible use in service, workshops and for temporary test or presentation set-ups.

The cable length of 2 metres offers sufficient reserve for neat installation behind devices, in racks or TV furniture without creating unnecessary cable lengths in the system. Delivery in the sturdy DINIC box with Euro hole enables space-saving and organised storage as well as clear presentation in specialist stores.

Areas of application

• TV/SAT installations with devices that still have SCART interfaces
• Service, maintenance and repair of set-top boxes, DVD players, video recorders and monitors
• Temporary test and measurement set-ups in workshops, laboratories and service environments
• Integration of older AV devices into modern environments with cinch inputs or outputs
• Presentation and training technology, e.g. connecting players to displays/recorders

Technical data

Characteristic	Value
Item number	SCART-RGB-2-KB
Product description	SCART to 3x RCA audio video cable, 2 m
Connector type side 1	SCART plug, 21-pin
Connector type on side 2	3x RCA plug (video + stereo audio L/R)
Signal type	Composite video, analogue stereo audio
Signal direction	switchable IN/OUT (bidirectional)
Cable length	2 m
Category	SCART cable & adapter for TV, DVD and video
Packaging	DINIC box with Euro hole
EAN	4032528040233

Compatibility

Designed for devices with SCART connection and components with cinch interfaces for composite video and stereo audio. Typical device and interface combinations:

• SCART connections on TV sets, receivers, DVD players, video recorders
• RCA video inputs/outputs on monitors, recorders, converters or grabbers
• Connection of SCART players to cinch inputs of distributors or recording devices

Scope of delivery

• 1x DINIC SCART to 3x RCA cable, 2 m, with IN/OUT switch
• Packaging: DINIC box with Euro hole

DINIC is a MAG GmbH brand for professional connection technology.

Keywords: SCART to RCA cable 2 m, 3x RCA plug, IN/OUT switch, TV/SAT SCART, DINIC audio-video cable.
