DINIC scart plug with IN/OUT switch, 3x cinch socket and 4-pin mini DIN socket

Technical highlights

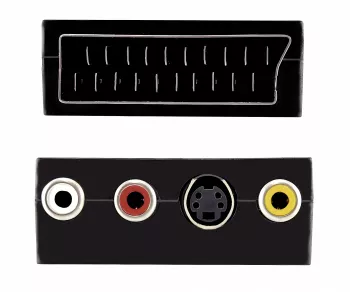

• SCART plug to 3x RCA socket (audio L/R, video) and 4-pin mini-DIN socket (S-Video)
• Integrated IN/OUT switch for selecting the signal direction on the adapter
• Suitable for transferring analogue audio and video signals between AV devices
• Compact adapter design, ideal for retrofitting and service applications
• Typical use in TV, SAT and video applications with SCART interface

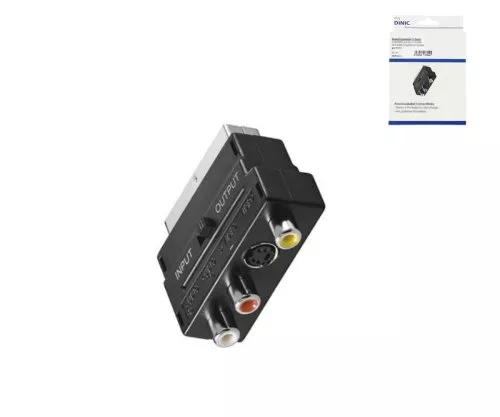

• Packaged in DINIC box with Euro hole for counter and wall display
• Article number SCART-RGB-KB, EAN 4032528038438

description

The DINIC SCART plug with IN/OUT switch serves as a universal AV adapter for devices with a 21-pin SCART socket and analogue cinch or S-Video connections. Audio and video signals are routed via the SCART plug either to the TV set or from a SCART device to a recording or converter device.

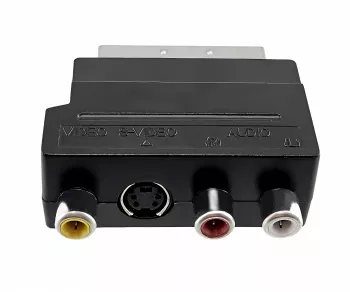

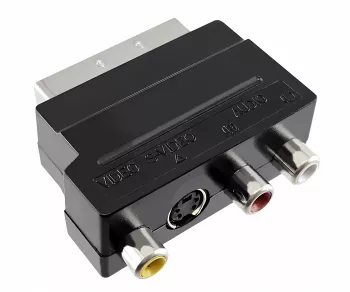

On the adapter side, there are 3 RCA sockets for composite video and stereo audio and a 4-pin mini DIN socket for S-Video. This makes the adapter particularly suitable for connecting DVD players, set-top boxes, games consoles, video recorders or converters to SCART equipment.

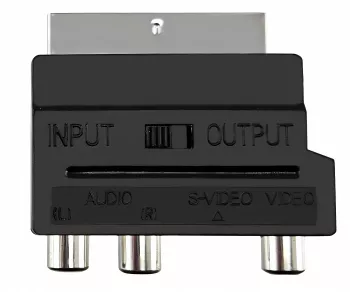

The integrated IN/OUT switch makes it easy to adjust the signal direction directly on the adapter. This reduces rewiring work and facilitates flexible use in service, test set-ups and temporary installations.

Areas of application

• TV and SAT installation in specialised trade and building technology
• Service and repair workshops for TV, video and hi-fi devices
• Connection of DVD players, set-top boxes, games consoles and video recorders
• Connection of AV converters, grabbers or monitors with cinch/S-video interface
• Temporary test and measurement set-ups in the AV and system integration environment

Technical data

Article description	DINIC scart plug with IN/OUT switch, 3x cinch socket and 4-pin mini DIN socket
Article number	SCART-RGB-KB

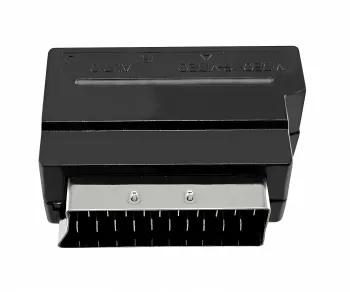

Connection A	SCART plug, 21-pin
Connection B	3x RCA socket (video, audio L/R) and 4-pin mini-DIN socket (S-Video)
Signal direction	Switchable IN/OUT via mechanical switch on the adapter
Signal type	Analogue audio and video signals (composite video, optional S-video)
Category	TV / SAT, SCART adapter
Packaging	DINIC box with Euro hole
Weight per piece	approx. 0.048 kg
EAN CODE	4032528038438

Compatibility

• Devices with 21-pin SCART socket (TV, recorders, set-top boxes, older games consoles)
• AV sources and sinks with RCA connections for composite video and stereo audio
• Devices with 4-pin mini-DIN connection (S-Video), depending on the device configuration
• Converters, grabbers and interfaces for analogue AV signals in the TV and SAT environment

Scope of delivery

1x DINIC scart plug with IN/OUT switch, 3x RCA socket and 4-pin mini DIN socket, packed in DINIC box with Euro hole.

DINIC is a brand of MAG GmbH.
