DINIC IEC 60320-C20 flush-mounted socket for screw fixing, 16 A, 250 V~, bulk packaging

Main page » Products » Electricity » IEC 60320 flush-mounted sockets » DINIC IEC 60320-C20 flush-mounted socket for screw fixing, 16 A, 250 V~, bulk packaging

Preview: DINIC IEC 60320-C20 Einbaubuchse zum Schrauben, 16 A, 250 V~, Bulk Verpackung

DINIC IEC 60320-C20 flush-mounted socket for screw fixing, 16 A, 250 V~, bulk packaging

Mobile Preview: DINIC IEC 60320-C20 Einbaubuchse zum Schrauben, 16 A, 250 V~, Bulk Verpackung

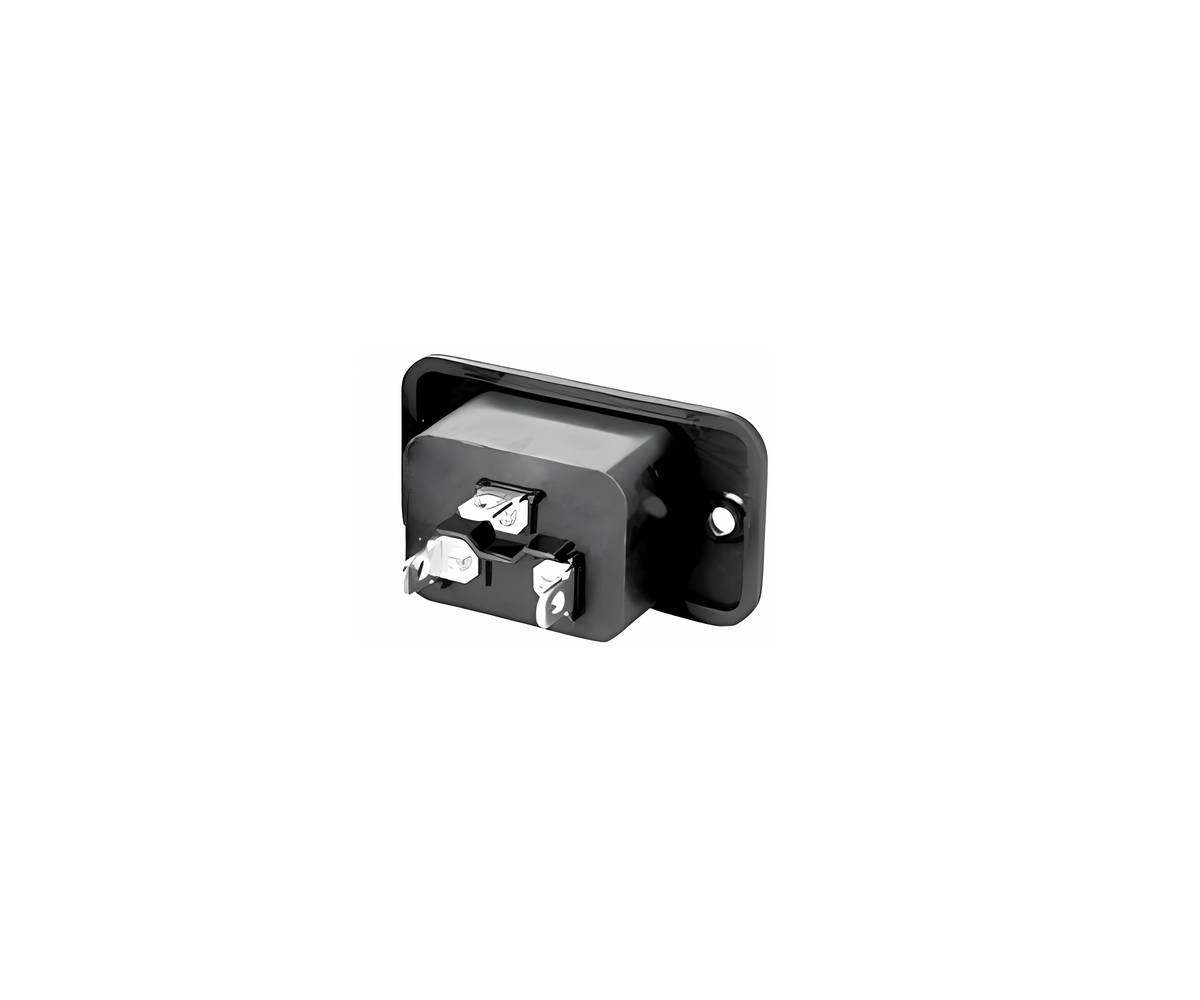

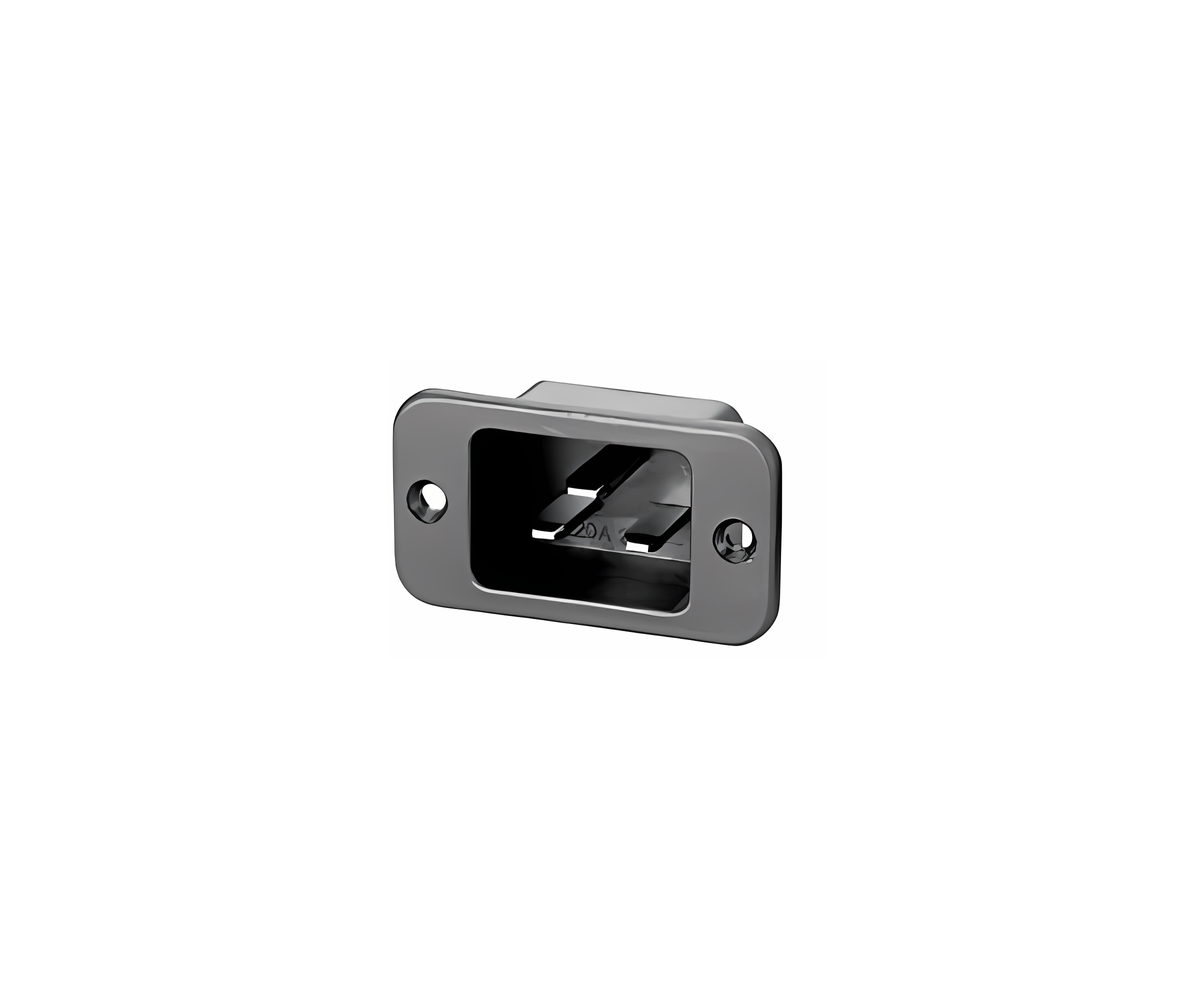

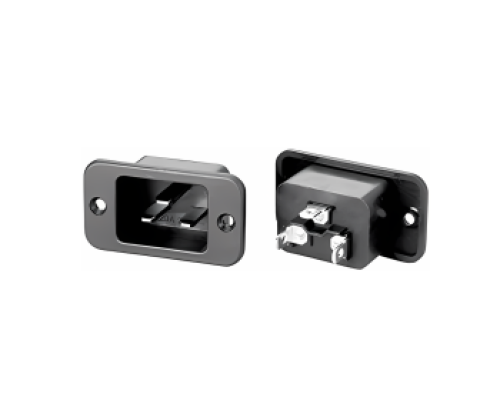

IEC 60320-C20 flush-mounted socket for screw fixing, 16 A, 250 V~

DINIC C20 flush-mounted socket for permanent installation in equipment via screw mounting, with a rated current of 16 A and a rated voltage of 250 V~.

Quick overview

Brand: DINIC

Item number: CBH-E-C20

EAN: 4032528045030

Product type: IEC 60320-C20 flush-mounted socket

Installation: Screw-mounted

Rated values: 16 A / 250 V~

Terminals: L, N, PE

Packaging: Bulk packaging

Advantages

IEC 60320-C20 interface for permanent installation in appliances, assemblies and enclosures.
Screw mounting for secure fixing in suitable appliance fronts.
Electrical rating of 16 A and 250 V~ for suitable appliance inputs.
Clearly defined pin assignment with L, N and PE.
Housing made from PA66 GF3 thermoplastic in accordance with product specifications.

Product description

The IEC 60320-C20 screw-mounted socket is designed for permanent installation in equipment and serves as a C20 equipment inlet in accordance with IEC 60320. With a rated current of 16 A, a rated voltage of 250 V~ and terminals for L, N and PE, the flush-mounted socket is suitable for technically compatible power supply, equipment and enclosure applications.

For purchasing, system integration, service and equipment manufacturing, the unique item number CBH-E-C20, the EAN 4032528045030, the screw-fixing method and the specified installation dimensions are particularly relevant. The product is supplied in bulk packaging.

Typical applications

Equipment installation in power supply and power unit assemblies
Electrical assemblies and enclosures with a C20 mounting interface
Industrial, test and service technology
Technical equipment front panels with screw fastening

Technical data

Brand

DINIC

Item number

CBH-E-C20

EAN

4032528045030

Product type

C20 cold-terminal socket, flush-mounted socket

Standard

IEC 60320 C20

Mounting type

Screw mounting

Rated current

16 A

Rated voltage

250 V~

Connections

L (phase), N (neutral), PE (protective earth)

Housing material

Thermoplastic, PA66 GF3

Front dimensions

53.3 x 30 mm

Mounting spacing

42.5 mm

Installation depth

21.3 mm

Packaging type

Bulk packaging

Compatibility

Suitable for devices, assemblies and enclosures with a designated C20 mounting interface in accordance with IEC 60320, as well as a suitable mounting cut-out and electrical rating of 16 A / 250 V~.

Selection and practical guidance

Before purchasing, the front face dimension, mounting spacing and installation depth should be checked against the existing enclosure. In addition, the rated current, rated voltage and pin assignment must match the electrical rating of the device.

Frequently asked questions

Is the socket intended for permanent installation?

Yes, the C20 socket is designed as a flush-mounted socket for screw mounting.

What are the electrical specifications of the flush-mounted socket?

The flush-mounted socket is rated at 16 A and 250 V~.

What connections are available?

There are terminals for L, N and PE.

What are the specified installation dimensions?

The specified dimensions are a front dimension of 53.3 x 30 mm, a mounting spacing of 42.5 mm and an installation depth of 21.3 mm.

How is the item supplied?

It is supplied in bulk packaging.

Contents

1 x IEC 60320-C20 flush-mounted socket for screw fixing
