C13 to C14 power cable, extension lead, 1 mm², multiple approvals: VDE/UL/CCC/KTL/SAA/PSE, black, length 5.00 m

Quick overview

Advantages

• IEC 60320-C13 socket to IEC 60320-C14 plug for extending existing power connections for IT equipment
• 5.00 m cable length for greater distances between the power distribution point and the end device
• 3-core cable with 3×1.0 mm² conductor cross-section and 10 A rated current
• Multiple approvals: VDE-ENEC10, cUL, PSE, SAA, KC, CCC and UKCA
• A cable range for a variety of international project requirements
• The multi-approval series can help to reduce the number of cable variants, part numbers and procurement effort
• Multi-standard cable types H05VV-F, SJT and HVCTF depending on the standards system and target market
• Bulk supply without individual packaging for project requirements, bulk procurement, roll-outs and structured stockpiling

Germany / Europe

VDE-ENEC10

USA / Canada

cUL

China

CCC

South Korea

KC

Japan

PSE

Australia / New Zealand

SAA

United Kingdom

UKCA

The markets shown are used to categorise existing approvals and markings. The requirements of the respective target market and the specific application must be checked separately.

Product description

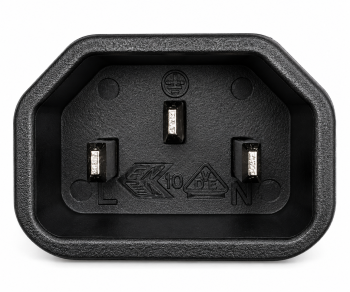

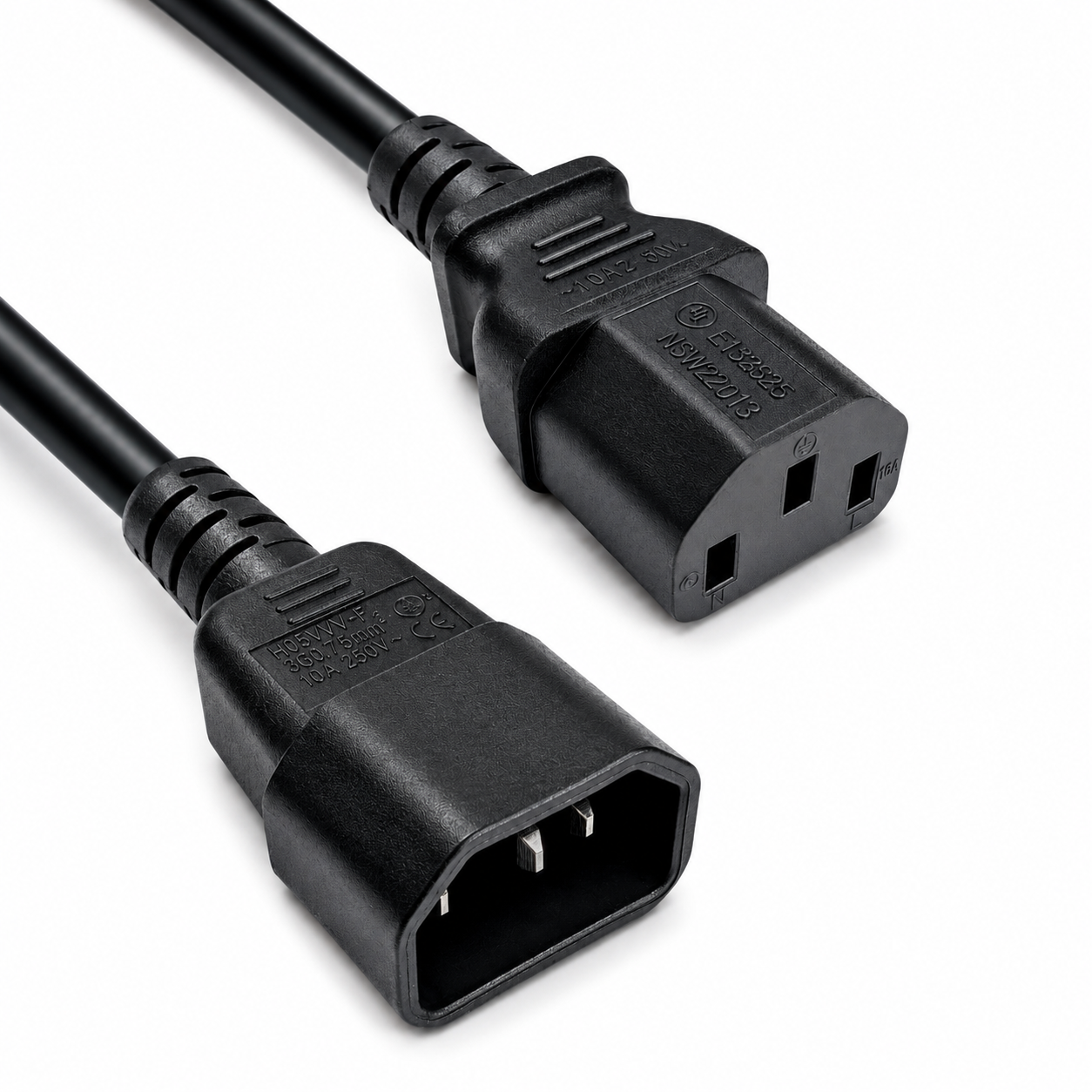

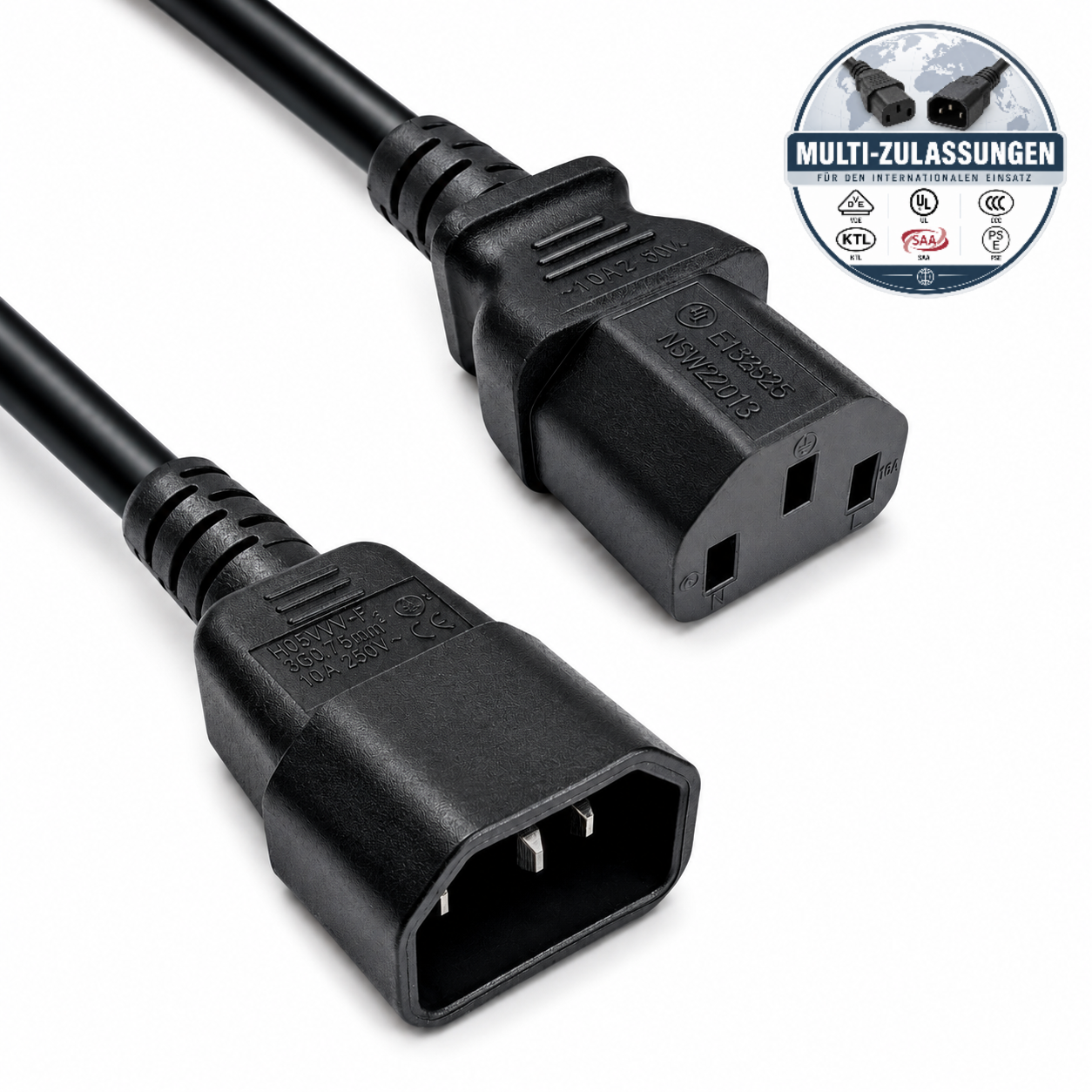

The DINIC C13 to C14 extension cable is a 5.00 m long IEC 60320 extension cable for professional power connections. The cable features an IEC 60320 C14 plug and an IEC 60320 C13 socket and is designed to extend existing power connections for IT equipment.

With a cable length of 5.00 m, this model is particularly suitable for installations where larger distances between a PDU, UPS, power distribution unit or existing connection cable and the end device need to be bridged. Typical environments include server cabinets, plant rooms, equipment rooms and professional IT and industrial installations.

The conductor cross-section is 3×1.0 mm², and the rated current is 10 A. Depending on the standards system or target market, the multi-standard version uses cable types such as H05VV-F, SJT or HVCTF. The combination of multiple international approvals and markings supports its use in appropriately planned export, OEM, infrastructure and roll-out projects.

Typical applications

• Server and network cabinets with greater distances to the power distribution point
• Equipment cabling close to PDUs and UPSs with suitable IEC 60320 connectors
• Servers, storage systems, switches, power supplies and professional IT hardware
• Technical rooms and equipment centres
• System integration, equipment manufacturing, industry and automation
• Measurement, control and test technology
• International series production, export, roll-out and project procurement

Technical specifications

The cable is suitable for devices with an IEC 60320 C14 socket, as well as for extending existing IEC power connections with a matching C13 plug. Typical applications include servers, storage systems, switches, power supplies, professional IT hardware, and PDU and UPS environments.

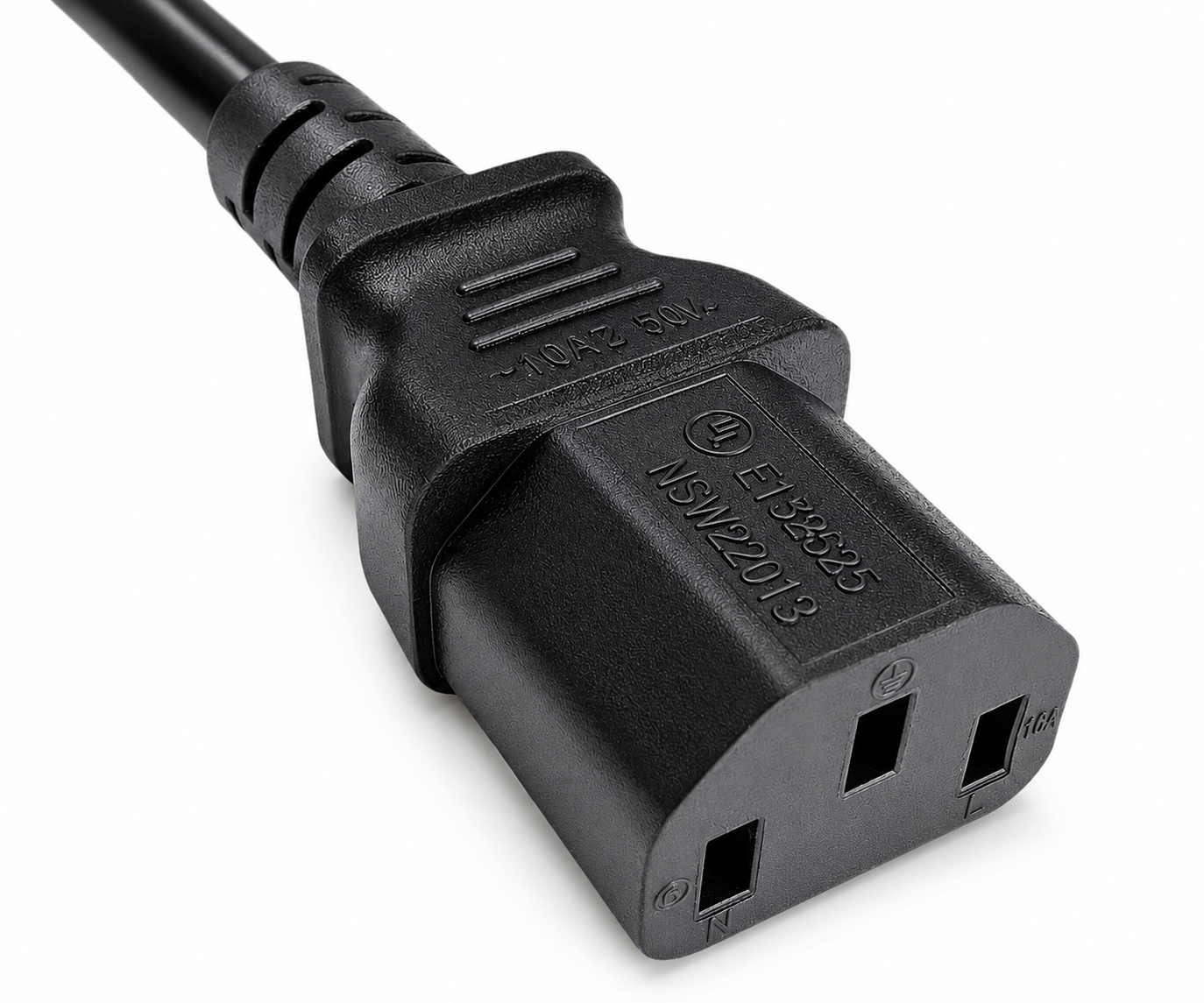

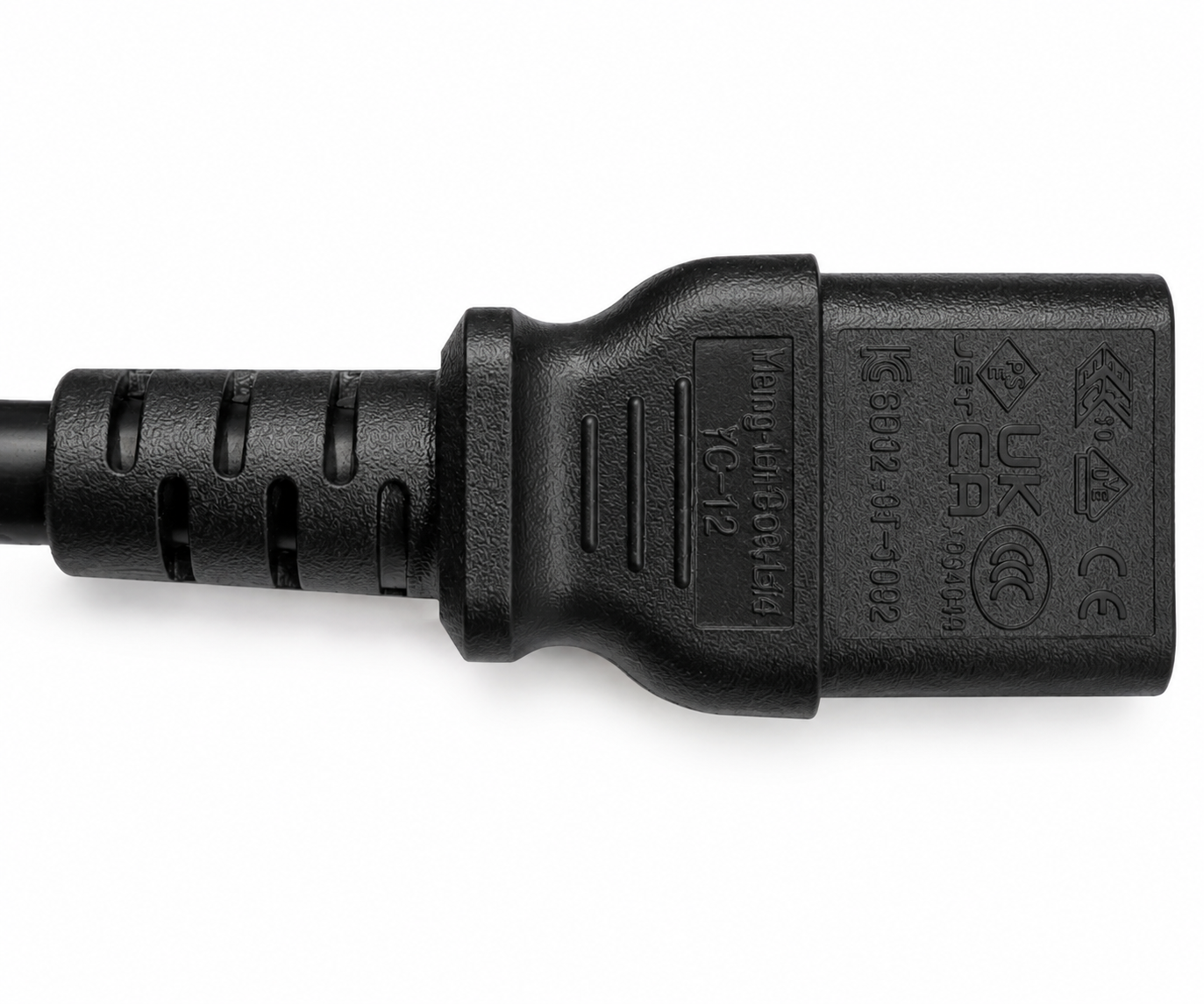

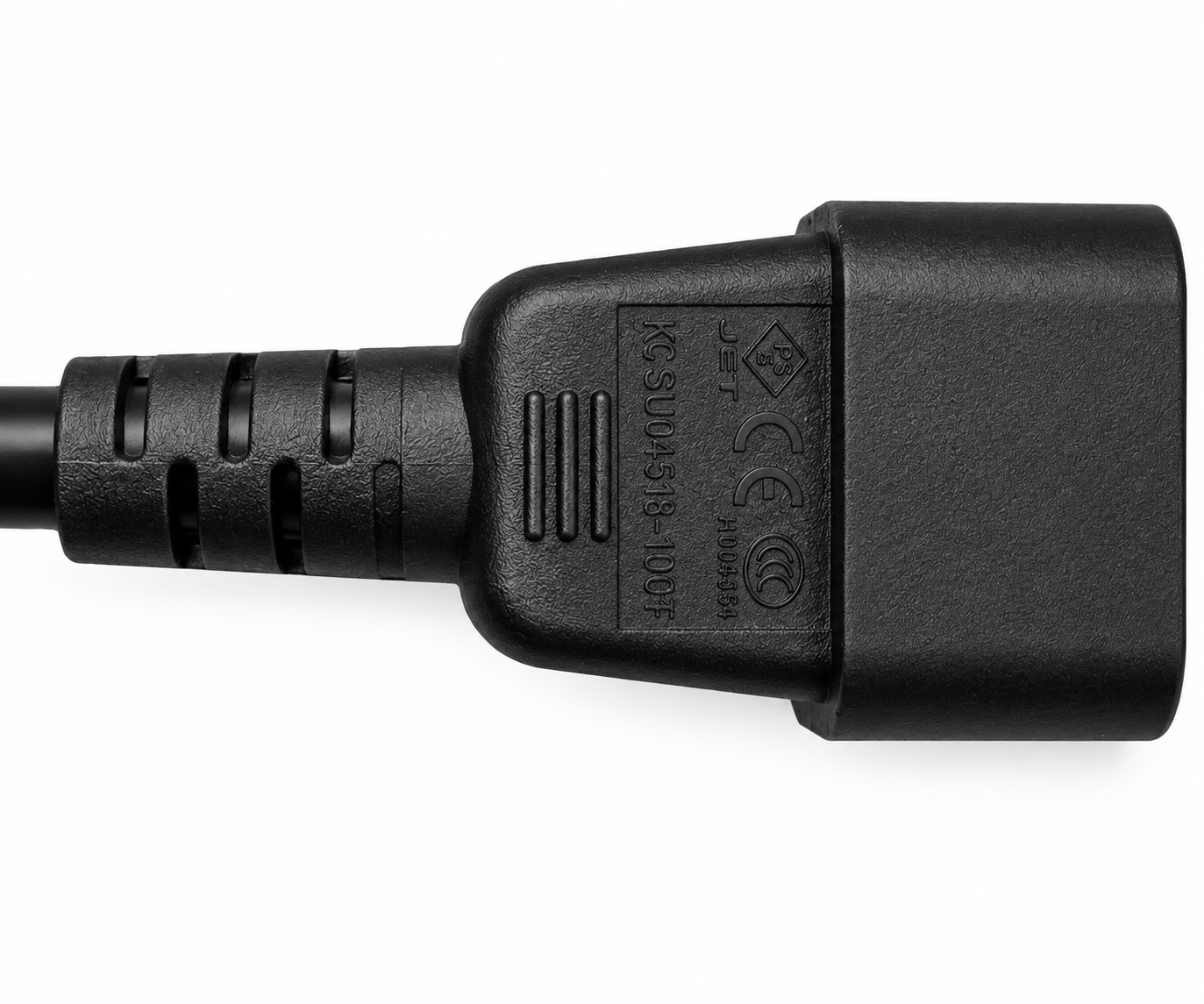

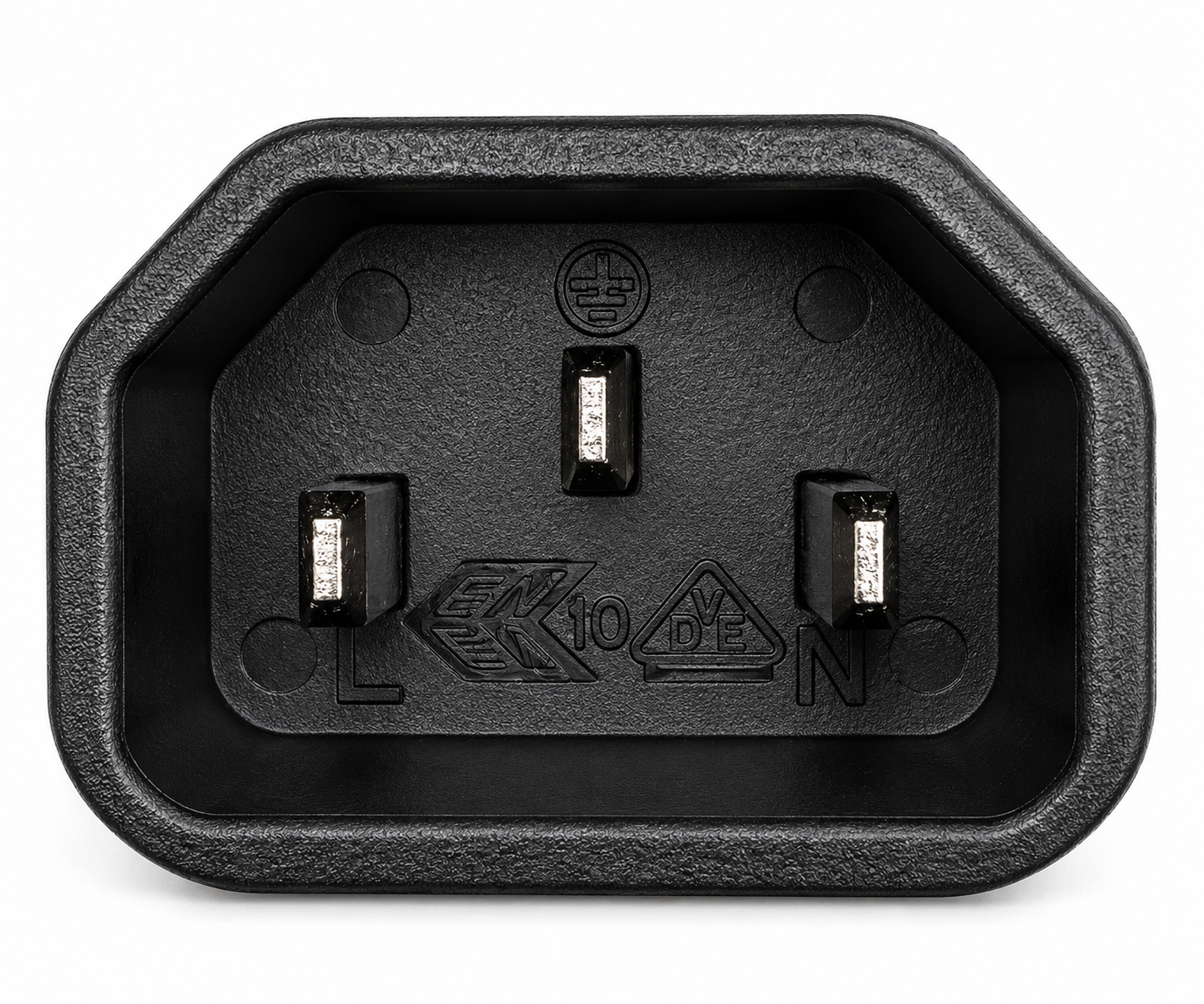

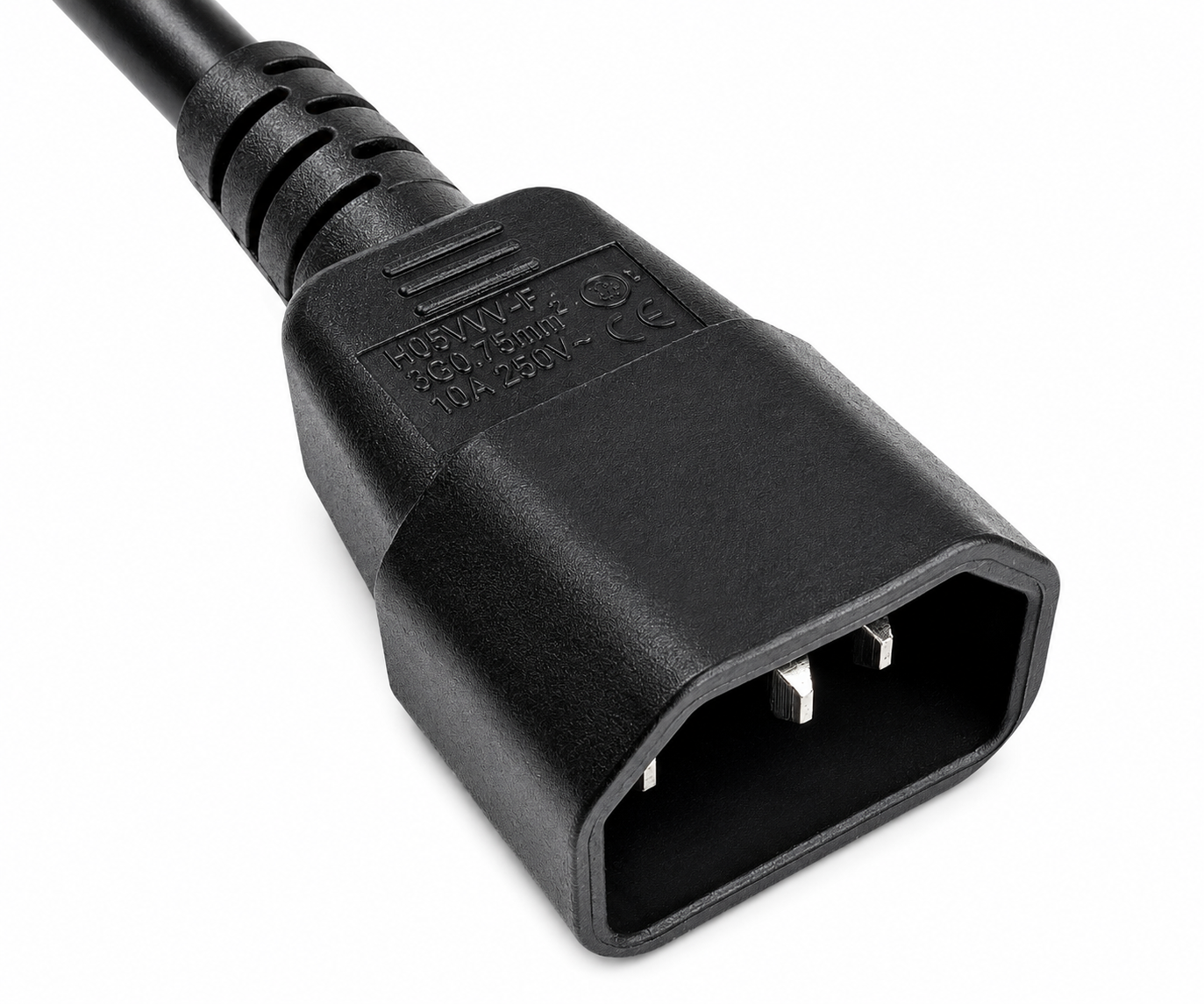

C13 and C14 refer to different connectors. On this extension cable, the C14 plug is on the power supply side and the C13 socket is on the equipment side. Before purchasing, the connector type, rated current and requirements of the entire power path should be checked.

The length of 5.00 m is particularly suitable for applications where 1, 2 or 3 m is insufficient. It offers significantly greater flexibility for larger server cabinets, technical rooms, equipment parks and installations with components that are further apart.

For longer cable runs, avoid unnecessary cable slack and ensure the cable is laid neatly. When selecting a product, particular attention should be paid to the connection direction, conductor cross-section, rated current and the requirements of the entire power path.

The same multi-approval product range also includes versions measuring 1.00 m, 2.00 m and 3.00 m. View all C13-to-C14 IT extension cables with multi-approvals.

1× DINIC power extension cable, IEC 60320 C13 to C14, 5.00 m, black, bulk
