HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, green, DINIC polybag, length 5m
.png "HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, green, DINIC polybag, length 5m")

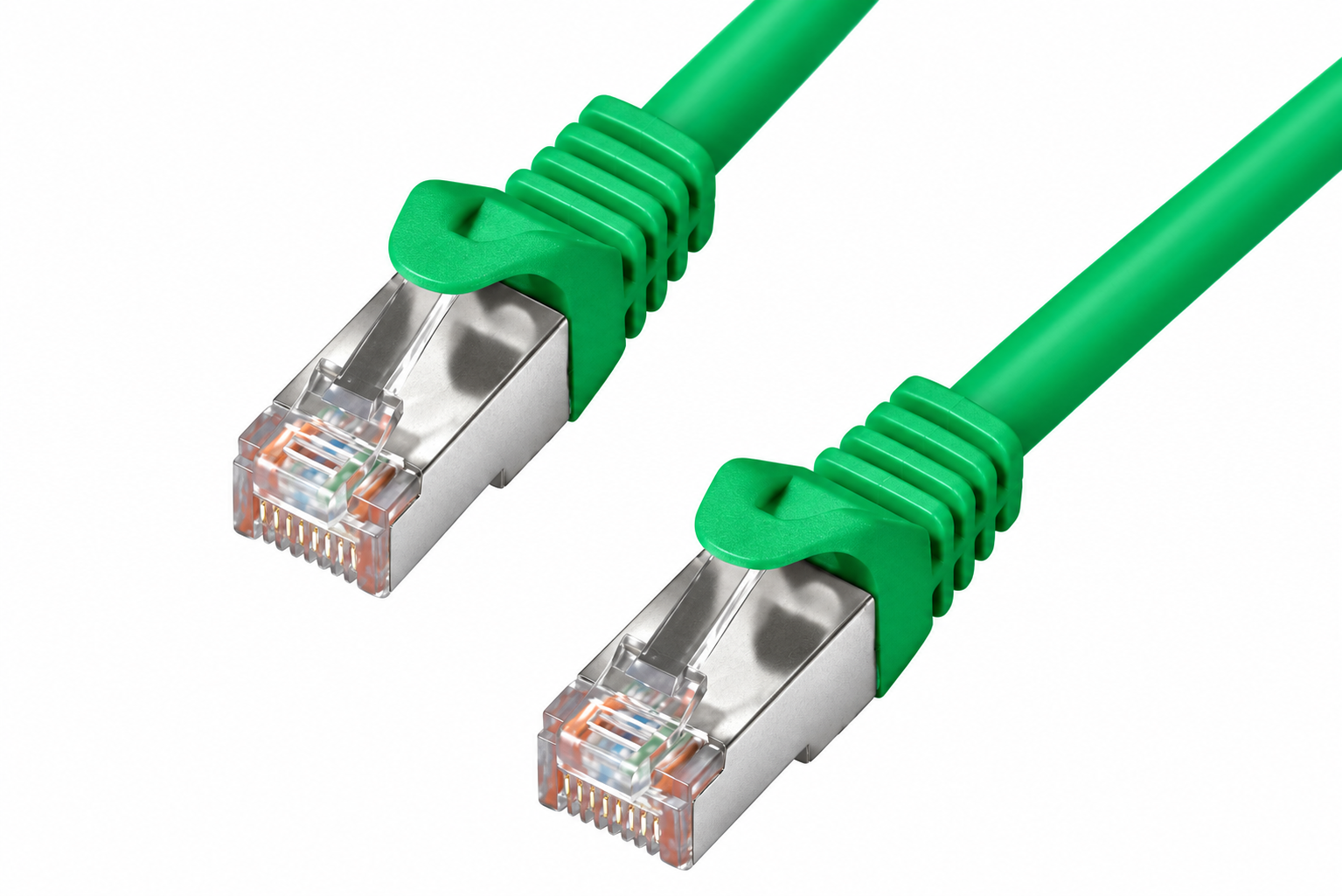

HQ Cat.6 patch cable PiMF/S-FTP - RJ45 to RJ45, 5.0 m, LSZH, AWG27, green
Double-shielded solid copper patch cable (250 MHz) with moulded connectors, latching nose protection and length marking.
Technical highlights
- Cat.6 patch cable for structured cabling and Gigabit Ethernet applications
- Shielding: PiMF (wire pair in metal foil) + S/FTP (overall foil + braided shield) for high interference immunity
- Conductor: CU/solid copper strands, cross-section AWG27
- Plug: 2× RJ45 (moulded), gold-plated contacts
- Moulded bend protection with strain relief and latching lug protection (protection of the RJ45 lug)
- 1:1 assignment in accordance with EIA/TIA-568B
- Sheath material: LSZH (low-smoke, halogen-free) - suitable for professional building and IT installations
- Colour: green; Length: 5.0 m; Packaging: DINIC polybag (Eurohole)
Description: green
This HQ Cat.6 patch cable is designed for professional use in network infrastructures. The solid copper strand construction (AWG27) ensures stable electrical properties in the patch panel and device connection, while the double shielding (PiMF + S/FTP) effectively protects the transmission against external interference.
The moulded RJ45 plugs with gold-plated contacts are designed for long-term mating cycles. The moulded bend protection with strain relief reduces mechanical stress at the transition point, and the snap-in lug protection protects the RJ45 lug in tight patch situations. A length indication directly on the plug supports quick assignment in the rack and in the floor cabling.
The LSZH jacket material (low-smoke, halogen-free) is suitable for practical installations in buildings where reduced smoke and corrosive gas development is required.
Areas of application
- Patch panel and switch connections in data centres and server rooms
- Network cabling in control cabinet construction and industrial automation (EMC-loaded environments)
- Building technology, floor distributors, structured LAN cabling
- System integration in specialised trade: rollout/service, device and workstation connection
Technical data
| Product type | Patch cable Cat.6 (Ethernet) |
| Connection A / B | RJ45 plug / RJ45 plug (moulded) |
| Contact surface | gold-plated |
| Assignment | 1:1 according to EIA/TIA-568B |
| Conductor | CU/solid copper strands |
| Conductor cross-section | AWG27 |
| Shielding | PiMF (wire pairs in metal foil) + S/FTP (foil + braided shield) |
| Frequency | 250 MHz |
| Jacket material | LSZH (low-smoke, halogen-free) |
| colour | green colour |
| Cable length | 5,0 m |
| Mechanical features | Kink protection with strain relief, locking lug protection, length indication on plug |
| Packaging | DINIC polybag with Euro hole (approx. 152 × 273 mm) |
| Article number | C6N-5-GU |
| EAN CODE | 4032528023403 |
| weight | approx. 0.21 kg / piece |
Compatibility
- For active network components and end devices with RJ45 Ethernet port (e.g. switch, router, patch panel, network socket, server, PC, IP telephony, camera systems)
- Suitable for Cat.6 cabling routes and patch applications up to 250 MHz (depending on installation and overall concept)
Scope of delivery
1× HQ Cat.6 patch cable RJ45-RJ45, 5.0 m, green, individually in DINIC polybag (Eurohole).
