HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, green, DINIC polybag, length 1m
.png "HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, green, DINIC polybag, length 1m")

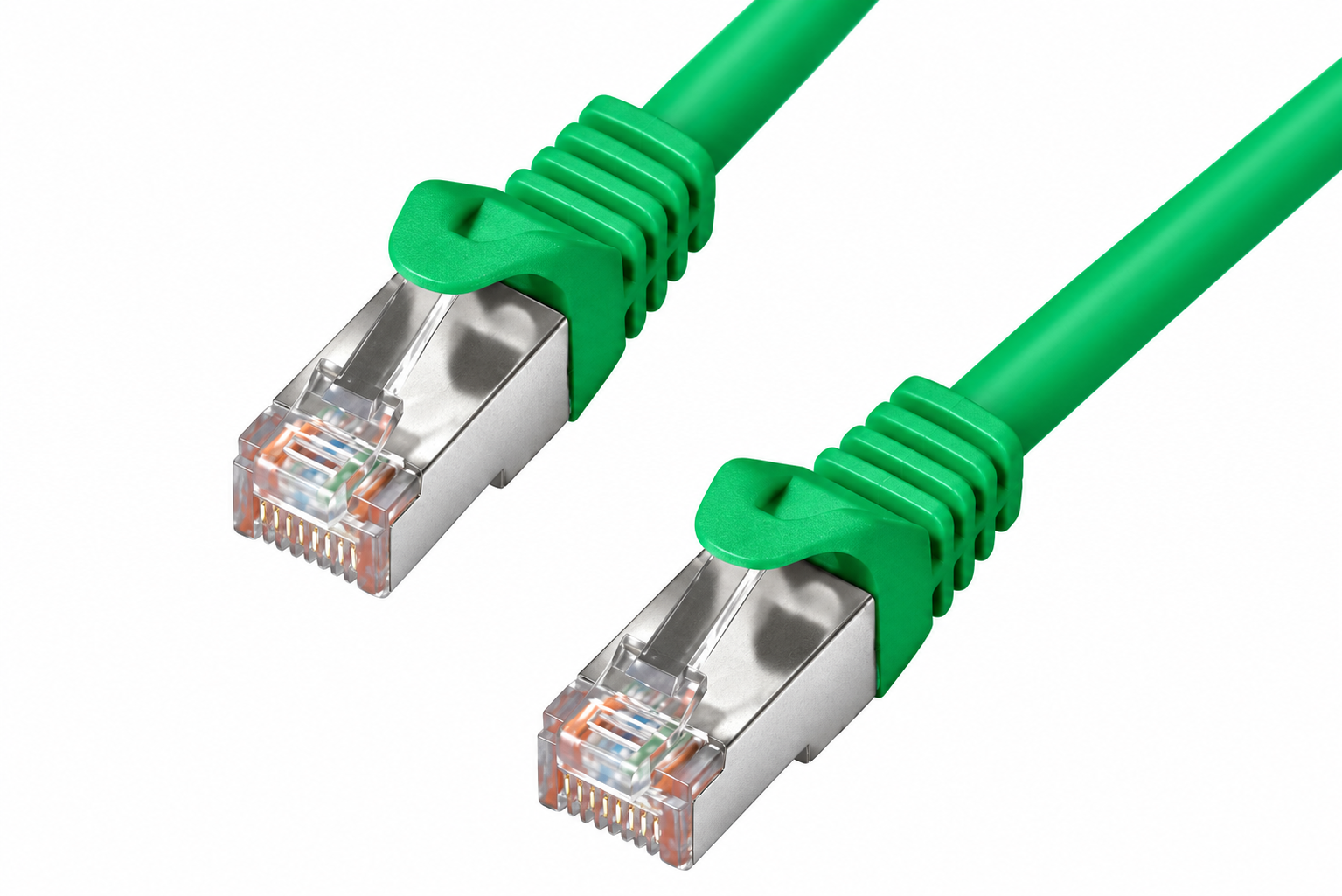

HQ Cat.6 patch cable PiMF/S-FTP, 1 m, LSZH, CU, AWG27 - green
Double-shielded Cat.6 patch cable with solid copper strands and halogen-free LSZH sheath for professional network installations.
Technical highlights
- Category 6, bandwidth up to 250 MHz - suitable for Gigabit Ethernet and structured copper links
- Shielding: PiMF (foil in pairs) + S/FTP (overall shielding foil + braiding) for high EMC robustness
- Conductor: AWG27 solid copper strands (CU) - stable transmission and low attenuation in the patch area
- Plug: 2× RJ45 (8P8C) moulded, gold-plated contacts
- Moulded bend protection with strain relief and snap-in protection (snagless) to reduce failures during patching operations
- Length labelling directly on the connector for quick identification in the patch panel
- Sheath material: LSZH (low-smoke, halogen-free) - suitable for installation-critical areas
- Colour: green - practical colour coding for segmentation/assignment
Description: green
The HQ Cat.6 patch cable is designed for use in professional copper networks. The construction with solid copper strands (AWG27) supports reliable signal transmission in the patch and patching area - especially with high port density in patch panels, switches and distributors.
The double shielding (PiMF/S-FTP) reduces interference from external sources of interference and minimises crosstalk between wire pairs. This makes the cable suitable for environments with increased EMC requirements, e.g. in control cabinet environments or in technical rooms with parallel power cables.
Moulded RJ45 plugs with moulded kink protection, integrated strain relief and latching lug protection increase the mechanical resilience in daily operation. The length indication on the plug simplifies documentation and maintenance in the field.
Areas of application
- Patch panel switch connections in office IT and building cabling
- Data centre/server room (top-of-rack, end-of-row, patch zones)
- System integration and network rollouts in the specialised trade/project business
- Industry-related IT/OT transitions and technical rooms with increased interference load
- Service and maintenance sets (colour/length coding for quick assignment)
Technical data
| Product type | Patch cable (twisted pair) |
| Category / Bandwidth | Cat.6 / up to 250 MHz |
| Connectors | 2× RJ45 (8P8C), moulded, gold-plated contacts |
| Assignment | 1:1 according to EIA/TIA 568B |
| Conductor | AWG27, solid copper strands (CU) |
| Number of cores / pairs | 8 cores / 4 pairs |
| Shielding | PiMF (pairs in metal foil) + S/FTP (overall shield foil + braid), double shielded |
| Jacket material | LSZH (low-smoke, halogen-free) |
| Kink protection / strain relief | moulded, with strain relief; additional latching lug protection |
| colour | green colour |
| length | 1 m |
| Packaging | DINIC polybag with Euro hole |
| article number | C6N-1-GU |
Compatibility
- For active network components with RJ45 port (switch, router, firewall, patch panel, access point, IP telephony)
- Suitable for structured copper cabling at Cat. 6 level (depending on component and route)
Scope of delivery
1× HQ Cat.6 patch cable PiMF/S-FTP, 1 m, green (DINIC polybag).
DINIC is a brand of MAG GmbH - developed for professional use in IT and installation environments.
Keywords: DINIC HQ Cat.6 patch cable, RJ45-RJ45, PiMF/S-FTP, LSZH, AWG27 solid copper, 1m, green, double shielded
