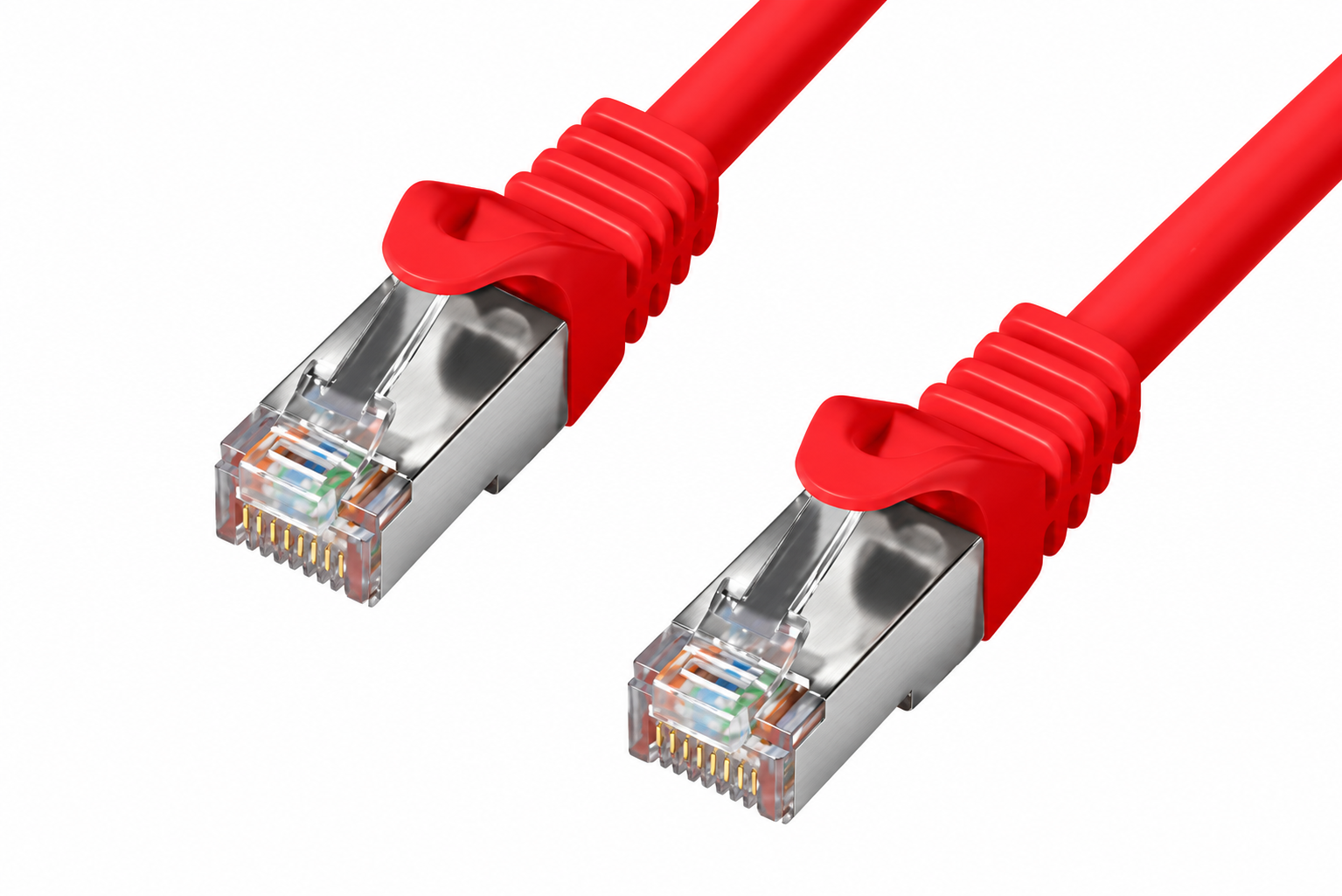

HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, red, DINIC polybag, length 10m
.png "HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, red, DINIC polybag, length 10m")
HQ Cat.6 patch cable PiMF/S-FTP - 10 m, LSZH, Cu, AWG27, red
Double-shielded Cat.6 patch cable for Gigabit Ethernet, halogen-free sheath, solid copper strands.
Technical highlights
- Plug connector: 2× RJ45, moulded; gold-plated contacts
- Moulded bend protection with strain relief and latching lug protection
- Length specification directly on the plug (quick identification in the patch panel)
- Assignment: 1:1 according to EIA/TIA 568B
- Conductor: AWG 27, copper/solid copper strands
- Shielding: PiMF (wire pairs in metal foil) + S/FTP (foil + braided shield), double shielded
- Frequency: 250 MHz; Category: Cat.6
- Jacket: LSZH (low-smoke, halogen-free); Colour: red; Length: 10 m
Cable description
This HQ Cat.6 patch cable is designed for structured copper cabling in professional environments. The construction with solid copper strands (AWG27) supports stable transmission paths in the patch area and is designed for operation in typical network topologies (e.g. switch-patch panel end device).
The combination of PiMF (paired foil shielding) and S/FTP (additional overall shielding of foil and braiding) reduces interference in shield-critical installations. Moulded RJ45 plugs with gold-plated contacts and moulded bend protection with strain relief increase mechanical operational reliability with frequent reconnection.
Practical detail for rack and patch panel operation: the length is indicated directly on the plug; the locking lug protection supports low-interference service access in densely occupied patch panels.
Areas of application
- Control cabinet and distributor construction (network components in the industrial sector)
- Server room / data centre (patch panel and switch cabling)
- Building technology and structured network cabling (floor distributors, technical rooms)
- System integration, specialist trade and service (colour coding of cables, maintenance/relocation)
- Office IT and peripherals (workplace connection, VoIP, network printers)
Technical data
| Article number | C6N-10-RO |
| EAN CODE | 4032528023069 |
| Connector type | 2× RJ45 (moulded), gold-plated contacts |
| Assignment | 1:1 according to EIA/TIA 568B |
| Category / Frequency | Cat.6 / 250 MHz |
| Conductor | AWG 27, copper/solid copper strands |
| Shielding | PiMF (pair in metal foil) + S/FTP (foil + braided shield), double shielded |
| Jacket material | LSZH (low-smoke, halogen-free) |
| Colour: Red | Red colour |
| Cable length | 10,00 m |
| Kink protection / protection | Moulded, with strain relief; snap-in protection |
| Packaging | DINIC polybag with Euro hole |
| Packaging dimensions (W × H) | 203 mm × 305 mm |
| Weight | approx. 0.34 kg / piece |
Compatibility
- For network components with RJ45 Ethernet port (e.g. switch, router, patch panel, IP telephone, PC/server, NAS, printer)
- Designed for Cat.6 patch lines in structured copper cabling (Gigabit Ethernet applications)
Scope of delivery
1× Cat.6 patch cable RJ45-RJ45, 10 m, red, individually packed in DINIC polybag (Eurohole).
DINIC is a brand of MAG GmbH - range for professional cable and connection technology.
SEO: Cat.6 patch cable RJ45 PiMF S/FTP LSZH 10m red AWG27 solid copper DINIC
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
