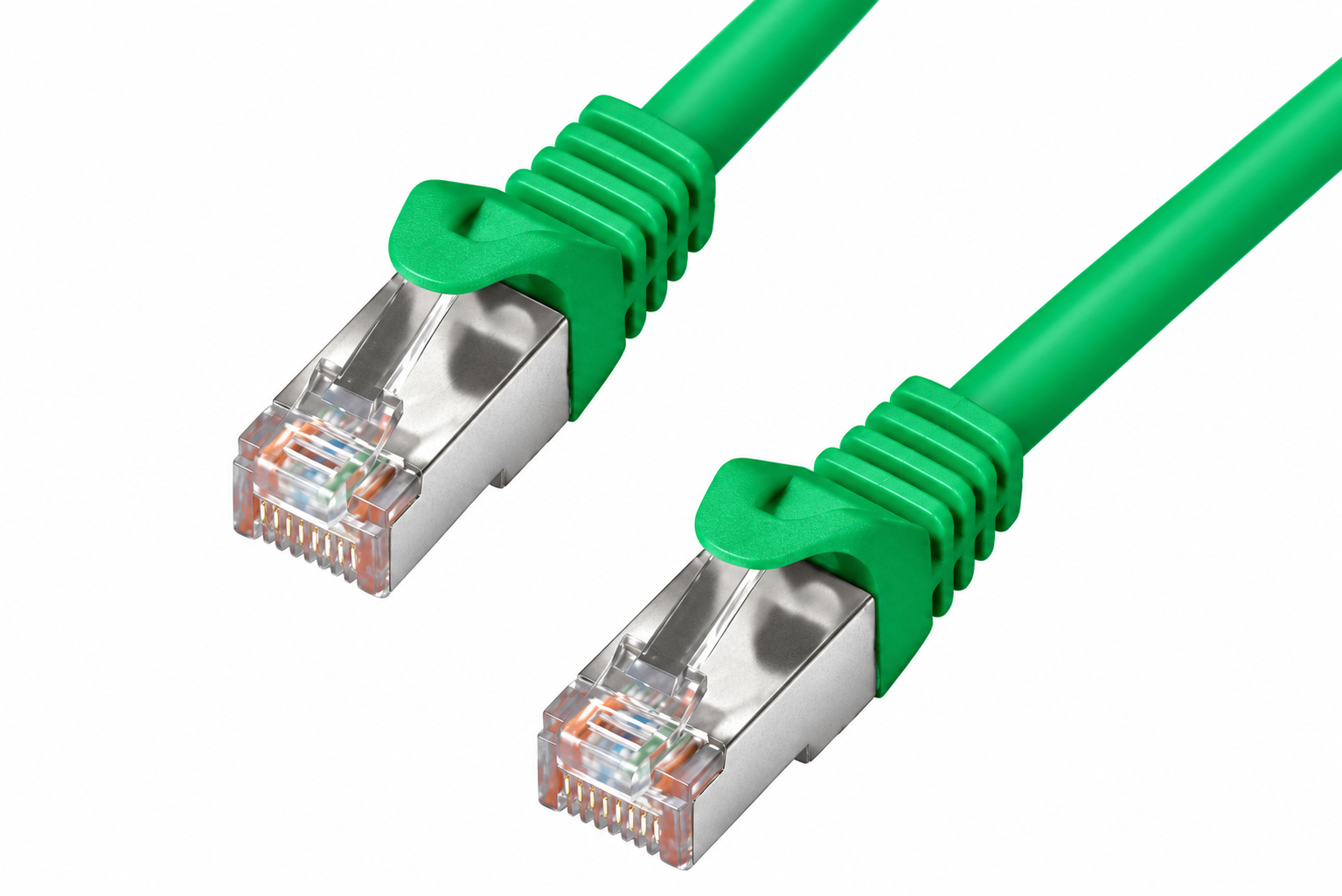

HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, green, DINIC polybag, length 10m

• Connectors: 2× RJ45, moulded; gold-plated contacts
• Shielding: PiMF (pair in metal foil) + S/FTP (overall foil + braided shield) - high EMC reserve
• Conductor: CU / solid copper strands, AWG 27
• Category / bandwidth: Cat.6, 250 MHz (typical for Gigabit Ethernet)
• Assignment: 1:1 according to EIA/TIA-568B
• Sheath material: LSZH (low-smoke, halogen-free) - suitable for installation-related areas with increased fire protection requirements
• Plug protection: moulded bend protection with strain relief + latching nose protection
• Marking: Length indicated directly on the plug; colour: green; length: 10 m

This HQ Cat.6 patch cable is designed for professional network cabling where stable data transmission and high interference immunity are required. The construction with paired foil shielding (PiMF) plus additional overall shielding (S/FTP) reduces interference and crosstalk - especially in densely occupied routes, patch panels and control cabinets.

The conductors made of solid copper strands (AWG27) support defined transmission properties in the Cat.6 environment. Moulded RJ45 plugs with gold-plated contacts ensure robust mating cycles. The moulded bend protection with strain relief and latching lug protection minimise causes of failure due to mechanical stress and damage to the latching lug during daily operation.

LSZH sheath material (low-smoke, halogen-free) is suitable in practice for installations where reduced smoke gas development and halogen-free materials are required (e.g. in technical rooms, office IT, public areas - depending on the project-specific fire protection concept).

• Patch panel switch / switch server in the rack (data centre, server room)
• Building technology and structured cabling (floor distributors, technical areas)
• Control cabinet construction and industrial automation (EMC-affected environments)
• System integration, rollouts and service (colour coding, length marking)
• Office IT, VoIP, peripheral connections with RJ45 end points

• 1× Cat.6 patch cable RJ45-RJ45, 10 m, green (DINIC polybag)
