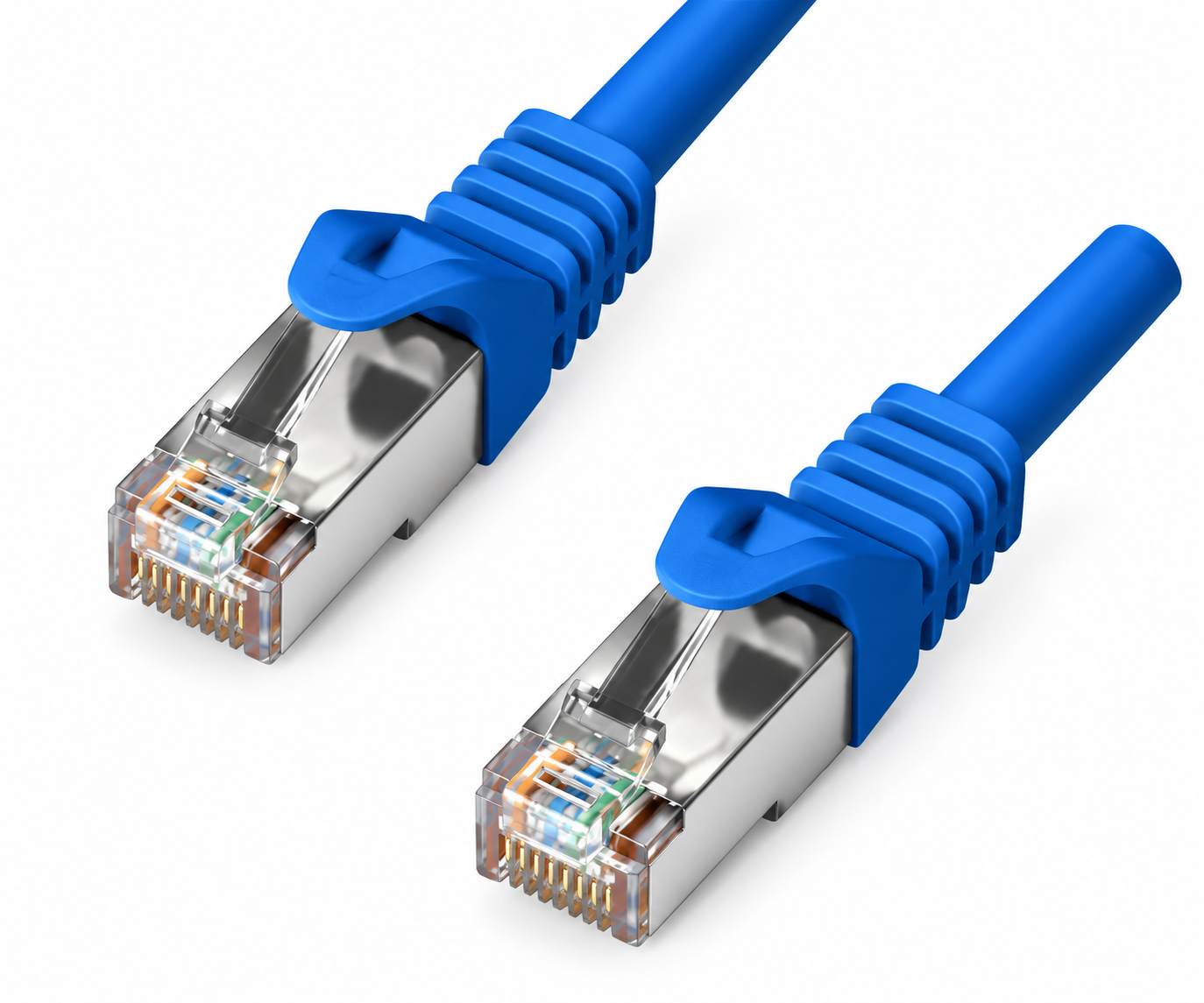

HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, blue, DINIC polybag, length 10m
.png "HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, blue, DINIC polybag, length 10m")
HQ Cat.6 patch cable PiMF / S-FTP, LSZH, CU, AWG27 - 10 m, blue
Halogen-free, double-shielded RJ45 patch cable for structured Gigabit Ethernet cabling.
Technical highlights
- CAT 6 patch cable, 250 MHz - suitable for Gigabit Ethernet routes in the patch area
- Shielding: PiMF (pair in metal foil) + S/FTP (overall foil + braided shield) for high EMC stability
- Conductor: CU/solid copper strands, AWG 27
- Plug: 2× RJ45, moulded, gold-plated contacts; 1:1 assignment in accordance with EIA/TIA 568B
- Moulded bend protection with strain relief and latch protection
- Length indication directly on the connector for quick identification in the patch field
- Outer jacket: LSZH (low-smoke, halogen-free) - suitable for professional installation environments
- Colour: blue; Length: 10 m; Packaging: DINIC polybag with Euro hole
Description: blue
The HQ Cat.6 patch cable is designed for reliable use in structured copper networks. The construction with solid copper strands (AWG 27) supports stable transmission properties in the patch area and is suitable for typical network components in office and industrial environments.
The combination of PiMF and S/FTP (pair and overall shielding) reduces interference from electromagnetic fields and supports clean signal routing - especially in densely occupied patch panels, server racks and routes with parallel power cabling.
Moulded RJ45 plugs with gold-plated contacts, moulded bend protection and latching lug protection increase mechanical robustness in daily patch operation. The length labelling on the plug facilitates assignment and documentation in IT and telecommunications distribution systems.
Areas of application
- Patch panel and patch cabling in 19" network cabinets
- System integration, office IT and workstation connections
- Data centre / server room (switch server, switch patch panel)
- Building technology and industrial networks (Ethernet-based systems)
- Service & maintenance: fast, colour-coded patch connections
Technical data
| Category | Cat. 6 |
| Frequency | 250 MHz |
| Plug connector | 2× RJ45 (8P8C), moulded, gold-plated contacts |
| Assignment | 1:1 according to EIA/TIA 568B |
| Conductor | CU / solid copper strands |
| Conductor cross-section | AWG 27 |
| Shielding | PiMF (pair in metal foil) + S/FTP (metal foil + braided shield) |
| Jacket material | LSZH (low-smoke, halogen-free) |
| Kink protection / strain relief | moulded, with latching lug protection |
| Colour: blue | blue colour |
| length | 10 m |
| Packaging | DINIC polybag with Euro hole (width 203 mm, height 305 mm) |
| Article number | C6N-10-BL |
| EAN CODE | 4032528023038 |
| weight | approx. 0.38 kg / piece |
Compatibility
- For devices and components with RJ45/Ethernet interface (8P8C)
- Suitable for patch panels, switches, routers, firewalls, servers, IP telephones, network sockets
- 1:1 wiring in accordance with EIA/TIA 568B for standard Ethernet cabling
Scope of delivery
1× Cat.6 patch cable RJ45-RJ45, 10 m, blue, packed in DINIC polybag with Euro hole.
DINIC is a brand of MAG GmbH - pre-assembled cable and connection solutions for professional applications.
SEO: Cat.6 patch cable RJ45, S/FTP PiMF, LSZH halogen-free, CU AWG27, 10m blue, DINIC
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
