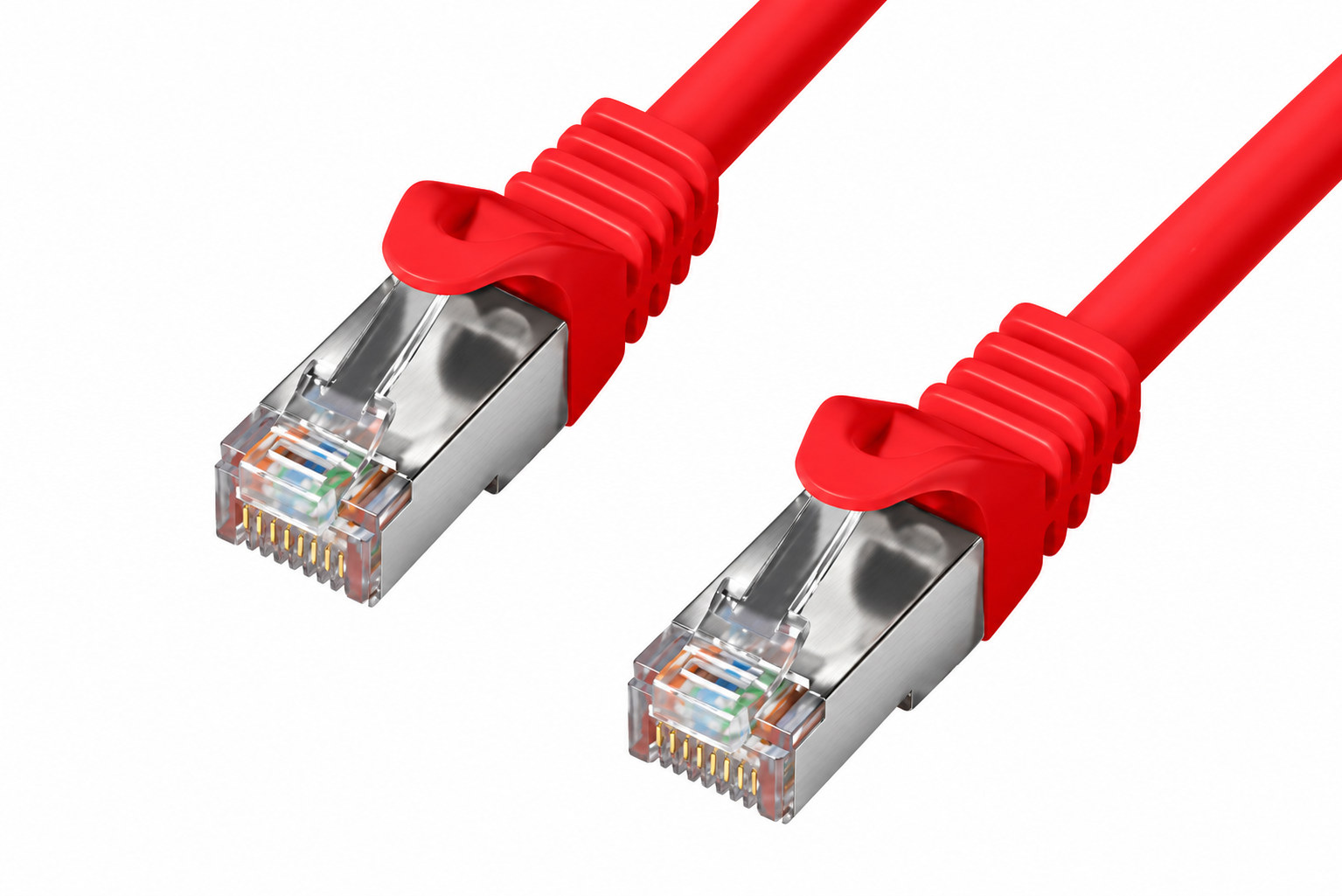

HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, red, DINIC Polybag, length 0.50m
.png "HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, red, DINIC Polybag, length 0.50m")
HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27 - 0.50 m - red (DINIC Polybag)
Double-shielded Cat.6 patch cable for 250 MHz Gigabit Ethernet connections in professional network installations.
Technical highlights
- Connectors: 2× RJ45 (moulded), gold-plated contacts
- Shield construction: PiMF (foil in pairs) + S/FTP (foil + braided shield) for high interference immunity
- Conductor: solid copper strands (CU), conductor cross-section AWG27
- Category: Cat.6, frequency: up to 250 MHz
- Assignment: 1:1 according to EIA/TIA-568B
- Sheath material: LSZH (low-smoke, halogen-free) for installation-related environments
- Kink protection with strain relief and snap-in lug protection (snagless) for service-friendly patching
- Length labelling directly on the plug for quick identification in the field
Description
This HQ Cat.6 patch cable is designed for reliable Ethernet connections in structured cabling systems. The shield construction of PiMF (paired foil shielding) in combination with S/FTP (overall foil plus braided shield) reduces crosstalk and external interference - advantageous for high port density, parallel cable routing and in EMC-critical areas.
The moulded RJ45 plugs with gold-plated contacts are designed for long-term mating cycles. Moulded bend protection with strain relief supports stable routing, while the latching lug protection minimises unintentional snagging on cable bundles. A length indication on the plug facilitates clear assignment in patch panels and service racks.
The LSZH sheath (low-smoke, halogen-free) is particularly suitable for professional installations where reduced smoke gas development and halogen-free design are required on the material side.
Areas of application
- Control cabinet construction and industrial automation (routes in the control cabinet / machine environment)
- Server cabinet, data centre and network cabinets (patch panel - switch - server)
- Building technology and structured IT cabling
- System integration, specialised trade and rollout projects
Technical data
| The product | HQ Cat.6 patch cable PiMF/S-FTP |
| Item number | C6N-05-RO |
| EAN CODE | 4032528022963 |
| Connectors | 2× RJ45, moulded, gold-plated contacts |
| Assignment | 1:1 according to EIA/TIA-568B |
| Category / bandwidth | Cat.6 / up to 250 MHz |
| Conductor | CU (solid copper strands), AWG27 |
| Shielding | PiMF (paired foil) + S/FTP (foil + braided shield) |
| Jacket | LSZH (low-smoke, halogen-free) |
| Cable colour | Red colour |
| Cable length | 0,50 m |
| Plug protection | Moulded bend protection with strain relief, latching lug protection |
| Packaging | DINIC polybag (with Euro hole) |
Compatibility
For network devices with RJ45 Ethernet interface (e.g. switches, routers, patch panels, structured building cabling, servers, IP telephones, access points) within Cat.6 installations.
Scope of delivery
1× Cat.6 patch cable RJ45/RJ45, 0.50 m, red, individually in DINIC polybag.
DINIC is a brand of MAG GmbH - pre-assembled cable and adapter solutions for professional applications.
Keywords: DINIC Cat.6 patch cable, RJ45 patch cable, PiMF S/FTP, LSZH halogen-free, AWG27 solid copper, 0.5m red, Gigabit Ethernet, 250 MHz
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
