Technical highlights

• Toslink plug to Toslink plug for digital S/PDIF audio connections
• Optical transmission with POF (polymer optical fibre), insensitive to EMC interference
• Encapsulated plug with gold-plated contacts (CuZnNi) and anodised metal housing
• Round PVC cable with additional textile fabric outer jacket, Ø approx. 6 mm
• Integrated kink protection to relieve strain in the plug area
• Colour: black, length: 1.5m
• Supplied in DINIC box with Euro hole - suitable for shelf and display presentation

Product description

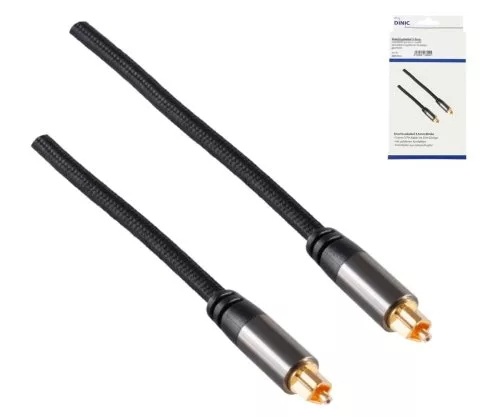

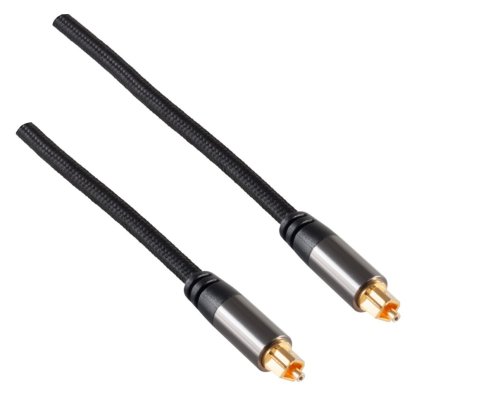

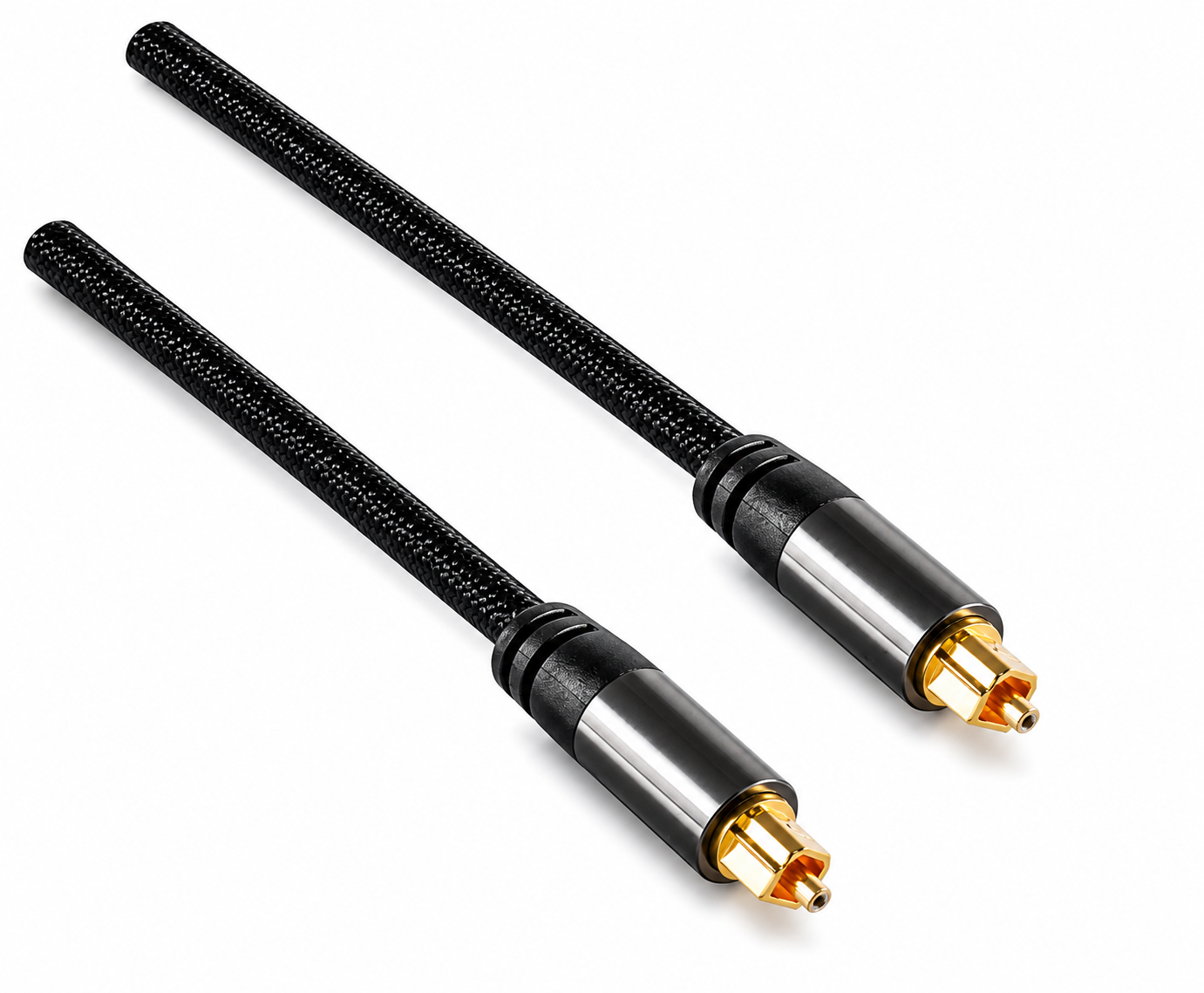

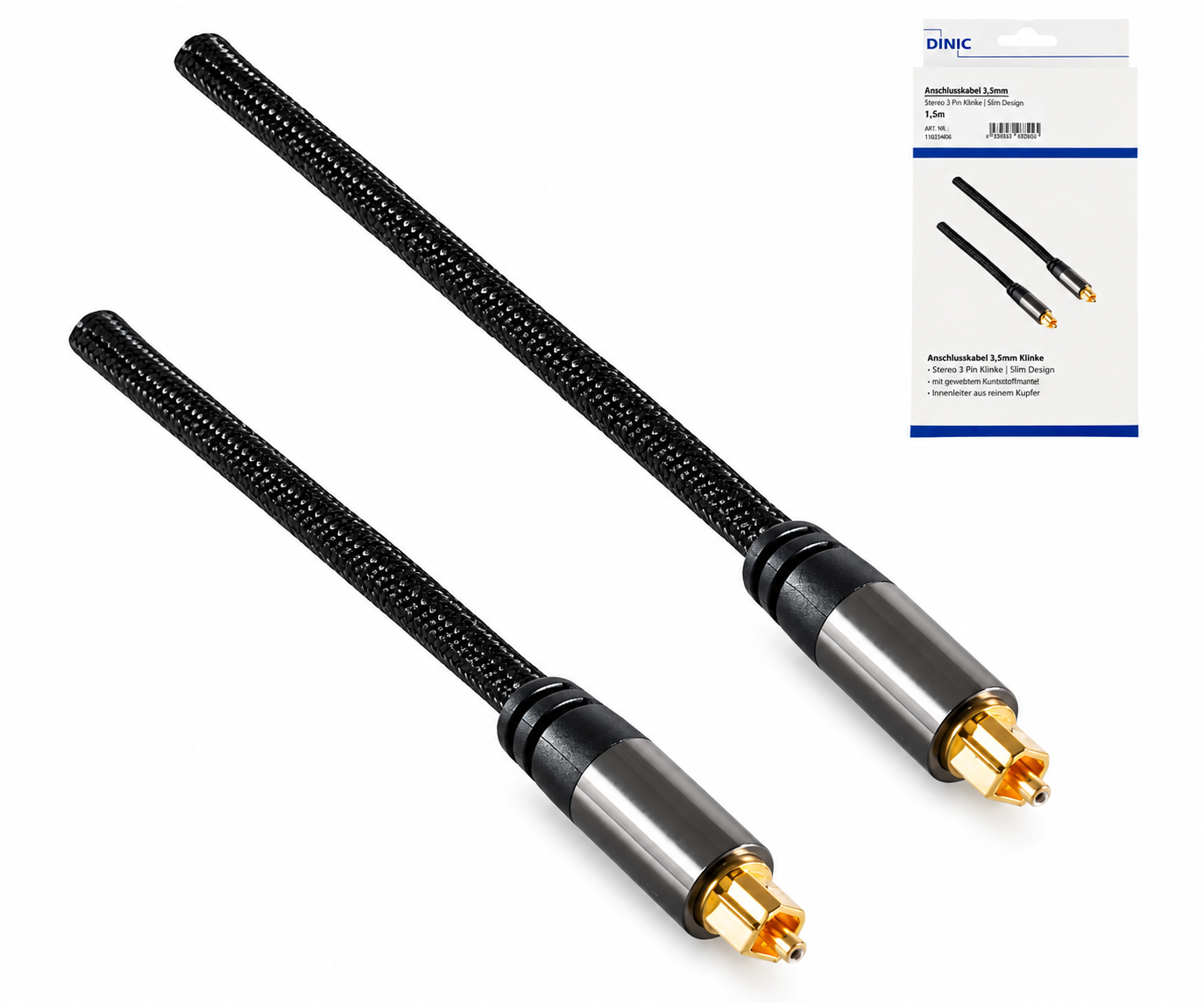

The DINIC HQ Toslink cable with a length of 1.5 metres is designed for the optical transmission of digital audio signals in accordance with S/PDIF. The signals are transmitted light-based via a polymer optical fibre (POF), making the cable insensitive to electrical and magnetic interference. This enables stable and reproducible signal transmission in professional audio and media setups.

The moulded Toslink connectors are equipped with gold-plated CuZnNi contacts and housed in an anodised metal housing. The integrated kink protection reduces mechanical stress on the plug connection and increases long-term reliability with frequent mating and in permanently installed environments.

The round cable is constructed with a PVC jacket and also has a black textile fabric outer jacket. This combination increases abrasion resistance, improves the feel and facilitates clean installation in visible areas of racks, media furniture and conference systems. With a diameter of approx. 6 mm, the cable is mechanically robust and at the same time flexible enough for standard installation situations.

Areas of application

• Connection of set-top box, media player or IPTV receiver with AV receiver or soundbar
• Audio connection in conference and presentation rooms
• Media technology installations in training rooms, meeting zones and event areas
• Integration in racks and control cabinets for audio/video distribution
• Professional home cinema and studio installations with optical S/PDIF audio routing

Technical data

Compatibility

Suitable for all devices with standardised Toslink interface (optical S/PDIF outputs/inputs), e.g:

• AV receivers, amplifiers, DACs and audio interfaces with Toslink port
• Set-top boxes, IPTV receivers, Blu-ray/DVD players, media and streaming players
• Soundbars, active speaker systems and TV sets with optical audio output
• Professional audio/video matrix systems and switchers with Toslink connection

Scope of delivery

• 1 × DINIC HQ Toslink cable, Toslink plug to Toslink plug, black, length 1.5m, Ø approx. 6mm, in DINIC box with Euro hole

Keywords: Toslink cable 1.5m, optical audio cable, black textile fabric, Toslink plug, DINIC HQ.
