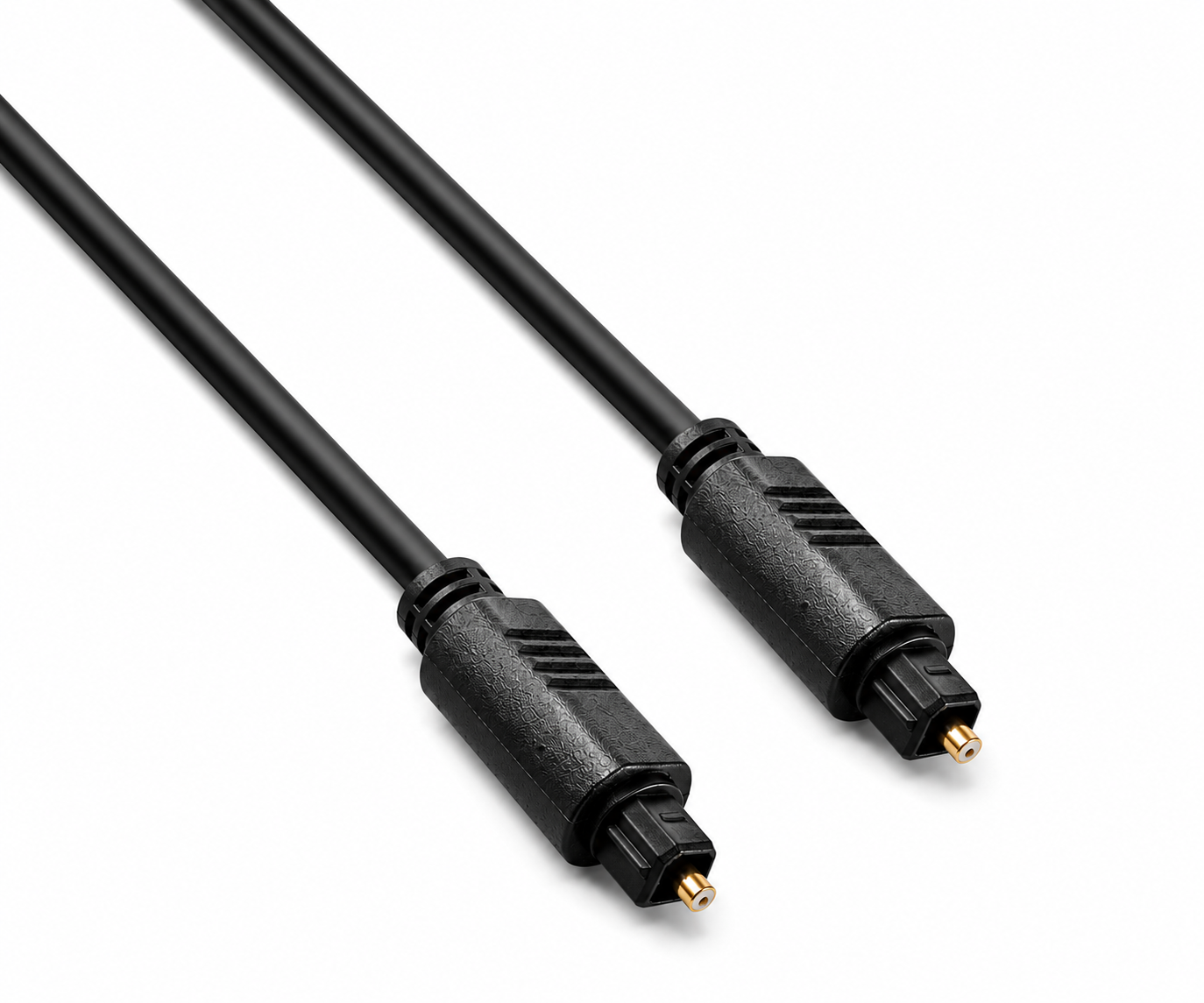

DINIC Toslink cable, 4mm Ø, PVC plug, gold-plated contacts, black, DINIC box with Euro hole, length 2.00m

Technical highlights

• Toslink plug - Toslink plug for digital audio transmission (S/PDIF)
• Outer diameter 4.0 mm, POF fibre optic cable (polymer optical fibre)
• Moulded PVC connector body for robust, strain-relieved connection
• Gold-plated contact surfaces to reduce contact resistance
• Length 2.00 m, cable and connector colour: black

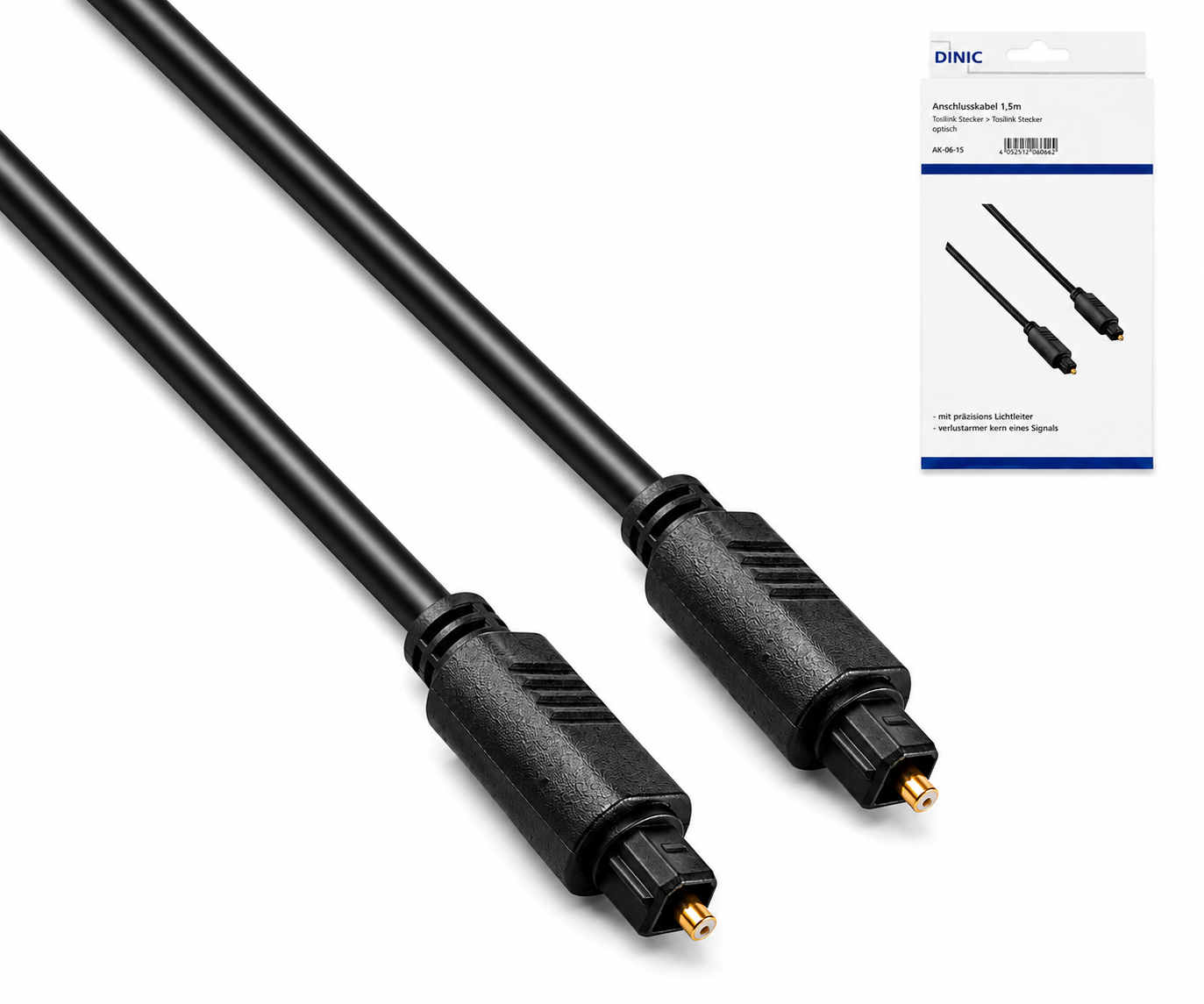

• Packaging: DINIC box with Euro hole for shop and counter presentation
• Insensitive to electrical and magnetic interference

Description

The DINIC Toslink cable with an outer diameter of 4 mm is designed for the optical transmission of digital audio signals in accordance with S/PDIF. Typical applications are connections between set-top boxes, televisions, media players or games consoles and AV receivers, soundbars or other audio components with an optical input.

The integrated POF fibre optic cable (polymer optical fibre) transmits the signal using light, making the cable largely insensitive to electrical and magnetic interference fields. This is particularly advantageous in environments with many power supply units, switching power supplies or IT infrastructure.

The moulded PVC connector bodies ensure permanent strain relief and mechanical stability in daily use. Gold-plated contact surfaces in the mating area support reliable plug connections and reduce the risk of contact corrosion, especially with frequent reconnection.

The length of 2.00 m is suitable for typical installation routes in the rack, in media furniture or between TV and audio system, without excessive excess cable.

Areas of application

• Connection of set-top box, streaming receiver or media player with AV receiver
• Connection of TV sets to soundbars with optical digital input
• Digital audio distribution in conference and presentation rooms
• Media and event technology, fixed installations and rack systems
• System integration in offices, training rooms and classrooms with AV technology

Technical data

Article description	DINIC Toslink cable, 4mm Ø, black, 2.00 m
article number	MM-TT-2-4MM-KB
Connectors	Toslink plug - Toslink plug
Cable length	2,00 m
Outer diameter	4.0 mm
Conductor material / medium	POF (Polymer Optical Fibre)
Connector construction	moulded plug
Connector material	PVC
Contact surface	gold plated
Cable colour	Black colour
Colour plug	Black colour
Packaging	DINIC box with Euro hole
Weight per piece	approx. 0.062 kg

Compatibility

Suitable for all devices with an optical digital audio interface (Toslink / S/PDIF).

• AV receivers and home cinema amplifiers with optical input
• Televisions and projectors with Toslink output
• Set-top boxes, DVB receivers, IPTV receivers
• Media players, games consoles, streaming boxes with optical audio output
• Professional audio and media technology with optical S/PDIF ports

Notes

Use only under direct adult supervision

Scope of delivery

• 1 × DINIC Toslink cable, 4mm Ø, black, length 2.00 m, packed in DINIC box with Euro hole

DINIC is a trademark of MAG GmbH.
