Technical highlights

• Conversion of digital audio signals (optical TOSLINK or coaxial S/PDIF) to analogue stereo RCA signals
• 1x TOSLINK input and 1x coaxial RCA digital input, output 2x RCA (left/right)
• Supported sampling rates: 32, 44.1, 48, 96 and 192 kHz
• Sturdy aluminium housing, compact design for unobtrusive integration
• Operating temperature range 0 °C to +70 °C for professional use
• External power supply via included power supply unit
• Packaging unit: DINIC box with Euro hole for presentation ready for sale

Product description

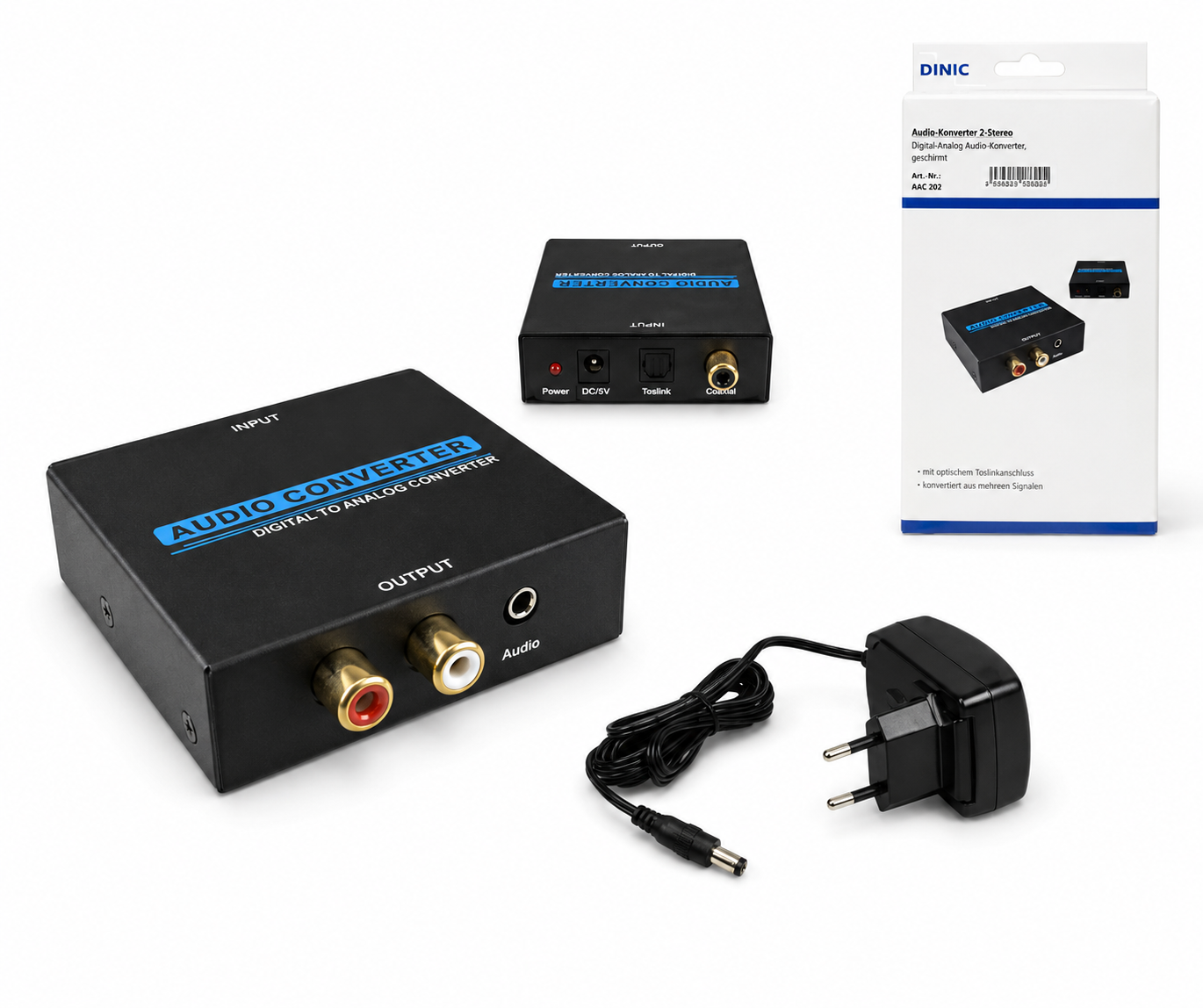

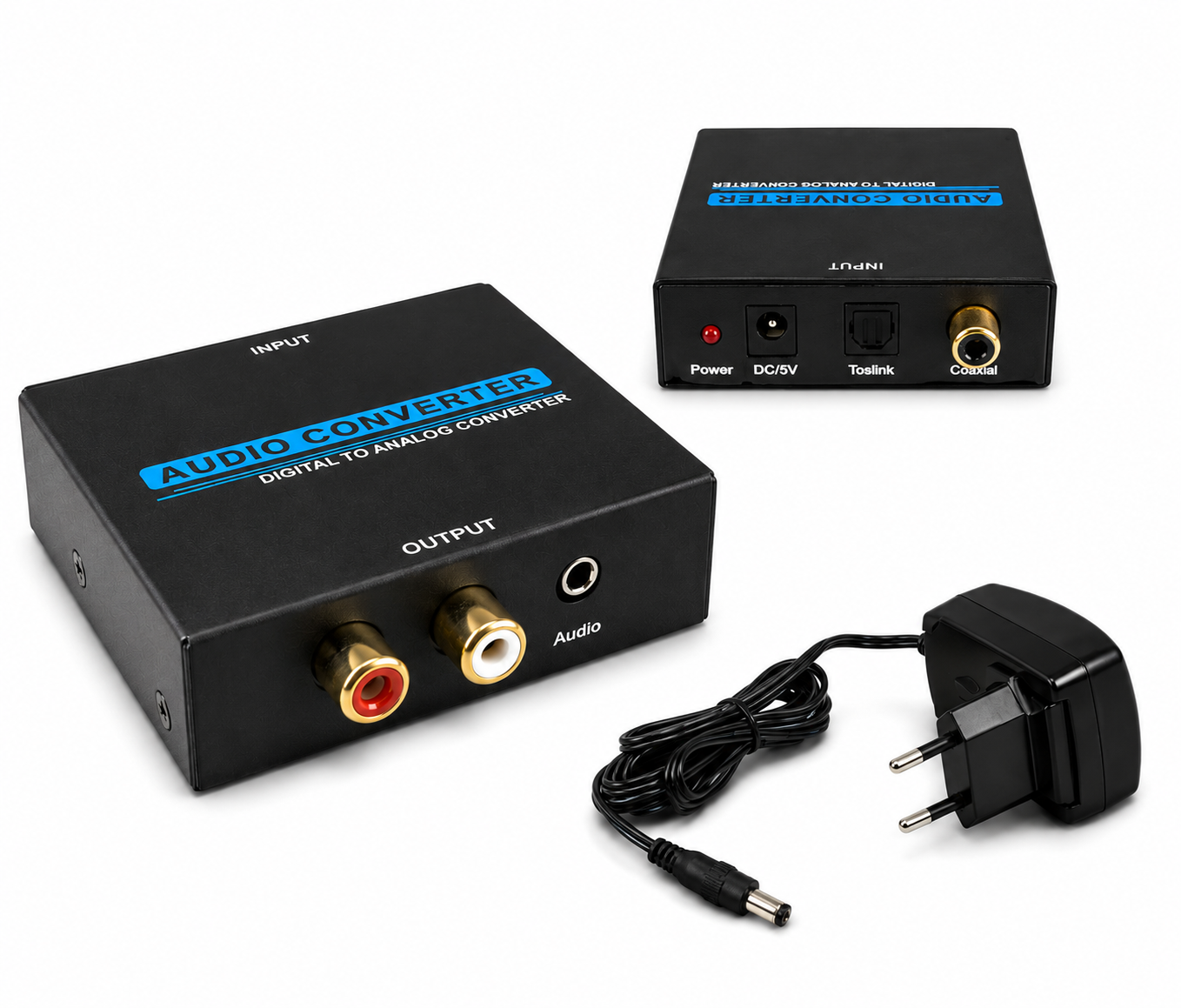

The digital/analogue audio converter converts digital audio signals from TOSLINK or coaxial S/PDIF inputs into an analogue stereo cinch signal. This allows digital audio sources to be connected to amplifiers, AV receivers or active loudspeaker systems that only have analogue cinch inputs.

The compact aluminium housing allows installation close to the signal source or in a rack environment without taking up any significant space. The external power supply via the included power supply unit reduces interference from external voltage influences and ensures stable operation.

By supporting common sampling rates from 32 to 192 kHz, the converter is suitable for a wide range of professional audio sources, from set-top boxes and media players to PC and AV systems in installations.

Fields of application

• Connection of TV, SAT receivers, Blu-ray players or media players to analogue stereo amplifiers
• AV installations in conference and training rooms
• Integration in digital signage environments with existing analogue audio technology
• Retrofitting in existing systems without digital audio inputs
• Use in professional environments such as system houses, specialist retailers and installation companies

Technical data

Characteristic	Value
Article no.	MM-A-T2C-KB
Product type	Digital/analogue audio converter
Input 1	TOSLINK coupling (optical digital audio input)
Input 2	RCA coaxial socket (digital audio, S/PDIF)
Output	2x RCA socket (audio left/right)
Supported sampling rates	32, 44.1, 48, 96, 192 kHz
Housing material	aluminium
colour	Black colour
Operating temperature	0 °C to +70 °C
Dimensions (L x W x H)	approx. 70 x 60 x 20 mm
Weight approx.	approx. 78 g
Power supply	External power supply unit (included in scope of delivery)
Labelling	WEEE-compliant disposal according to manufacturer's instructions
Packaging	DINIC box with Euro hole

Compatibility

• Digital audio sources with optical TOSLINK output (e.g. TV sets, SAT receivers, Blu-ray players, media players)
• Digital audio sources with coaxial S/PDIF output (RCA)
• Audio amplifiers, mixing consoles, AV receivers and active speakers with analogue stereo cinch/line inputs

Notes

Use only under direct adult supervision.

Scope of delivery

• Digital/analogue audio converter DINIC
• External power supply unit
• Instruction manual
