Technical highlights

• Cross-section: 2 x 1.5 mm² for typical loudspeaker and sound reinforcement applications
• Inner conductor made of CCA (Copper Clad Aluminium) for good transmission behaviour with reduced weight
• Transparent cable sheath for visual inspection and inconspicuous installation
• Clear plus/minus pole labelling for error-free polarity of loudspeakers
• External dimensions approx. 3.1 x 6.2 mm, space-saving flat design
• 50 m reel for long distances or multiple outlets from one supply line
• Not approved for permanent installation in buildings (temporary installations)

Description

The DINIC loudspeaker cable in transparent design is a two-core cable with a cross-section of 2 x 1.5 mm² and is suitable for common loudspeaker and sound reinforcement installations. The 50 m reel makes it possible to supply several speaker lines or longer supply lines from a cable reserve.

The inner conductors are made of CCA (Copper Clad Aluminium). This material combines good electrical properties with low weight and economical use of materials. The transparent sheath allows visual inspection of the conductors and blends unobtrusively into existing installations.

The cable has clear plus/minus pole labelling for clear speaker polarity. This reduces wiring errors and facilitates quick installation in daily use, especially with multiple speaker circuits.

The cable is not approved for permanent installation in buildings and is designed for temporary installations, mobile systems, event and rental technology.

Fields of application

• Sound reinforcement technology, mobile PA and loudspeaker systems
• Events, trade fairs, temporary installations
• Studio, rehearsal and control rooms
• Conference and presentation technology in meeting and training rooms
• Audio cabling in shop fitting, showrooms and temporary exhibition areas

Technical data

Product type	Speaker cable, 2-core
Cross-section	2 x 1.5 mm²
Inner conductor material	CCA (Copper Clad Aluminium)
Number of cores	2
Pole labelling	Plus/minus pole labelling
Outer dimensions	approx. 3.1 x 6.2 mm
Colour/jacket	transparent
length	50 m roll
Type of installation	not approved for permanent installation in buildings
article number	MM-LK1-50
Brand name	DINIC

Compatibility

Suitable for speaker and amplifier connections with screw, clamp or spring terminals for bare conductor ends. For use in speaker terminals, terminal strips and junction boxes designed for two-core speaker cables with a cross-section of 1.5 mm².

Scope of delivery

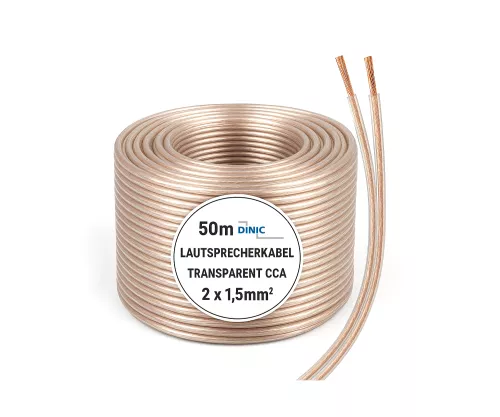

1 x DINIC speaker cable transparent CCA, 2 x 1.5 mm², 50 m roll.

Keywords: Speaker cable 2 x 1.5 mm², transparent CCA, 50 m roll, DINIC, audio cabling, sound reinforcement technology.

Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de

Safety Information:
Use only under direct adult supervision
