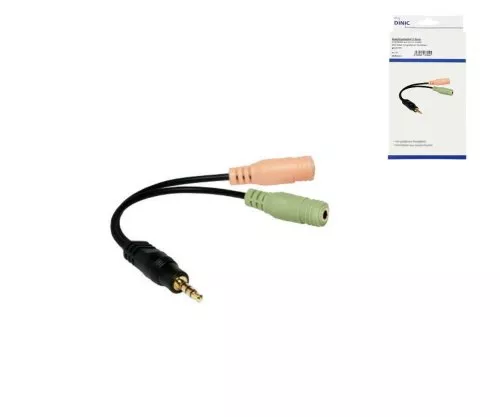

Y-adapter 4pin plug to 2x 3pin socket, 3.5 mm jack plug/2x 3.5 mm jack socket, black, DINIC box with Euro hole, length 0.15m

Technical highlights

• Y-adapter 3.5 mm: 4-pin jack plug to 2x 3-pin jack socket
• For splitting a combined headset socket into separate headphone and microphone connections
• Gold-plated contacts for reliable signal transmission
• Cable length approx. 0.15 m, compact Y-design
• Colour: black
• Robust plastic housing on plugs and sockets
• Packaging: DINIC box with Euro hole for storage, logistics and sales

Product description

This 3.5 mm Y adapter connects end devices with a combined 4-pin headset audio socket to headsets that have two separate 3.5 mm jack plugs for headphones and microphone. The 4-pin plug is plugged into the combined audio socket of the notebook or PC, the two 3-pin jack sockets accept the corresponding plugs of the headset.

The gold-plated contacts support clean signal transmission and reduce contact transfer resistance in everyday use. With a cable length of 0.15 m, the adapter remains compact, but at the same time offers sufficient flexibility for routing from front or side connections without unnecessary excess cable.

The design with its robust plastic housing and black cable is designed for long-term use at IT workstations, in training and meeting rooms as well as in service and support environments. The DINIC box with Euro hole facilitates storage, order picking and presentation in the specialised trade.

Areas of application

• Connection of PC headsets to notebooks and PCs with combined 3.5 mm headset socket
• Workstations in offices, call centres and service hotlines
• Training, meeting and conference rooms
• System integration in the IT and AV environment
• Equipping system houses and specialist retailers with standardised headset adapters

Technical data

Product type	Audio Y-adapter 3.5 mm
Connection 1	1x 3.5 mm jack plug, 4-pin (headset combination connection)
Connection 2	2x 3.5 mm jack socket, 3-pin (stereo, e.g. headphones and microphone)
Contacts	Gold-plated
Cable length	0,15 m
Cable colour	Black colour
Housing	Plastic, compact design
Packaging	DINIC box with Euro hole
Article number	MM-KK-YBU-KB
EAN CODE	4032528039176
Manufacturer / Brand	MAG GmbH / DINIC

Compatibility

• End devices with combined 3.5 mm 4-pin headset audio socket (e.g. many notebooks and PCs)
• Headsets with two separate 3.5 mm jack plugs for headphones and microphone
• Typical PC headsets with colour-coded jack plugs (e.g. green for audio, pink for microphone)

Scope of delivery

1x Y-adapter 4pin plug to 2x 3pin socket, 3.5 mm jack plug to 2x 3.5 mm jack socket, black, length 0.15 m, in DINIC box with Euro hole.

3.5 mm Y-adapter 4pin to 2x 3pin, headset audio adapter, 0.15 m, DINIC
