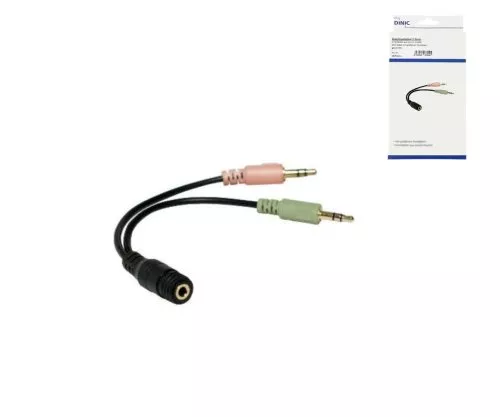

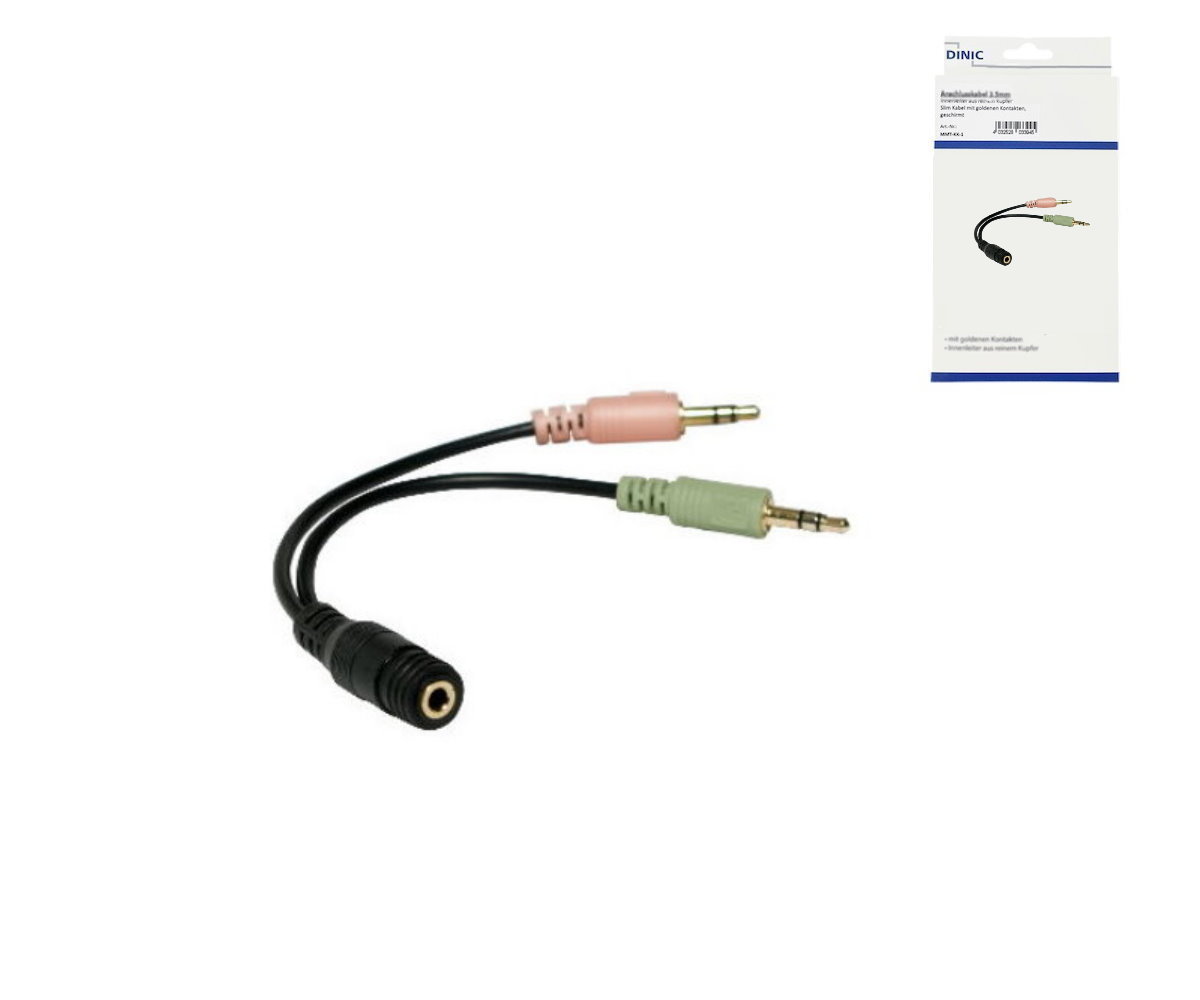

DINIC Y-adapter 3.5 mm, 4-pin socket to 2x 3-pin plug, 0.15 m
Y-adapter for splitting a combined 4-pin headset connection into separate 3.5 mm jack connections for audio output and microphone input.
Technical highlights
- 3.5 mm jack socket, 4-pin (TRRS) to 2x 3.5 mm jack plug, 3-pin (TRS)
- Splitting of a headset plug into separate audio and microphone signals
- Gold-plated contacts for reliable signal transmission
- Plug housing made of robust plastic, compact design
- Cable length approx. 0.15 m - short, clear connection in the front or rack area
- Colour: black, unobtrusive integration in audio and IT installations
- Packaging: DINIC box with Euro hole for storage, sales and service use
Product description
The DINIC Y adapter enables the use of headsets with a combined 4-pin 3.5 mm jack plug on systems that provide separate connections for headphones (audio out) and microphone (mic in). The adapter cable splits the headset signal into two standardised 3-pin 3.5 mm jack plugs.
Thanks to the short cable length of 0.15 m, the design remains clear and is particularly suitable for use on the front panels of PCs, workstations, docking stations or audio interfaces. The gold-plated contacts support clean signal transmission, while the plastic connector housings are designed for a mechanically stable connection.
The adapter is designed for professional environments in which headsets need to be flexibly connected to different end devices, e.g. in service hotlines, training rooms, conference areas or in IT support.
Areas of application
- Workstation and office IT (PC, notebook, docking station)
- VoIP and unified communications workstations
- Conference and training rooms with PC/notebook connection
- Service and support workstations with headset use
- System integration in the IT and telecommunications environment with 3.5 mm audio connections
Technical data
| Item number |
MM-KK-YST-KB |
| Product type |
Audio Y-adapter 3.5 mm |
| Connection 1 |
3.5 mm jack socket, 4-pin (stereo / headset) |
| Connection 2 |
2x 3.5 mm jack plug, 3-pin (stereo audio & microphone) |
| Contact surface |
Gold-plated |
| Plug housing |
Plastic |
| Cable length |
0,15 m |
| colour |
Black colour |
| Packaging |
DINIC box with Euro hole |
| EAN CODE |
4032528039183 |
| Weight (approx.) |
0.03 kg per piece |
| Manufacturer / Brand |
DINIC / MAG GmbH |
Compatibility
- Headsets with 3.5 mm 4-pin jack plug (combined audio/microphone connection)
- End devices with two separate 3.5 mm jack sockets for headphones (audio out) and microphone (mic in)
- Typical: PC and workstation front panels, docking stations, thin clients, conference and training PCs
Scope of delivery
1x DINIC Y-adapter 3.5 mm, 4-pin jack socket to 2x 3-pin jack plug, black, cable length 0.15 m, packed in DINIC box with Euro hole.
Notes
Safety information: Use only under direct adult supervision
DINIC is a trademark of MAG GmbH.
