Technical highlights

• 2x 3.5 mm stereo jack coupling (3-pin TRS) in compact double socket
• Designed for analogue stereo audio signals (e.g. line-out, headphones)
• Metal housing for mechanical stability and robust mating cycles
• Symmetrical coupling-to-coupling design for connecting two 3.5 mm stereo cables
• Suitable for extending and adapting existing 3.5 mm audio cables
• Space-saving design for patch panels, media technology and mobile applications
• Packaged in DINIC box with Euro hole for specialist retail presentation

Description

The DINIC audio adapter with 2x 3.5 mm stereo jack coupling serves as a compact double socket for connecting two 3.5 mm stereo cables. This allows existing jack cables to be extended and connected together or different cable harnesses to be flexibly coupled together without using additional active components.

The metal housing offers a robust mechanical design and supports the shielding of the signal contacts. The stereo configuration (TRS, 3-pin) ensures the channel-clean transmission of left and right audio channels as well as the common ground. The adapter is designed for typical line and headphone signals in the 3.5 mm environment and is suitable for permanent use in IT and AV environments.

Thanks to its compact design, the double socket can be used in mobile setups as well as in permanently installed environments such as conference and training rooms, media tables or control racks. The DINIC box with Euro hole facilitates storage, order picking and presentation in specialist shops or service trolleys.

Areas of application

• Connection and extension of 3.5 mm stereo jack cables in IT and AV installations
• Conference and presentation technology (notebook / media player to sound or media systems)
• System integration in training, seminar and meeting rooms
• Media technology, broadcast-related environments and control racks
• Service and maintenance work in the audio/video sector

Technical data

Item number	MM-KK-BU-HQ-KB
EAN CODE	4032528042237

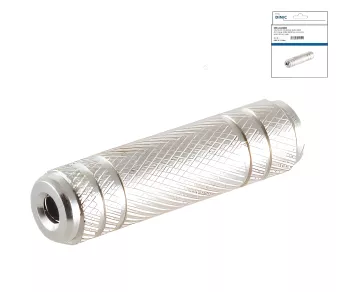

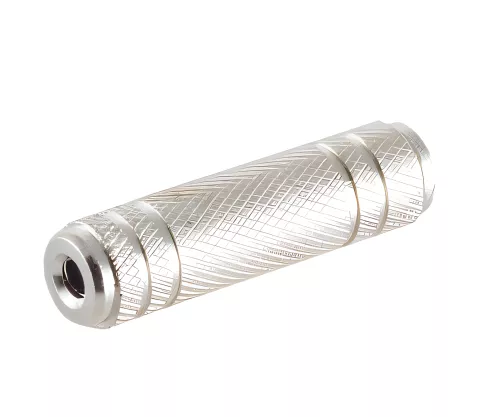

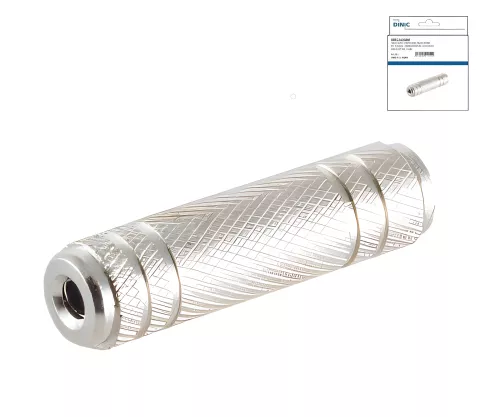

Product type	Audio adapter, double socket 2x 3.5 mm stereo jack coupling
Plug connector	2x 3.5 mm jack coupling, stereo (3-pin TRS)
Signal type	Analogue stereo audio signals (3.5 mm stereo jack)
Housing material	metal
Design	Coupling-to-coupling (double socket)
Weight	approx. 0.025 kg per piece
Category	Audio > Jack > Adapter
Packaging	DINIC box with Euro hole
Brand name	DINIC
manufacturer	MAG Ltd.

Compatibility

The adapter is suitable for all standard audio cables and devices with a 3.5 mm stereo jack plug (TRS).

• 3.5 mm stereo jack cable (e.g. from PCs, notebooks, docking stations, mobile devices)
• Connection of line/headphone outputs with downstream audio or media technology
• Extension of existing 3.5 mm jack cables in IT, AV and media technology installations

Scope of delivery

• 1x adapter 2x jack coupling 3.5 mm stereo, metal, in DINIC box with Euro hole

DINIC is a MAG GmbH brand for pre-assembled cables, adapters and accessories in the professional environment.

3.5 mm jack adapter, 2x stereo jack coupling, metal audio adapter, DINIC, double socket 3.5 mm stereo jack
