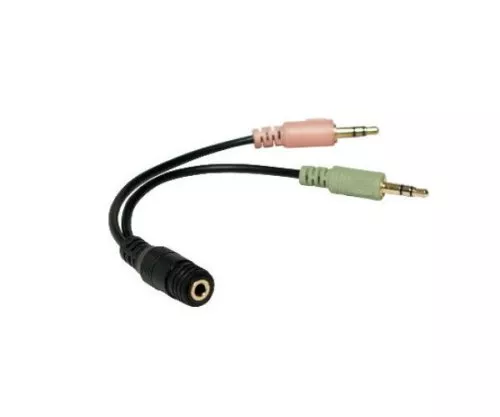

DINIC Y-adapter 3.5 mm - 4-pin socket to 2x 3-pin plug, 0.15 m
Audio/microphone splitter cable for connecting headsets with 4-pin combination plug to devices with separate 3.5 mm audio and microphone sockets.
Technical highlights
- Y-adapter 3.5 mm: 4-pin jack socket to 2x 3-pin 3.5 mm jack plug (audio & microphone separate)
- For using headsets with combined 4-pin 3.5 mm jack plug on PC/notebook with separate audio/microphone sockets
- Cable length approx. 0.15 m for short, clear connections at the workplace
- Gold-plated contacts for reliable signal transmission and reduced contact transfer resistance
- Robust plastic housing, black cable and plug colour
- Compact Y-design, ideal for mobile devices and confined connection fields
- Packaged in a DINIC polybag - suitable for warehousing, shipping and system house logistics
Description
The DINIC Y adapter connects headsets with a 4-pin 3.5 mm combo plug (common socket for audio and microphone) with end devices that have separate 3.5 mm sockets for headphone/line out and microphone. The adapter cable separates the signals into two independent 3-pin jack plugs and thus enables the use of a single headset on classic PC and notebook sound cards or other audio interfaces with separate input and output.
The short cable length of 0.15 m ensures compact, clear wiring directly on the device, without unnecessary cable reserves. Gold-plated contacts support reliable signal transmission and reduce contact problems with frequent plugging and unplugging in a professional environment.
The robust plastic housing and the black sheath colour blend unobtrusively into existing cabling and are ideal for use in IT workstations, training environments or service and test setups. Thanks to the packaging in the DINIC polybag, the adapter is easy to pick, label and stock in existing warehouse systems.
Areas of application
- IT workstations in office and administration environments
- Call centre, helpdesk and support workstations with headset use
- Training rooms, seminar rooms and educational environments
- System house rollouts and equipping PC pools
- Service and test setups in technical and laboratory areas
Technical data
| Product type |
Audio Y-adapter 3.5 mm jack |
| Connection 1 |
1x 3.5 mm jack socket, 4-pin (headset combination connection) |
| Connection 2 |
2x 3.5 mm jack plug, 3-pin (stereo audio out & microphone in) |
| Number of poles |
4-pin socket to 2x 3-pin plug |
| Cable length |
approx. 0.15 m |
| Contacts |
Gold-plated |
| Housing / plug |
Plastic housing |
| colour |
Black colour |
| Packaging |
DINIC polybag |
| Item number |
MM-KK-YST-PB |
| EAN CODE |
4032528034096 |
Compatibility
- Headsets with combined 4-pin 3.5 mm jack plug (audio + microphone in one plug)
- PCs, notebooks and workstations with separate 3.5 mm sockets for headphones/line-out and microphone
- Audio interfaces, sound cards and docking stations with separate 3.5 mm connections for input and output
Scope of delivery
1x DINIC Y-adapter 3.5 mm, 4-pin jack socket to 2x 3-pin 3.5 mm jack plug, length 0.15 m, black, in DINIC polybag.
DINIC is a MAG GmbH brand for professional connection solutions.
Y-adapter 3.5 mm 4-pin to 2x 3-pin, headset audio/microphone splitter, 0.15 m, DINIC, professional jack adapter.
