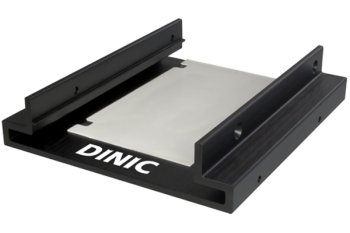

DINIC aluminium mounting frame for 2x 2.5" drives, suitable for SSD, SATA or IDE
Aluminium installation frame for mounting two 2.5" drives in a 3.5" drive bay.
Technical highlights
- Mounting frame for two 2.5" SSD/HDD up to approx. 9.5 mm height
- Installation in standard 3.5" drive bays of desktop and industrial PCs
- 100% aluminium for stable mounting and improved heat dissipation
- Pre-assembled thermal pad for thermal coupling of the drives
- Includes mounting screws and instructions for quick installation
- Black colour, visually matches standard case interiors
- Mechanically suitable for 2.5" drives with SATA or IDE interface
Description
The DINIC aluminium mounting frame enables the installation of two 2.5" drives (SSD or HDD) in a single 3.5" drive bay. This allows existing systems to be efficiently converted to fast 2.5" storage or additional drives to be accommodated in limited installation spaces.
The 100% aluminium construction ensures a stable mechanical fixation and at the same time supports the heat dissipation of the installed drives. The pre-assembled thermal pad ensures good thermal coupling between the drive and the frame and makes the installation process easier in practice.
Thanks to its clear, compact design, the frame is suitable for use in desktop PCs, workstations and industrial PCs, particularly for system upgrades and conversions where existing 3.5" bays are to be optimally utilised. The supplied mounting screws and instructions support reproducible, clean installation in a professional environment.
Areas of application
- System integration and assembly of desktop and industrial PCs
- Upgrading and converting existing systems to 2.5" SSDs
- Service and repair work in IT workshops and system houses
- Memory expansion in workstations, test and laboratory setups
Technical data
| Product type |
Aluminium mounting frame for 2x 2.5" drives |
| Drive mounting |
2x 2.5" SSD/HDD up to approx. 9.5 mm height |
| Installation slot |
1x internal 3.5" drive bay |
| Frame material |
100 % aluminium |
| colour |
black colour |
| Frame dimensions |
approx. 100 mm x 25 mm x 114 mm |
| Weight |
approx. 0.26 kg per piece |
| Scope of delivery (technical) |
Aluminium module, pre-assembled heat conducting pad, fixing screws, instructions |
| Packaging |
DINIC blister / cardboard box with EURO hole |
| Item number |
E-25 |
| EAN CODE |
4032528000893 |
Compatibility
- Standard 2.5" SSD and HDD with SATA or IDE interface (mechanical compatibility)
- Internal 3.5" drive bays in desktop, workstation and industrial PC housings
Scope of delivery
- 1x DINIC aluminium mounting frame for 2x 2.5" drives
- 1x pre-assembled thermal pad
- Mounting screws for frame and drives
- Mounting instructions
