Main page » Products » TV / SAT » SAT cable accessories » Angle adapter F plug / F socket 90°, 10 pieces, DINIC polybag

Preview: Angle adapter F plug / F socket 90°, 10 pieces, DINIC polybag

Angle adapter F plug / F socket 90°, 10 pieces, DINIC polybag

Mobile Preview: Angle adapter F plug / F socket 90°, 10 pieces, DINIC polybag

Description

Description

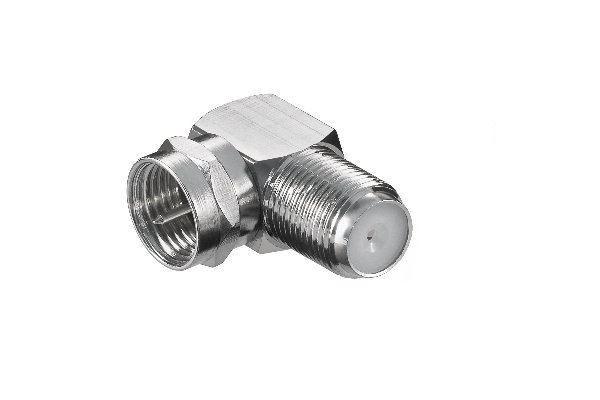

DINIC angle adapter F plug to F socket 90° - 10 pieces

Article number: SAT-A-W-10 - Inner conductor copper - B2B

✓ 90° angle adapter for space-saving SAT installations
✓ F-plug (male) to F-socket (female) - screwable coax connection
✓ Inner conductor made of copper - high conductivity, stable signal transmission
✓ Metal housing, nickel-plated - robust design for continuous operation
✓ 10-pack - economical for series assembly and service use
✓ Compatible with common 75 Ω SAT coaxial cables

Product description

The DINIC SAT angle adapter enables a 90° angle between the F plug and F socket and is used when there is too little space behind devices or sockets for a straight connection.

Thanks to the copper inner conductor, the adapter offers permanently reliable conductivity. The nickel-plated metal design ensures mechanical stability. Suitable for installations on SAT receivers, multi-switches, LNBs or wall sockets. Supplied as a 10-piece unit for workshops, specialist retailers and system integration.

Areas of application

Satellite reception (DVB-S / DVB-S2)
Receiver/TV connections with F connectors
Wall sockets and multi-switches where space is limited
Service and series installation (stock pack)

Technical data

Item number	SAT-A-W-10
Design	90° angle adapter
Connection A	F-connector (male)
Connection B	F socket (female)
Inner conductor	copper
Housing material	Metal, nickel-plated
Impedance	75 Ω
colour	silver colour
Packaging unit	10 pieces (polybag)

Compatibility: Coaxial connections with F connection (F plug/F socket) on SAT systems, multi-switches, LNBs and receivers.

Note: Indoor use. No voltage conversion. Not suitable for IEC round plugs.

Scope of delivery: 10 × DINIC angle adapter F plug (male) to F socket (female), 90°, copper inner conductor

MAG GmbH - DINIC - Cables & Adapters since 1992

DINIC SAT adapter F plug angle, F socket 90 degrees, copper inner conductor, coaxial adapter, 75 Ohm, B2B SAT accessories, multiswitch, LNB, receiver, MAG-Kabel.de, SAT-A-W-10, 10 pieces
