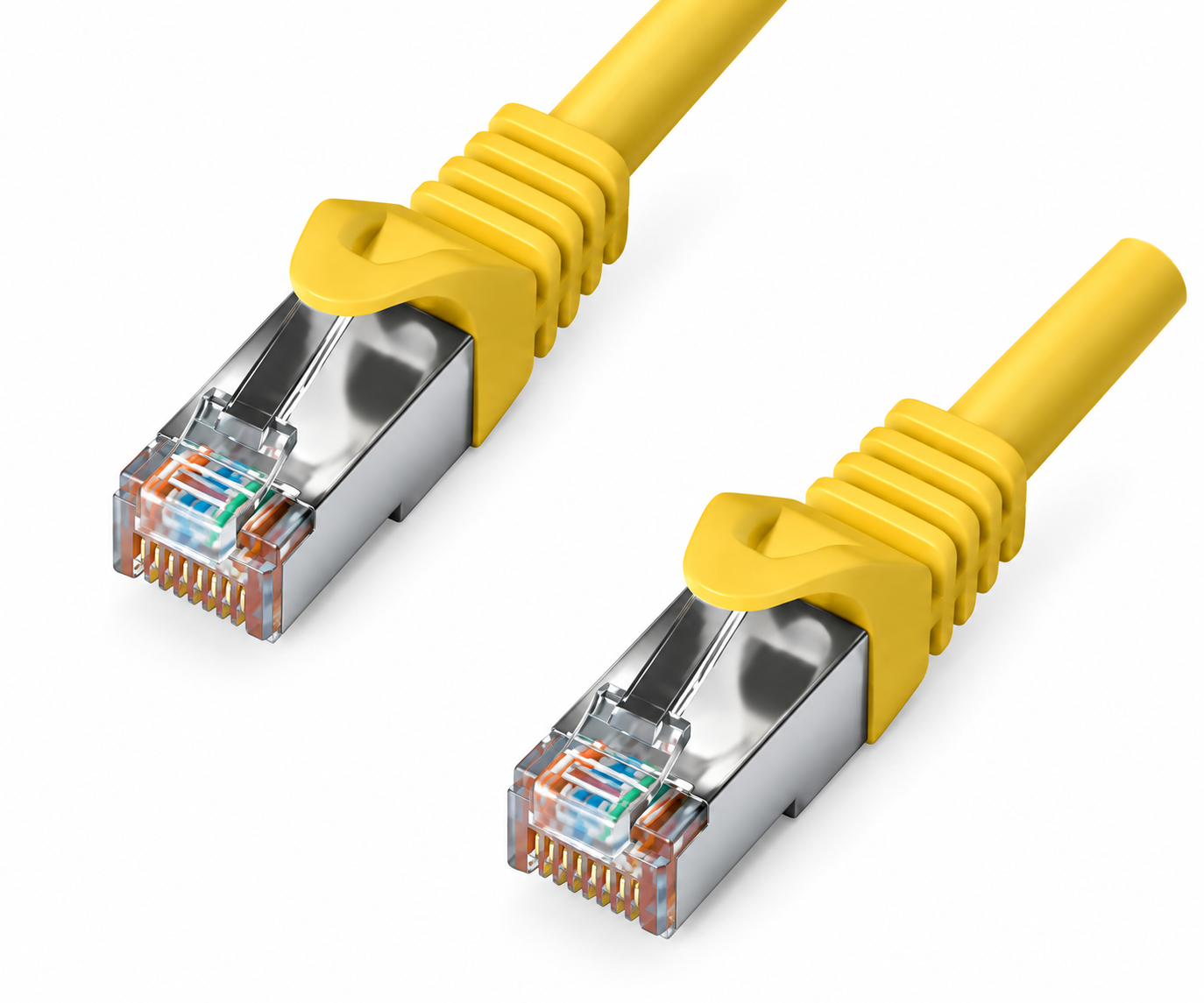

HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, yellow, DINIC polybag, length 5m
.png "HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, yellow, DINIC polybag, length 5m")
HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, yellow - 5.0 m (DINIC Polybag)
Double-shielded Cat. 6 patch cable with solid copper strands and LSZH sheath for professional network cabling.
Technical highlights
- Cat. 6 patch cable for Gigabit Ethernet, bandwidth up to 250 MHz
- Shielding: PiMF (pair in metal foil) + S/FTP (metal foil + braided shield) for high EMC robustness
- Conductor: CU/solid copper strands, wire cross-section AWG27
- Plug: 2× RJ45, moulded; gold-plated contacts
- Moulded bend protection with strain relief and latching lug protection
- Length labelling directly on the plug (quick identification in the patch panel)
- 1:1 assignment in accordance with EIA/TIA 568B
- Jacket material: LSZH (low-smoke, halogen-free), colour: yellow
Cable description
This HQ Cat.6 patch cable is designed for structured copper cabling in professional environments. The construction with PiMF and additional overall shielding (S/FTP) reduces electromagnetic interference and supports stable data transmission in dense installations, e.g. in server cabinets and technical rooms.
Solid copper strands (CU) in AWG27 offer reliable electrical properties with good flexibility for patching. Moulded RJ45 plugs with gold-plated contacts and moulded bend protection with strain relief increase operational reliability with frequent reconnection. The integrated latching lug protection protects the locking mechanism on patch panels and switch ports.
The LSZH cable sheath (low-smoke, halogen-free) is suitable for installations where reduced smoke gas development is required. The yellow colouring supports visual segmentation and quick assignment of network segments.
Areas of application
- Patch panel switch connections in 19" switch cabinet / server cabinet
- Office IT and system integration (floor distributors, workstation connections)
- Data centre environments (top-of-rack / end-of-row patching)
- Industrial networks and automation (EMC-affected areas)
- Building technology and structured LAN cabling
Technical data
| Article number | C6N-5-GE |
| Category | Cat.6 |
| Plug connector | 2× RJ45 (8P8C), moulded |
| Contact surface | gold-plated |
| Assignment | 1:1 according to EIA/TIA 568B |
| Conductor | CU / solid copper strands |
| Conductor cross-section | AWG27 |
| Shielding | PiMF + S/FTP (double shielded: foil + braid) |
| Frequency | 250 MHz |
| Jacket material | LSZH (low-smoke, halogen-free) |
| Colour | Yellow colour |
| Cable length | 5,0 m |
| Special features | Length indication on the plug, locking lug protection, kink protection with strain relief |
| Packaging | DINIC polybag with Euro hole |
| Packaging dimensions (W×H) | 152 mm × 273 mm |
| EAN CODE | 4032528023397 |
Compatibility
- For RJ45 Ethernet ports (8P8C) on switches, patch panels, routers, firewalls, servers and end devices
- Suitable for structured Cat.6 cabling and Gigabit Ethernet applications
Scope of delivery
- 1× Cat.6 patch cable PiMF/S-FTP, LSZH, yellow, 5.0 m
- Individually packed in DINIC polybag (Eurohole)
DINIC is a brand of MAG GmbH - pre-assembled cable and connection solutions for professional applications.
Keywords: Cat.6 patch cable PiMF S/FTP LSZH solid copper AWG27 RJ45 5m yellow DINIC
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
