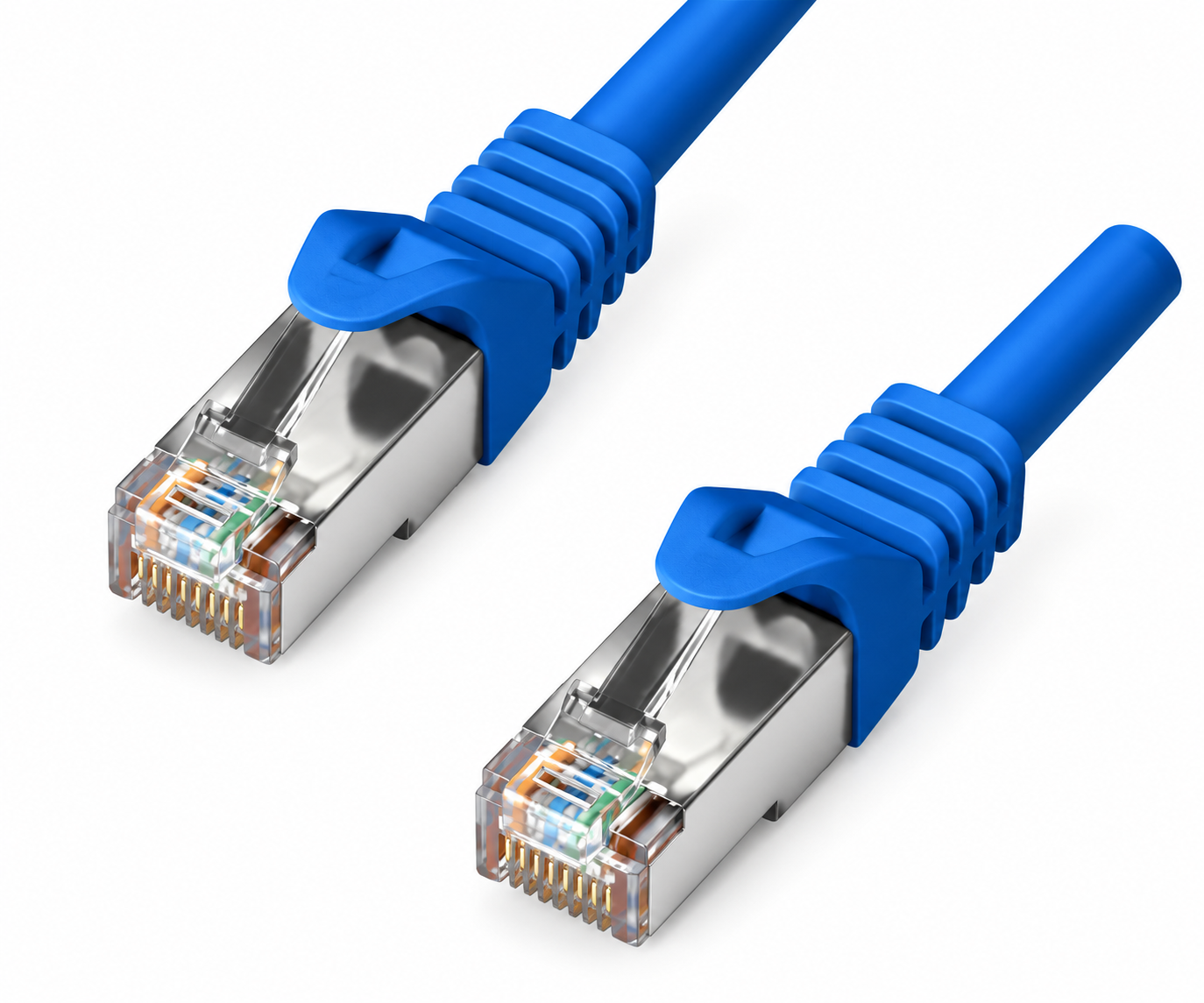

HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, blue, DINIC polybag, length 5m
.png "HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, blue, DINIC polybag, length 5m")
HQ Cat.6 patch cable PiMF/S-FTP (S/FTP), LSZH, CU, AWG27 - 5 m, blue (DINIC)
Double-shielded Cat. 6 network cable with halogen-free LSZH sheath and solid copper conductors for professional network installations.
Technical highlights
- Cat.6 patch cable, suitable for structured cabling up to 250 MHz
- Shielding: PiMF (pair in metal foil) + S/FTP (foil + braided shield) for high EMC robustness
- Conductor: CU / solid copper strands, conductor cross-section AWG 27
- Plug: 2× RJ45, moulded; gold-plated contacts
- 1:1 assignment according to EIA/TIA 568B
- Moulded bend protection with strain relief; additional latching lug protection
- Length indication directly on the connector for quick identification in the patch panel
- Sheath material: LSZH (low-smoke, halogen-free); colour: blue; length: 5.00 m
Description: blue
This HQ Cat.6 patch cable is designed for professional Ethernet connections in office, IT and industrial environments. The LSZH cable sheath (low-smoke, halogen-free) supports installations in areas with increased requirements for smoke development and corrosive gas formation.
The shielded construction combines PiMF (each wire pair in metal foil) with an additional overall shield (foil plus braided shield). This reduces interference from electromagnetic fields - an advantage in densely populated cable routes, patch panels and in the vicinity of supply lines.
Moulded RJ45 plugs with gold-plated contacts, moulded bend protection and latching lug protection increase mechanical reliability in daily patch operation. The length labelling on the connector makes it easier to clearly assign the connectors during service and for extensions.
Areas of application
- Patch panels and floor distributors in structured building cabling
- Switch and router connections in network and server rooms
- Workstation cabling in specialised trade/system house rollout
- Control cabinet construction and industrial automation (Ethernet connections with EMC requirements)
- Service, conversion and expansion work with the need for clear length labelling
Technical data
| Article number | C6N-5-BL |
| EAN CODE | 4032528023380 |
| Category | Cat.6 |
| Frequency | 250 MHz |
| Connector type | 2× RJ45 (moulded), gold-plated contacts |
| Assignment | 1:1 according to EIA/TIA 568B |
| Conductor | CU / solid copper strands, AWG 27 |
| Shielding | PiMF (paired foil shield) + S/FTP (foil + braid) |
| Jacket material | LSZH (low-smoke, halogen-free) |
| Colour: Blue | Blue colour |
| Cable length | 5,00 m |
| Mechanical features | Kink protection with strain relief, locking lug protection, length indication on plug |
| Packaging | DINIC polybag with Euro hole |
| Packaging dimensions (W × H) | 152 mm × 273 mm |
Compatibility
For end devices and network components with RJ45 Ethernet interface (e.g. switch, router, patch panel, server, PC, IP end devices) within Cat.6 cabling routes.
Scope of delivery
1× Cat.6 patch cable RJ45-RJ45, 5 m, blue, in DINIC polybag.
DINIC is a brand of MAG GmbH (professional cable and adapter programme).
