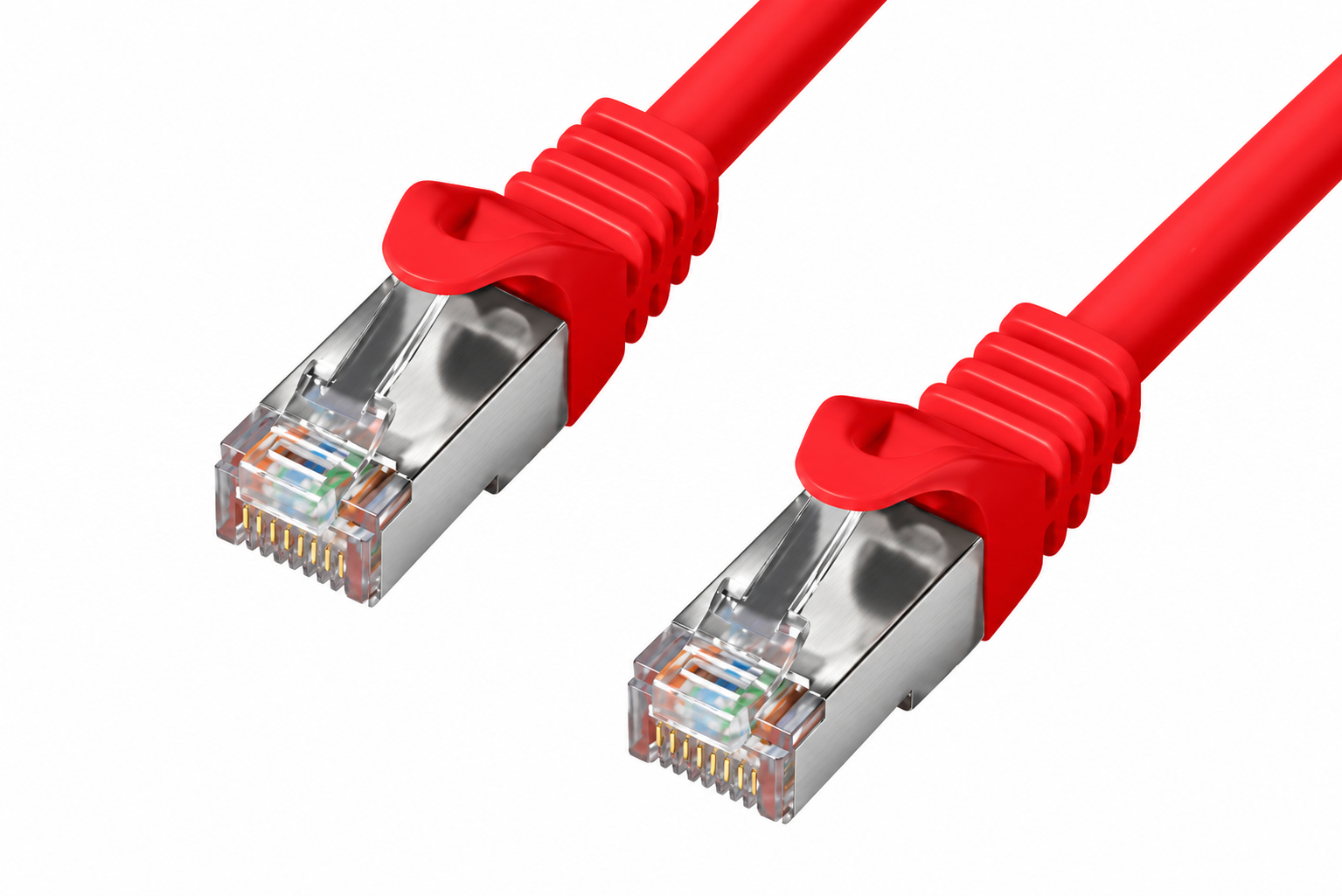

HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, red, DINIC polybag, length 1m
.png "HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, red, DINIC polybag, length 1m")
HQ Cat.6 patch cable PiMF / S-FTP - 1 m - LSZH - solid copper - AWG27 - red
Double-shielded Cat. 6 patch cable (PiMF/S-FTP) for structured cabling and Gigabit Ethernet environments.
Technical highlights
- Cat.6 patch cable for Ethernet applications up to 250 MHz
- Shielding: PiMF (foil in pairs) + S/FTP (overall shielding foil + braiding) for increased EMC safety
- Conductor: solid copper (CU), 4 x 2 cores, AWG 27
- Outer jacket: LSZH (Low Smoke Zero Halogen) - low halogen for installation-related environments
- Connector: RJ45 (8P8C) on both sides, 1:1 pin assignment in accordance with EIA/TIA-568B
- Latching lug protection to reduce damage during manoeuvring
- Length labelling on the connector for quick identification in the patch field
- Colour: Red - suitable for colour segmentation/port and VLAN assignment
Description of the
This HQ Cat.6 patch cable is designed for professional network cabling with increased requirements for interference immunity and signal quality. The PiMF/S-FTP construction combines foil shielding in pairs with additional overall shielding and thus supports stable data transmission in environments with electromagnetic influences (e.g. close to control cabinets, high port density, parallel power supply).
Solid copper conductors (CU) in AWG 27 ensure defined electrical properties for patch and patch cords. The LSZH sheath is designed for areas close to installations where a low-halogen cable design is required.
Practical features such as locking lug protection and length labelling facilitate handling in the patch panel, reduce the risk of failure due to damaged locking lugs and speed up service and documentation processes.
Areas of application
- Structured building cabling (floor distributors, patch panels, data outlets)
- Control cabinet construction and industrial automation (EMC-related environments)
- Data centre, server cabinet and switching infrastructure with high packing density
- Office IT, system integration, rollout and service cabling
- Measurement/test set-ups and temporary marshalling
Technical data
| Category | Cat.6 |
| Frequency | up to 250 MHz |
| Connector type | RJ45 (8P8C) <> RJ45 (8P8C) |
| Contact assignment | 1:1 according to EIA/TIA-568B (straight) |
| Shielding | PiMF + S/FTP (foil per pair, foil + braiding total) |
| Cores / structure | 4 x 2 (twisted pair) |
| Conductor material | Copper (solid copper, CU) |
| Conductor cross-section | AWG 27 |
| Jacket | LSZH |
| colour | Red colour |
| length | 1 m |
| Plug features | Latching nose protection, length labelling |
| Packaging | Single packaging (polybag, Euro hole) |
Compatibility
For all Ethernet devices and components with an RJ45 interface, e.g. switches, routers, patch panels, keystone modules, network sockets, servers, PCs, industrial Ethernet end devices (RJ45).
Scope of delivery
1x HQ Cat.6 patch cable PiMF/S-FTP, 1 m, red (RJ45 to RJ45), individually packaged.
DINIC is a brand of MAG GmbH - product range for professional IT and connectivity components.
Keywords: Cat.6 patch cable RJ45, PiMF S/FTP, LSZH low halogen, solid copper AWG27, 1m red, DINIC MAG GmbH
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
