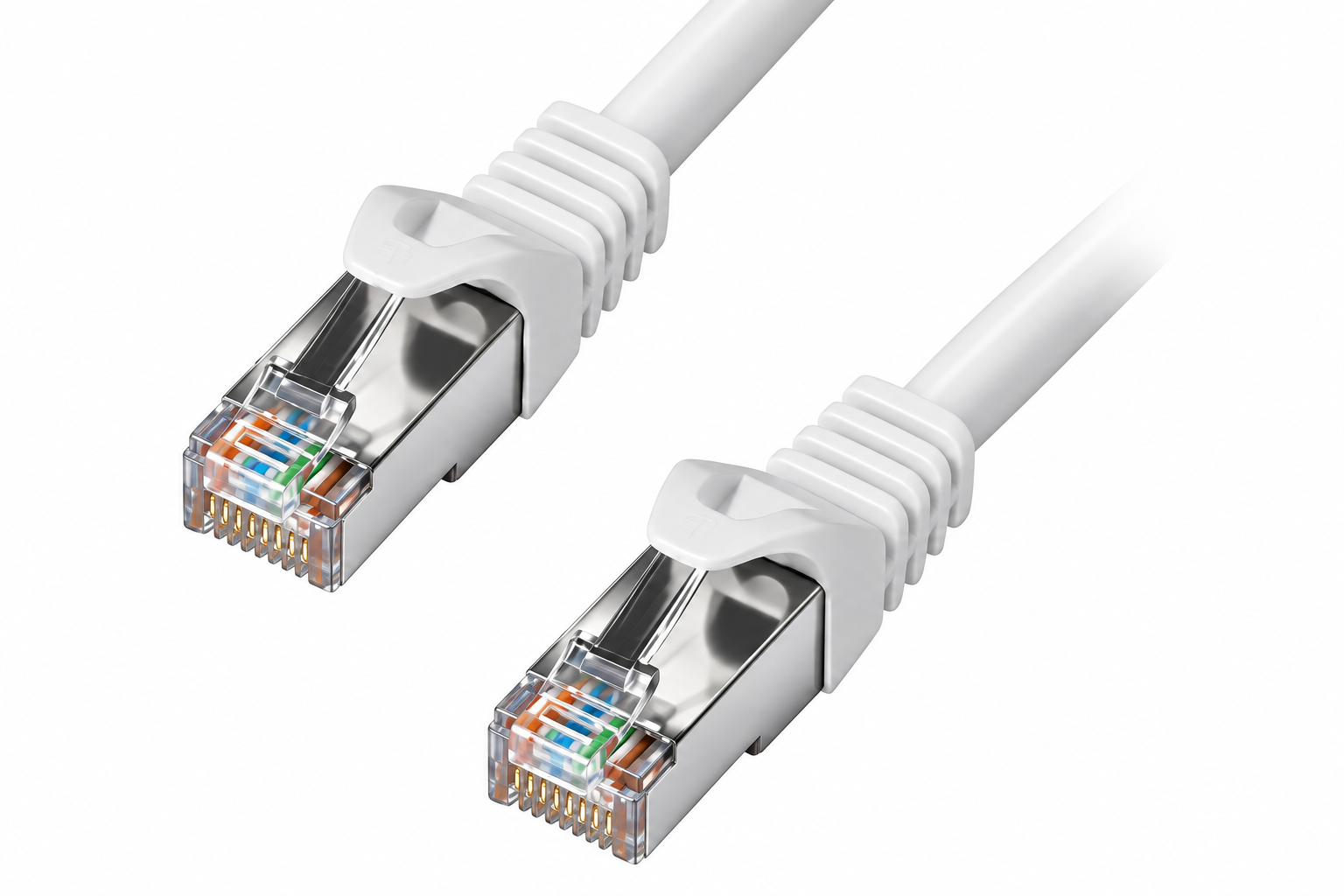

HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, white, DINIC polybag, length 10m
.png "HQ Cat.6 patch cable PiMF/S-FTP, LSZH, CU, AWG27, white, DINIC polybag, length 10m")
HQ Cat.6 patch cable PiMF/S/FTP - 10 m, LSZH, CU, AWG27, white
Double-shielded Cat.6 patch cable with solid copper strands for structured network cabling.
Technical highlights
- Cat.6 patch cable for Gigabit Ethernet applications, bandwidth up to 250 MHz
- Plug: 2× RJ45, moulded; gold-plated contacts
- Shielding: PiMF (foil in pairs) + S/FTP (additional overall shield made of foil and braiding) for increased EMC stability
- Conductor: AWG27 solid copper strands (CU) for reliable signal transmission
- Jacket material: LSZH (low-smoke, halogen-free) for professional installation environments
- Moulded bend protection with strain relief to reduce bending radius-related failures
- Latching nose protection (plug protection) to reduce damage during patching
- Length indication directly on the connector for quick assignment in the patch panel
Description
This HQ Cat.6 patch cable is designed for use in structured copper cabling. The construction with solid copper strands (AWG27) supports stable transmission values in typical network links and patch panel connections.
The double shielding combines foil in pairs (PiMF) with additional overall shielding (S/FTP: foil + braiding). This makes the cable particularly suitable for environments with increased electromagnetic interference, e.g. in technical rooms, rack installations or with parallel cable routing.
Moulded RJ45 plugs with moulded kink protection, strain relief and latching lug protection increase the mechanical robustness in daily patch operation. The length labelling on the plug simplifies documentation, maintenance and conversions in existing installations.
Areas of application
- Patch panel and rack cabling (data centre, server room, technical room)
- Office and building IT, floor distributors, structured copper cabling
- System integration, switch/router connection, workstation and device patching
- Industrial environments with EMC requirements (e.g. close to control cabinets)
Technical data
| Cable category | Cat.6 |
| Plug type | 2× RJ45, moulded |
| Contact surface | gold-plated |
| Assignment | 1:1 according to EIA/TIA 568B |
| Conductor | AWG27, CU (solid copper strands) |
| Shielding | PiMF (pair foil) + S/FTP (foil + braid), double shielded |
| Frequency | 250 MHz |
| Jacket material | LSZH (low-smoke, halogen-free) |
| Colour | white colour |
| length | 10 m |
| Kink protection / strain relief | moulded, with strain relief |
| Plug protection | Latching lug protection |
| Labelling | Length specification on the plug |
| Packaging | DINIC polybag with Euro hole |
Compatibility
For Ethernet devices with RJ45 port, e.g. switches, routers, patch panels, network sockets, servers, NAS, IP telephones and industrial Ethernet components (copper-based).
Scope of delivery
- 1× HQ Cat.6 patch cable PiMF/S/FTP, 10 m, white
DINIC is a trademark of MAG GmbH.
Keywords: Cat.6 patch cable, RJ45, PiMF, S/FTP, LSZH, solid copper AWG27, 10m, DINIC, white
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
