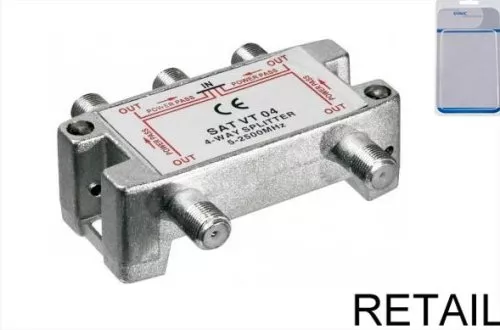

SAT distributor for satellite systems, 4-way, 5-2500 MHz (DINIC SAT-Y4)
4-way distributor for SAT IF/digital signals with F-couplers, high shielding and DC feed-through.
Technical highlights
- Frequency range: 5-2500 MHz (SAT applications)
- 4-fold signal distribution (distributor/splitter design)
- Connections via F couplings (F connector environment)
- Shielding: 100 dB for digital signals
- DC feed-through at all connections (supply voltage/control signals are looped through)
- Distribution attenuation: 12.3 dB at 1750 MHz
- Return loss: 14 dB at 1750 MHz
- Packaging: DINIC blister (compact storage and counter packaging)
Description: DINIC
The DINIC SAT-Y4 is a 4-way SAT distributor for splitting a SAT signal in the frequency range from 5 to 2500 MHz. The signal is routed via F-couplers and is designed for use in coaxial SAT distribution structures.
With 100 dB shielding, the distributor supports low-interference transmission of digital signals. The DC feed-through on all connections enables the feed-through of supply voltage and control signals (e.g. for supply/control in the SAT line). Defined attenuation and return flow values support a reproducible design of the distribution chain.
Areas of application
- SAT distributions in small installations (service, expansion, test set-ups)
- Building technology and system integration in the TV/SAT environment
- Technical rooms, rack/media distributions, temporary signal distributions
- Specialised trade/project business: spare parts and accessories position
Technical data
| Item number | SAT-Y4 |
| Version | SAT distributor, 4-way |
| Frequency range | 5-2500 MHz |
| Connection technology | F-couplings |
| Shielding | 100 dB (digital signals) |
| DC continuity | at all connections |
| Distribution attenuation | 12.3 dB at 1750 MHz |
| Return loss | 14 dB at 1750 MHz |
| Packaging | DINIC blister |
| EAN | 4032528028767 |
| Weight | approx. 0.102 kg per piece |
| Packaging dimensions | 116 mm × 140 mm × 40 mm (W × H × D) |
Compatibility
- For SAT distributions in the 5-2500 MHz range
- For coaxial lines with F connectors (F coupling connection on the distributor)
- Suitable for installations with DC feed-through at all connections (power supply/control in the SAT line)
Notes
- This SAT distributor enables the connection of four receivers (receiver, TV).
- It is not possible to operate four devices at the same time - only one receiver can be used at a time.
Scope of delivery
1× 4-way SAT distributor (DINIC SAT-Y4), DINIC blister pack
DINIC is a trademark of MAG GmbH.
Keywords: SAT distributor 4-way, 5-2500 MHz, F-coupling, 100 dB shielding, DC feed-through, DINIC SAT-Y4
