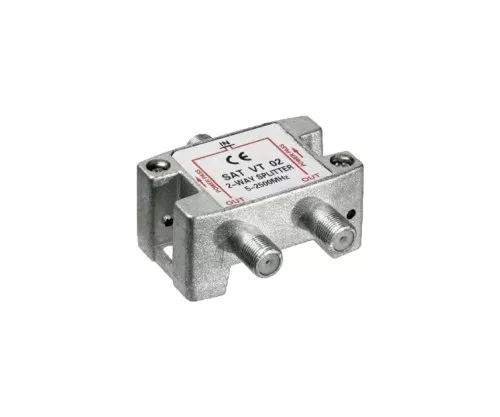

SAT distributor for satellite systems, 2-way, PB 5-2500 MHz, DINIC Polybag

• Frequency range: 5-2500 MHz (SAT IF / digital signals)
• Connections: F-couplers (1× input, 2× output)
• Shielding: 100 dB
• DC feed-through at all connections (e.g. for supplying/forwarding control voltages)
• Distribution attenuation: 7.5 dB at 1750 MHz
• Return loss: 14 dB at 1750 MHz
• Design/packaging: DINIC polybag

The 2-way SAT distributor is designed for the frequency range 5-2500 MHz and is suitable for splitting signals in SAT distributions with F connection technology. The design with 100 dB shielding supports low-interference transmission of digital signals in typical installation environments (e.g. technical room, rack, distribution point).

The DC feed-through at all connections means that control signals or supply voltages can be passed on in the system path. Defined attenuation and return loss values support reproducible planning in professional SAT infrastructures.

• Building technology: SAT distribution points in multi-party and commercial properties
• System integration: SAT feed in AV/IPTV environments (signal-carrying coaxial lines)
• Service & maintenance: temporary signal distribution for measurement and testing work
• Network/technology rooms: structured coax cabling with F-connectors

• For coaxial cables with F connectors (SAT/TV cabling)
• For SAT receivers, TV sets with SAT tuner and SAT distribution components with F connection
• Can be used in the signal path between LNB/distribution technology and end devices (depending on application)

• This SAT distributor enables the connection of two receivers (receiver, TV).
• It is not possible to operate two devices at the same time - only one receiver can be used at a time.

• 1× 2-way SAT distributor (F-coupling 1× input / 2× output), packed in DINIC polybag
