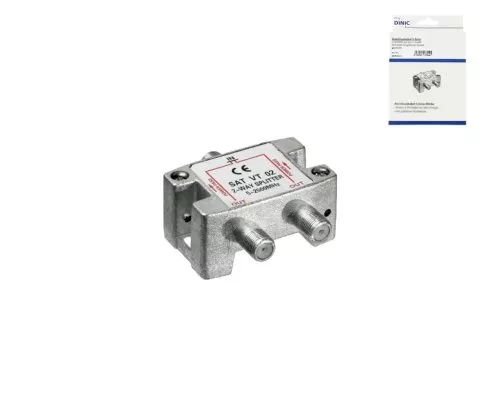

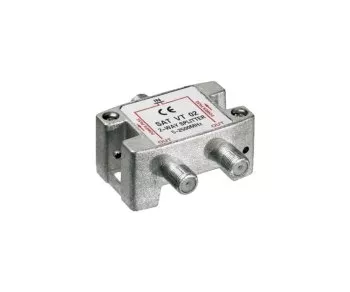

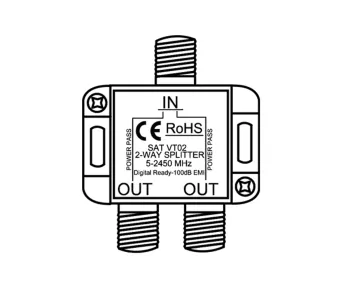

SAT distributor for satellite systems, 2-way, box 5-2500 MHz, DINIC box with Eurohole

• Frequency range: 5-2500 MHz (SAT/IF, digital compatible)
• Connections: 1× input / 2× output via F couplings (F sockets)
• Shielding factor: 100 dB (for low-interference signal distribution)
• DC feed-through at all connections (supply voltage/control signals are looped through)
• Distribution attenuation: 7.5 dB at 1750 MHz
• Return loss: 14 dB at 1750 MHz
• Packaging: DINIC box with Euro hole (suitable for specialised distribution)

The 2-way SAT distributor is designed for the distribution of satellite IF signals in the range from 5 to 2500 MHz. Three F couplings (1× input, 2× output) can be used to split coaxial lines in installations in a structured manner.

The high shielding of 100 dB supports stable transmission of digital signals even in EMC-loaded environments. The DC feed-through on all ports means that supply voltage and control signals (e.g. for LNB supply) can be looped through - relevant for practical SAT cabling.

With defined distribution attenuation and return loss, the distributor is suitable for standardised SAT distributions where a compact 2-way branch is required.

• Building technology: SAT feed lines and floor/strand distributions
• System integration: SAT cabling in commercial properties, office space, hospitality
• Service & maintenance: expansion/restructuring of existing coax installations
• Specialist retailers/project business: standardised SAT accessories for installation sets

Product type	SAT distributor / 2-way
Frequency range	5-2500 MHz
Connections	F couplings (F sockets): 1× input, 2× output
Shielding	100 dB
DC continuity	At all connections
Distribution attenuation	7.5 dB at 1750 MHz
Return loss	14 dB at 1750 MHz
Packaging	DINIC box with Euro hole
Article number	SAT-Y-KB
EAN CODE	4032528039428
weight	approx. 0.072 kg / piece

• For coax installations with F connections (SAT/IF, 5-2500 MHz)
• Suitable for signal distribution to two outlets in SAT distributions
• DC feed-through supports constellations with voltage/control signal feed-through

• This SAT distributor enables the connection of two receivers (receiver, TV).
• It is not possible to operate two devices at the same time - only one receiver can be used at a time.

• 1× 2-way SAT distributor (5-2500 MHz) with F couplings (1× input, 2× output)

DINIC is a trademark of MAG GmbH.
