SAT cable connector set, 2x F-connector + coupler. 2x 7.3mm F-connector with one connector in a set, DINIC box with Euro hole
.webp "Satellite Cable Connector Set, 2x F-Connector + Coupling. 2x 7.3mm F-connectors with one connector in the set")
.webp "Preview: Satellite Cable Connector Set, 2x F-Connector + Coupling. 2x 7.3mm F-connectors with one connector in the set")
SAT cable connector set, 2x F-connector + coupler. 2x 7.3mm F-connector with one connector in a set, DINIC box with Euro hole
.png "Satellite Cable Connector Set, 2x F-Connector + Coupling. 2x 7.3mm F-connectors with one connector in the set")
SAT cable connector set - 2x twist-on F-connector (up to 7.3 mm) + 1x F-connector (coupling) - DINIC box with Euro hole
Assembly and service set for F-connections on coaxial/SAT cables (outer diameter up to 7.3 mm).
Technical highlights

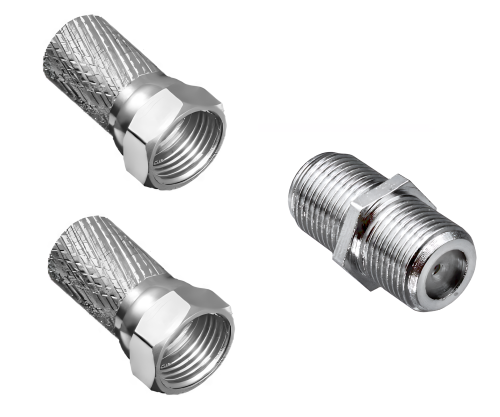

- Set contents: 2x twist-on F-connector (F-connector) + 1x F-connector (F-coupling, F-socket/F-socket)
- Designed for SAT/coaxial cables with an outer diameter of up to 7.3 mm
- Full metal design for robust, durable plug connections
- Twist-on assembly: low-tool, quick to assemble (service and construction site operation)
- F connector with large, wide nut for good grip and definable tightening
- F connector for coupling two coax cables already assembled with F connectors (range/length extension)
- Supplied in DINIC sales/storage box with Euro hole (counter, specialised trade, installation vehicle)
- Item number: SAT-ST-BU-KB | EAN: 4032528042282
Description: SAT-ST-BU-KB
The DINIC connector set is designed for the reliable creation and extension of F-connections in SAT and coaxial networks. The two twist-on F connectors are suitable for coaxial cables with an outer diameter of up to 7.3 mm and support fast, reproducible assembly in installation and service applications.
The included F-connector (F-coupling) connects two cables, each of which is equipped with an F-plug. This allows routes to be extended, cable sections to be coupled or existing installations to be neatly retrofitted - without having to replace entire cable runs.
The all-metal design and the wide nut of the F connector support a mechanically stable connection and reliable contacting in everyday construction site and control cabinet environments.
Areas of application
- Building technology: SAT distributions in apartment blocks and commercial properties
- Service & maintenance: replacement/assembly of F connectors, fast line extension
- System integration: Receiver/tuner connections, measurement and test environments
- Antenna construction: coupling of coax sections in the installation process
- Specialist trade/project business: customisable accessory set for installation applications
Technical data
| Product type | SAT/coaxial accessories - F-connector & F-connector set |
| Connector | 2x F-connector (twist-on) + 1x F-connector (F-socket/F-socket) |
| Cable compatibility | Coaxial/SAT cable, outer diameter up to 7.3 mm |
| Cable material | Metal version (plug & connector) |
| Mounting type | Twist-on/screw-on mounting (F-connector) |
| Packaging | DINIC box with Euro hole |
| Article number | SAT-ST-BU-KB |
| EAN CODE | 4032528042282 |
Compatibility
Suitable for coaxial/SAT installations with an F interface, e.g. LNBs, multiswitches, SAT receivers, TV tuners, SAT junction boxes and measuring and test equipment with an F connection. Design of the twist-on F connectors for cable outer diameters up to 7.3 mm.
Scope of delivery
- 2x twist-on F connectors for coax/SAT cables up to 7.3 mm
- 1x F connector (F coupling) for connecting two F plugs
- DINIC box with Euro hole
DINIC is a brand of MAG GmbH - ready-made cable and adapter accessories for professional applications.
Keywords: SAT connector set, untwist F-connector 7.3mm, F-coupling/F-connector, coaxial accessories, DINIC
