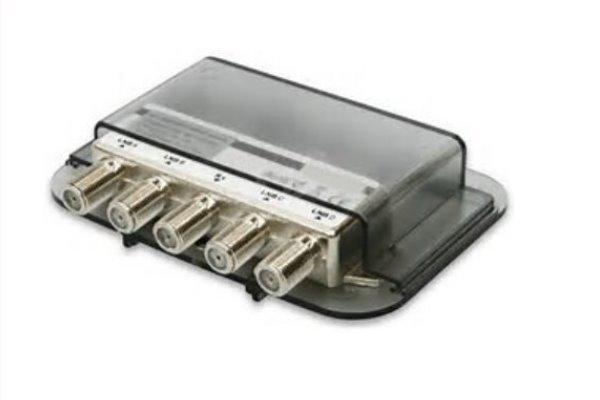

DiSEqC LNB switch 4/1 for 4 LNBs on 1 TV
DiSEqC LNB switch 4/1 for 4 LNBs on 1 TV
DiSEqC 1.0 (A/B) SAT switch for selecting up to 4 LNB signals on one subscriber/receiver.
Technical highlights
- Switching matrix 4→1: 4 inputs for single or twin LNBs, 1 output to the end device (SAT receiver/TV-SAT)
- DiSEqC control signals: DiSEqC A/B, DiSEqC 1.0
- Frequency band: 950-2150 MHz (SAT IF)
- Insertion loss: max. 4.0 dB
- Echo attenuation: min. 8 dB; Isolation: 20 dB
- Impedance: 75 Ohm
- Current feed-through and switching voltage: yes (supply via receiver), operating voltage 10-21 V DC, max. current consumption 500 mA
- Prepared for outdoor use: including weather protection cover; operating temperature -34 °C to 60 °C
Product description
The DiSEqC LNB switch 4/1 enables the switching of up to four LNBs to one receiver/subscriber output. The desired LNB input is selected via DiSEqC 1.0 (A/B) control signals from the end device - suitable for multi-satellite installations with one subscriber connection.
The switch is designed for the SAT IF band (950-2150 MHz) and supports power feed-through to the LNB supply via the receiver. The weather protection cover supplied reduces the weather load on the connections and supports robust outdoor installation.
Areas of application
- Building technology and antenna construction: Multi-satellite systems (1 subscriber) with several LNB positions
- Installation/service: Conversion of SAT systems to additional satellite positions without multiswitches
- Specialist trade/system integration: test set-ups, workshop and service environments
- Object installation: protected outdoor installation in SAT distribution boxes (with weather protection)
Technical data
| Item number | SAT-4-1TV |
| EAN CODE | 4032528027760 |
| Inputs / Output | 4× LNB input / 1× receiver output (SAT-ZF) |
| Control signals | DiSEqC A/B, DiSEqC 1.0 |
| Frequency band | 950-2150 MHz |
| Impedance | 75 Ohm |
| Insertion loss | max. 4.0 dB |
| Echo attenuation / isolation | min. 8 dB / 20 dB |
| Current conduction / switching voltage | yes / yes |
| Operating voltage | 10-21 V DC |
| Max. Current consumption | 500 mA |
| Operating temperature | -34 °C to 60 °C |
| Weather protection | Weather protection cover included |
| Packaging | DINIC blister pack |
| Packaging dimensions (W×H×D) | 110 × 220 × 20 mm |
| weight | approx. 0.095 kg / piece |
Compatibility
- For SAT receivers/end devices with DiSEqC 1.0 support (A/B)
- For installations with up to 4 single or twin LNBs and one subscriber output
- Designed for SAT IF 950-2150 MHz, 75 Ohm distributions
Scope of delivery
- 1× DiSEqC LNB switch 4/1
- 1× weather protection cover
