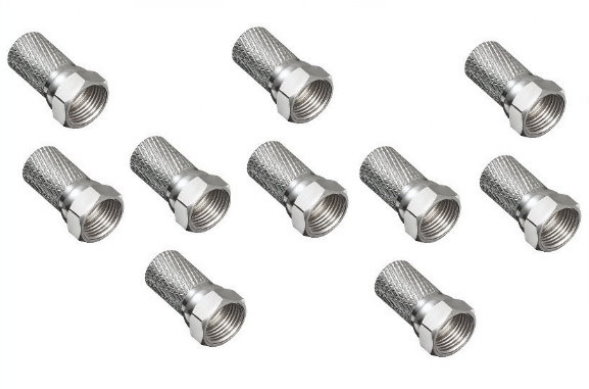

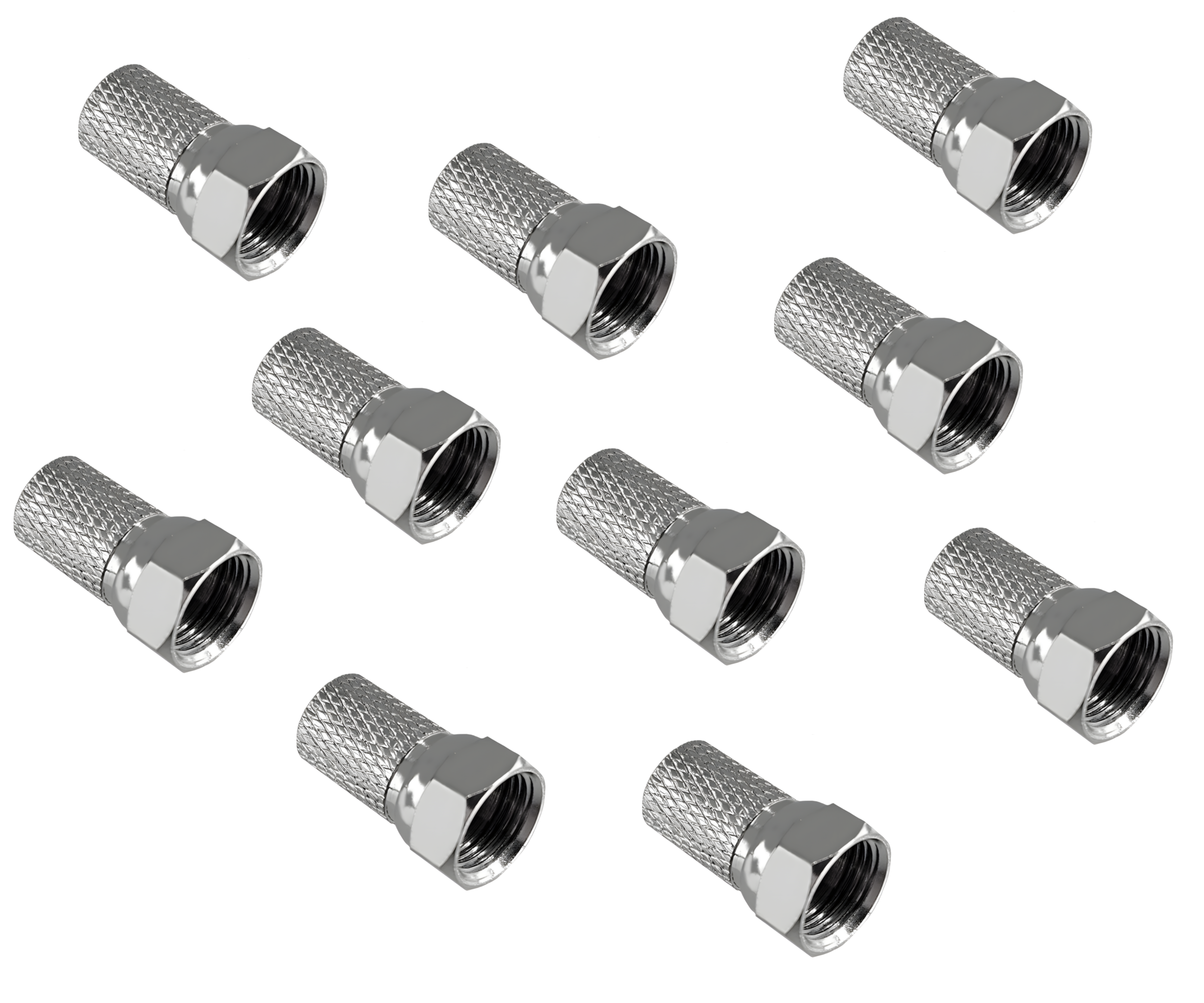

DINIC twist-on F-connector for cable 7.3mm, quantity: 10 pieces, DINIC polybag, length 20mm

• Plug type: F twist-on plug (screw coupling, type F)
• For SAT/coax cable with outer diameter: max. 7.3 mm
• Design/length: approx. 20 mm
• Material/surface: Zinc-nickel (robust metal design)
• Large, wide nut for a secure fit and good grip during installation/service
• Quick assembly in the field (twist-on assembly without crimping/compression tool)
• Packaging unit: 10 pieces, DINIC polybag - practical for service and specialised trade
• Article number: SAT-ST-73-10

The DINIC twist-on F connector is designed for the fast and reliable assembly of SAT/coaxial cables up to Ø 7.3 mm. The twist-on design enables quick assembly directly on site - ideal for installation and maintenance applications where flexible and tool-free processing is required.

The zinc-nickel design in metal construction ensures a robust plug connection in a professional environment. The large, wide nut facilitates the defined tightening and loosening of the F-connection - even with frequent service access or confined installation situations.

• TV/SAT building cabling (subscriber connections, loop-throughs, service points)
• System integration and installation in residential and commercial properties
• Service, maintenance and replacement of existing systems
• Headends, multi-switch and distribution technology (F interfaces)
• Specialised trade/project business: stock-friendly small packaging (10 units)

Product type	Twist-on F plug, type F
Cable holder	SAT/coaxial cable, outer diameter max. 7.3 mm
Design / length	approx. 20 mm
Material / surface	Zinc-nickel
construction	Metal design, large/wide nut
Packaging	DINIC polybag
quantity	10 pieces
Item number	SAT-ST-73-10
EAN CODE	4032528033914
weight	0.045 kg per piece

For coax/SAT cables up to Ø 7.3 mm to create an F connector (type F, screw coupling) on typical TV/SAT components such as multi-switches, distributors, LNBs, SAT sockets, receivers and measuring devices with an F interface.

10 × DINIC twist-on F plugs for cable Ø up to 7.3 mm, in DINIC polybag.
