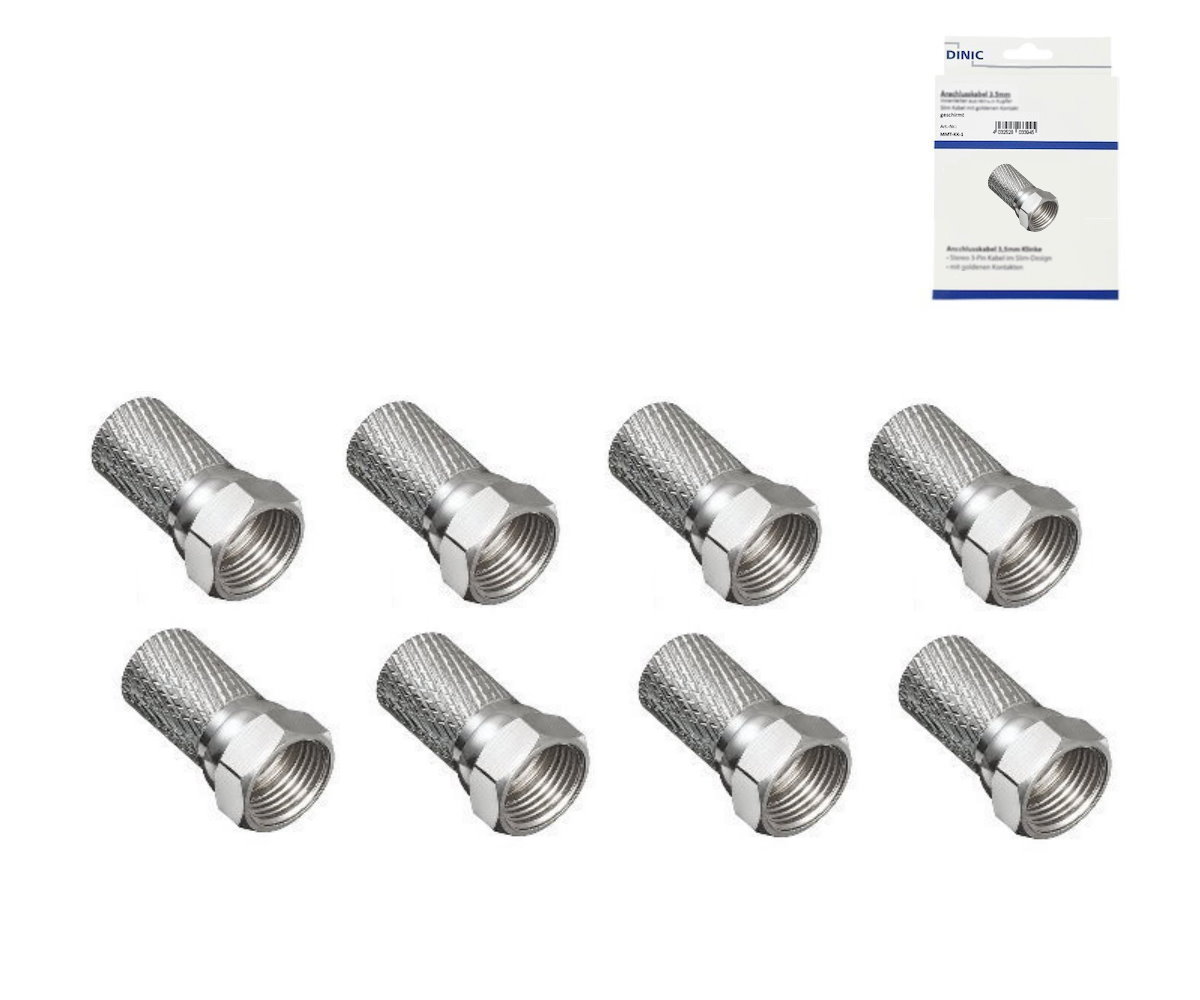

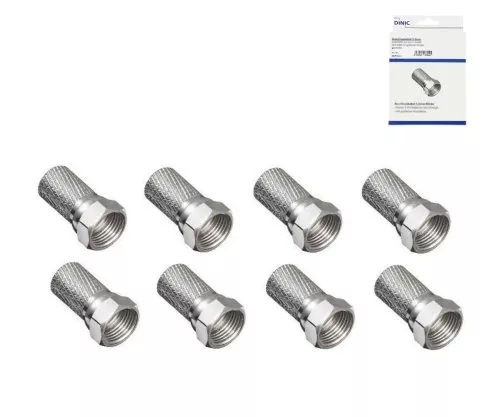

DINIC F twist-on connector for 7.3mm cable, copper, quantity: 8 pieces, DINIC box with Euro hole, length 20mm
.jpg "DINIC F twist-on connector for 7.3mm cable, copper, quantity: 8 pieces, DINIC box with Euro hole, length 20mm")
DINIC F twist-on connector for coax/SAT cables up to 7.3 mm - box of 8, connector length 20 mm
Twist-on F connector (type F, screw coupling) for 75 Ohm cable networks - easy to install in service and installation operations.
Technical highlights
- Twist-on F connector (type F, screw coupling) for coaxial/SAT cables
- Designed for cable outer diameter up to max. 7.3 mm
- Plug length: 20 mm - compact design for common SAT assemblies
- Metal design with zinc-nickel surface for robust, low-corrosion installation
- Large, wide nut for secure tightening and easy handling (even with installation gloves)
- Low-tool assembly: unscrewing instead of crimping/compressing (typical for service applications)
- Packaging: DINIC box (cardboard box) with Euro hole - suitable for specialised trade/range management
- Delivery unit: 8 pieces - practical for maintenance, retrofitting and small series
Product description
The DINIC twist-on F connector is designed for the quick assembly of 75 Ohm coaxial cables in the TV/SAT environment. The twist-on assembly allows the connector to be screwed onto the prepared cable without special crimping tools - an advantage for service, repair and retrofitting work on site.
The large, wide nut supports controlled tightening on F sockets (e.g. on LNBs, multiswitches or aerial sockets) and facilitates installation in confined installation situations. The metal version with zinc-nickel surface is designed for robust use in installation environments.
Designed for coax/SAT cables with an outer diameter of up to 7.3 mm and a connector length of 20 mm - suitable for common cable structures in building networks and distribution systems.
Areas of application
- TV/SAT installations in residential and functional buildings (building technology)
- Installation and maintenance of SAT distribution networks (multi-switch/distribution systems)
- System integration and service operations (fault clearance, replacement, retrofitting)
- Specialised trade/assortment articles for installation accessories (DINIC box with Eurohole)
- Measuring and test set-ups in antenna construction (temporary assemblies)
Technical data
| Plug type | F plug (twist-on, screw coupling) |
| Cable type | Coax/SAT cable (75 Ohm, typ.) |
| Suitable cable outer diameter | max. 7.3 mm |
| Plug length | 20 mm |
| Material/surface | Metal, zinc-nickel surface |
| Design feature | Large, wide nut |
| Packaging | DINIC box (cardboard) with Euro hole |
| Packaging dimensions (W × H × D) | 110 mm × 140 mm × 20 mm |
| Quantity | 8 pieces |
| weight | approx. 0.046 kg per piece |
| Item number | SAT-ST-73-8-KB |
| EAN CODE | 4032528037677 |
Compatibility
- For 75 Ohm coax/SAT cables with an outer diameter of up to 7.3 mm
- For devices/components with F socket (e.g. LNB, multiswitches, SAT receivers, SAT/BK distributors, SAT antenna sockets, measuring devices)
Scope of delivery
8× DINIC twist-on F-connectors (20 mm) in DINIC box (cardboard box) with Euro hole
DINIC is a brand of MAG GmbH - accessories and connection technology for professional installation environments.
