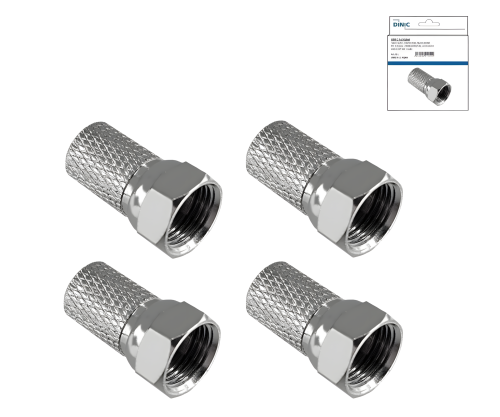

DINIC F twist-on connector for coax/SAT cable Ø up to 7.3 mm - 4 pieces (box), length 20 mm
Twist-on F-connector for low-tool assembly of SAT/coaxial cables with defined sheath.
Technical highlights
- Connector type: F-twist-on connector (F-male) for coaxial/SAT applications
- Suitable for cable outer diameter: up to max. 7.3 mm
- Design/length: 20 mm
- Metal version with zinc-nickel surface (article designation: copper version)
- Large, wide union nut for secure grip during installation and servicing
- Assembly principle: Screw onto the cable sheath after professional stripping
- Delivery form: 4 pieces in DINIC box (box with Euro hole)
- Article number: SAT-ST-73-4-KB - EAN: 4032528037660
Description: SAT
The DINIC F twist-on connector is designed for the quick assembly of coaxial and SAT cables up to 7.3 mm outer diameter. The twist-on assembly allows the connector to be screwed onto the cable sheath after stripping - suitable for practical installations, service and maintenance.
The wide nut supports a stable, torque-resistant connection on the F-thread, e.g. on LNBs, multi-switches, SAT sockets or measuring and test components. The metal version with zinc-nickel surface is designed for robust handling in professional environments.
Areas of application
- Building technology: SAT/TV distributions, floor and line installations
- System integration: Connection of receivers, modulators, headend components
- Service & maintenance: replacement/new installation of coax connections in the field
- Measurement and test environments: temporary set-ups with F interface
Technical data
| Product type |
F twist-on connector (F-Male) |
| Cable type |
Coaxial/SAT cable |
| Outer cable diameter |
max. 7.3 mm |
| Cable length |
20 mm |
| Material/surface |
Metal, zinc-nickel surface (article designation: copper) |
| Nut |
large, wide |
| Packaging |
DINIC cardboard box (Euro hole) |
| Packaging dimensions (W×H×D) |
110 × 140 × 20 mm |
| Article number / EAN |
SAT-ST-73-4-KB / 4032528037660 |
Compatibility
- For coax/SAT cables with outer diameter up to 7.3 mm
- For devices/components with F-thread connection, e.g. LNB, multiswitch, SAT socket, receiver, DVB/SAT measuring devices
Scope of delivery
4 × DINIC F screw-on connectors (20 mm) in cardboard box (Euro hole)
DINIC is a brand of MAG GmbH (professional range of cables and accessories).
Keywords: DINIC F twist-on connector, F connector, coaxial SAT, 7.3 mm, 20 mm, 4 piece box, SAT cable accessories
