- Active converter: HDMI video signal is converted to VGA (analogue)
- Input: HDMI type A (19-pin) plug
- Output: VGA socket (D-Sub 15)
- Additional audio output: 3.5 mm jack socket (separate audio signal)
- Max. Resolution: up to 1920 × 1200 at 60 Hz
- Short connection cable: approx. 0.15 m (pigtail) for compact installations

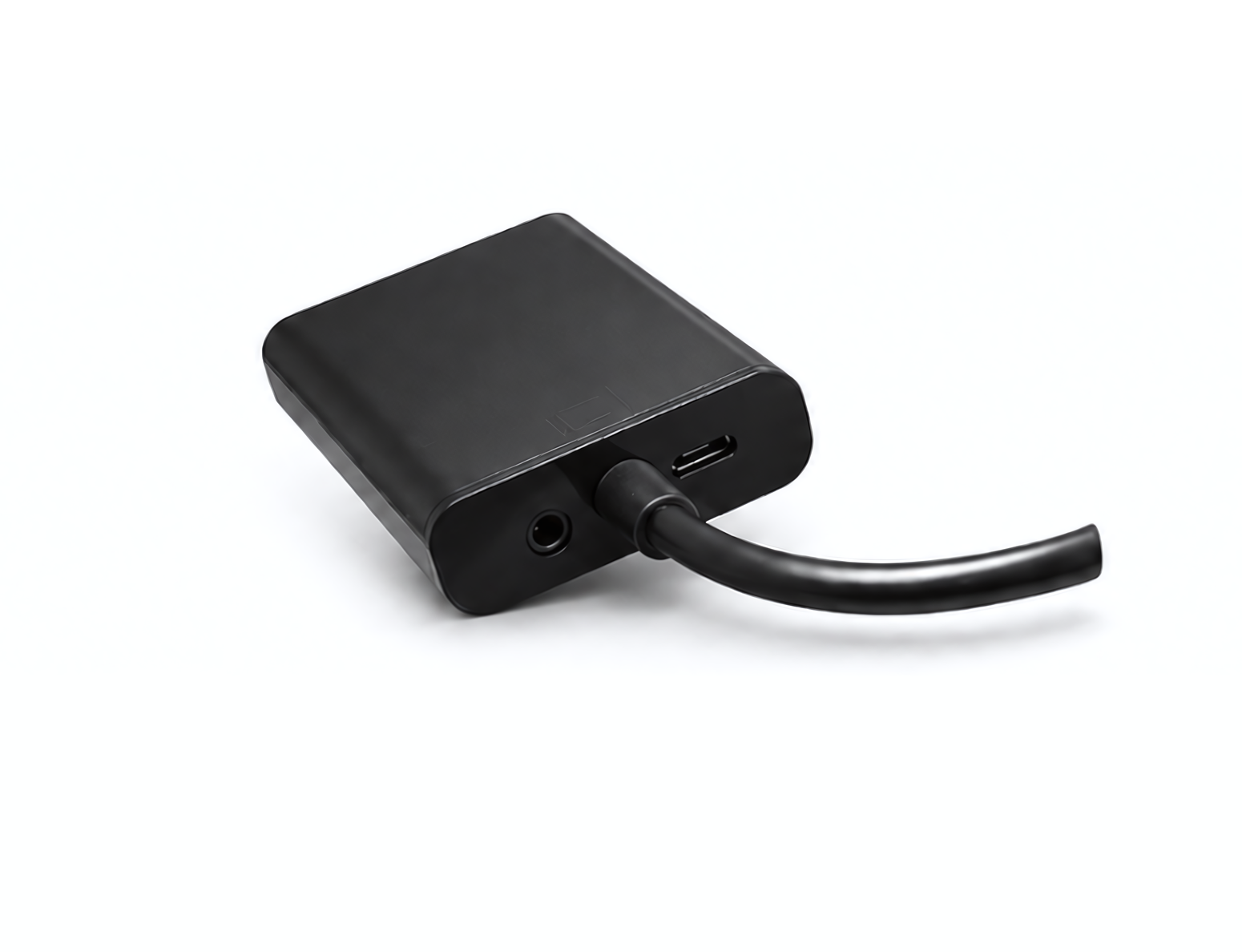

- Optional external power supply possible via micro USB depending on source/load (micro USB cable not included)
- Supplied in DINIC box with Euro hole - suitable for specialised trade/logistics

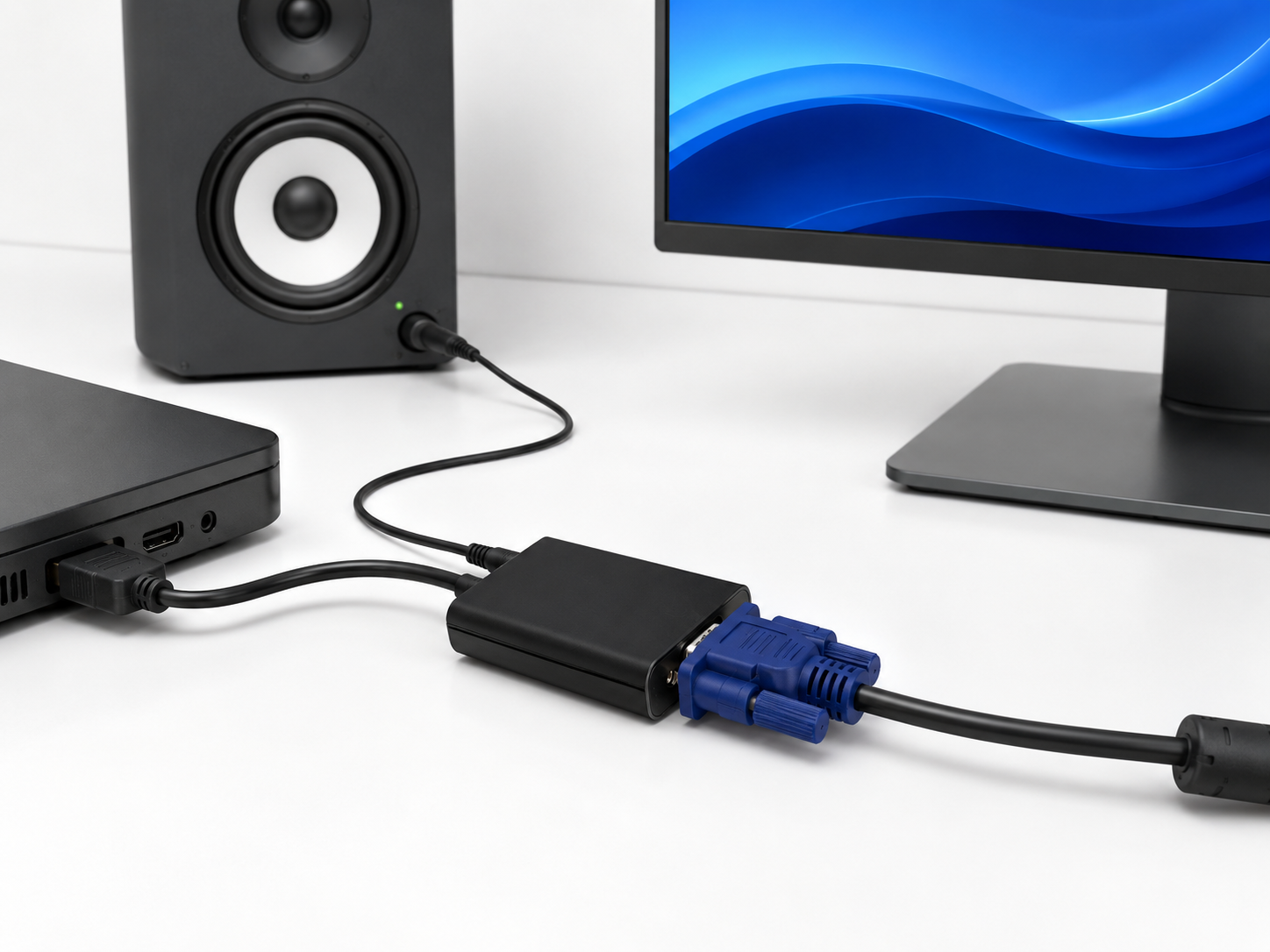

The DINIC HDMI to VGA adapter converts digital HDMI output signals into an analogue VGA image signal and also provides a separate audio signal via a 3.5 mm jack socket. This allows HDMI sources (e.g. PC, notebook, media player, industrial PC) to be connected to existing VGA infrastructures without having to replace the display unit.
The short, integrated connection cable (approx. 0.15 m) reduces mechanical stress on the HDMI socket and facilitates integration in confined spaces, e.g. behind monitors, in media technology racks or for temporary test and service setups.
Technical note: Depending on the connected hardware, an additional power supply via micro USB may be required (micro USB cable not included). The adapter is not suitable for converting from VGA to HDMI (only HDMI → VGA).
- System integration / rollout of existing monitors with VGA in office and project environments
- Service, test and commissioning workstations in IT and industrial environments
- Media technology, meeting rooms, training and presentation systems with VGA displays/projectors
- Control cabinet and system construction (HMI/monitor connection to HDMI sources)
- Specialised trade: Standard converter for HDMI source to VGA display incl. audio decoupling
| Item number | HDMI-VGA-KB |
| EAN CODE | 4032528039589 |
| Signal direction | HDMI → VGA (active), not bidirectional |
| Input | HDMI type A, 19-pin plug |
| Video output | VGA (D-Sub 15) socket |
| Audio output | 3.5 mm jack socket |
| Max. Resolution | up to 1920 × 1200 @ 60 Hz |
| Cable length | approx. 0.15 m |
| Colour | Black colour |
| Optional power supply | Micro-USB (required depending on hardware) |
| Packaging | DINIC box (with Euro hole) |
| weight | approx. 0.054 kg / piece |
- For devices with HDMI type A output (19-pin), e.g. PC/notebook, set-top box, media player, industrial PC
- For monitors/projectors/switches with VGA input (D-Sub 15)
- Audio output via 3.5 mm jack to active loudspeakers, audio-in, mixing console or amplifier

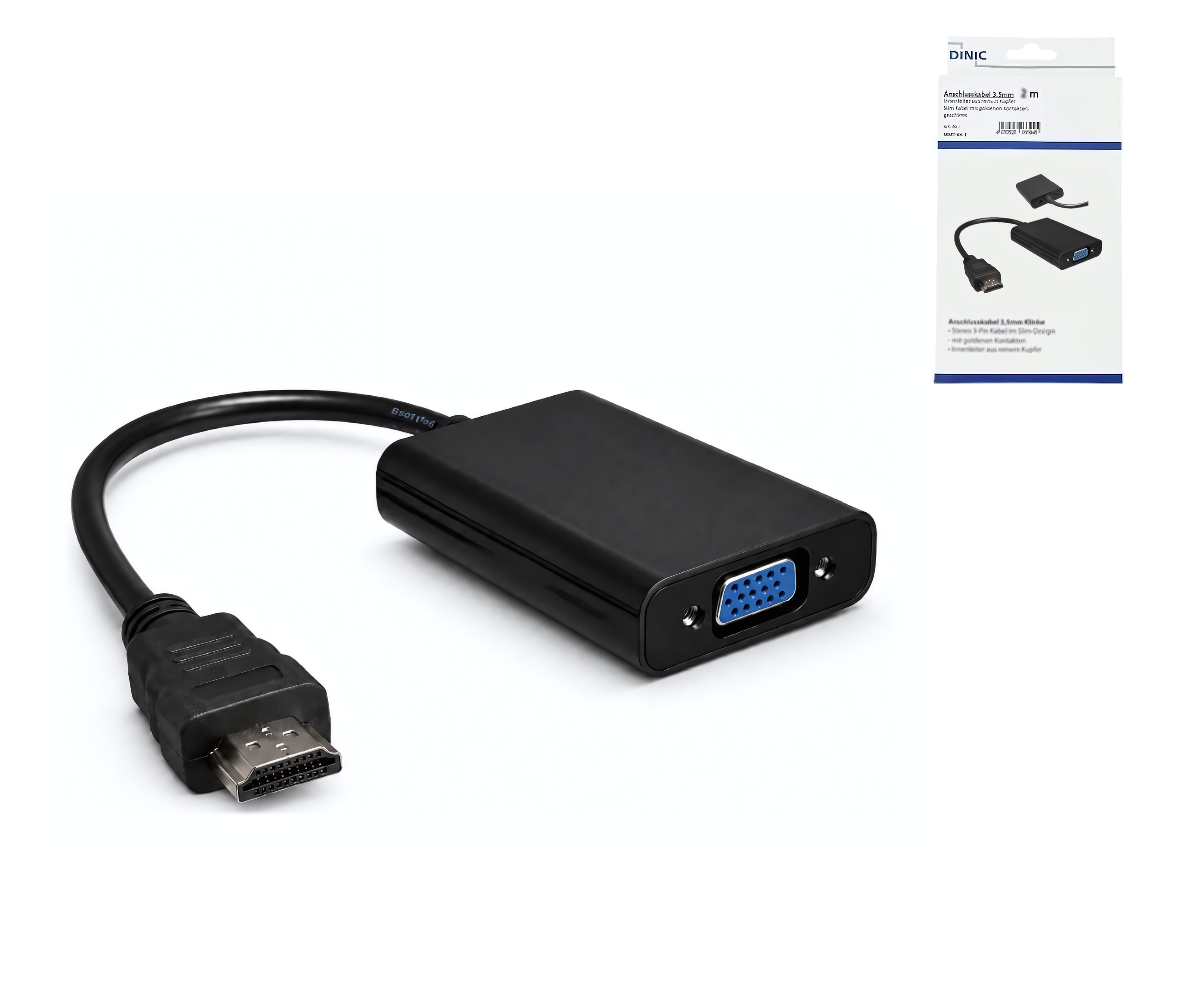

- 1× HDMI (type A) to VGA adapter with 3.5 mm audio socket, black, approx. 0.15 m
- Packed in DINIC box
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
