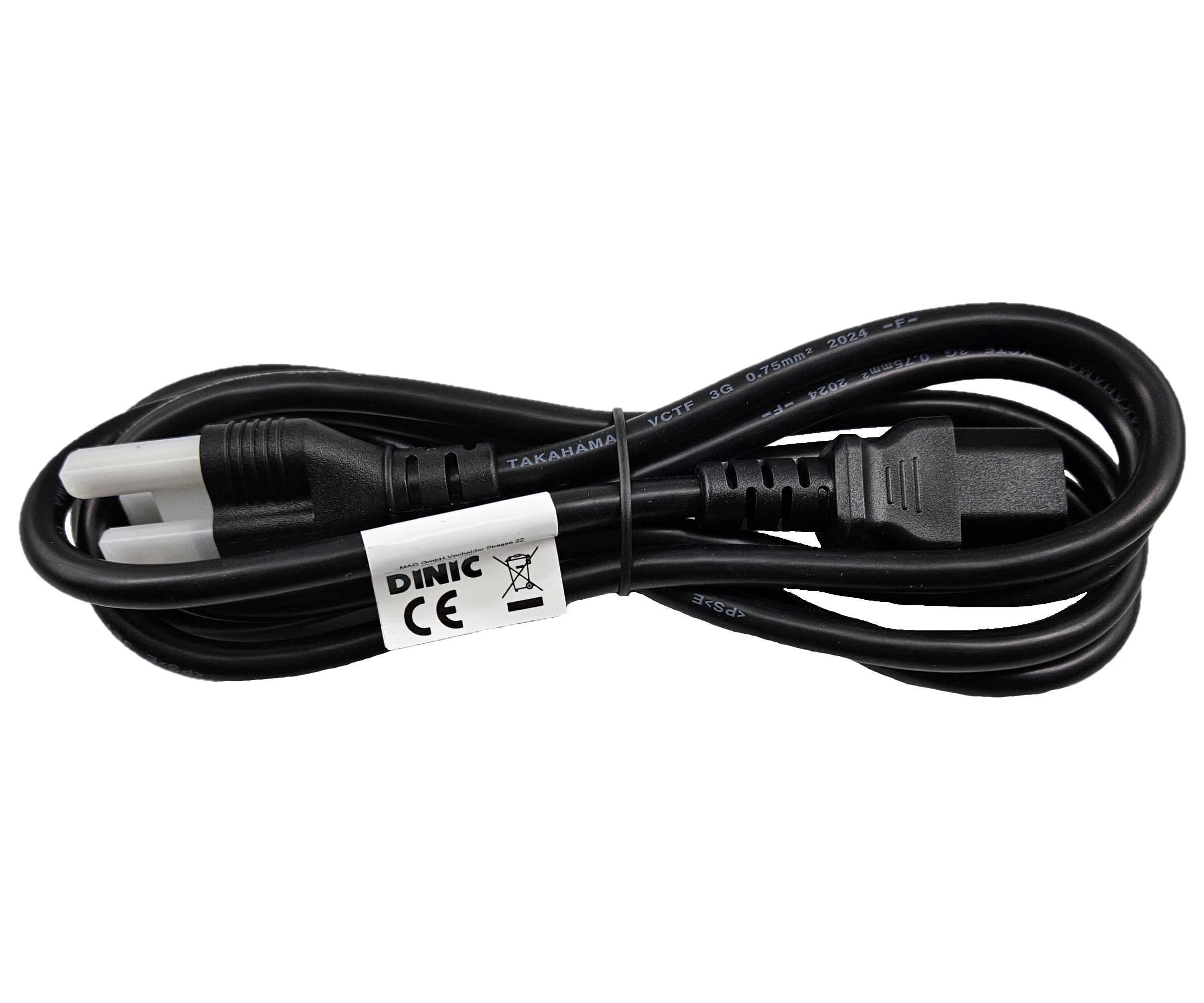

Mains cable Japan type B to C13, 0.75mm², approvals: JET/PSE, VCTF, black, length 1.80m

• Plug connector: Japan type B (3-pin, YP-12) to IEC 60320-C13 (YC-12)
• Conductor cross-section: 3×0.75 mm², rated current up to max. 7 A (product specification)
• Cable type/sheath material: VCTF (robust, flexible rubber cable for professional installation)
• Colour: black - neutral integration in rack/workstation environments
• Length: 1.80 m - standard supply cable length for system integration and workplace IT
• Japanese design: Type B plug for 110-127 V AC, 60 Hz (product specification)
• IEC 60320-C13 for devices without relevant heat generation at the connection
• Packaging: Bulk (without individual packaging) - suitable for project and series requirements

This power cable connects a Japanese type B mains plug (3-pin) to an IEC 60320-C13 IEC connector. It is typically used with IT and peripheral devices that have an IEC C14 receptacle (IEC appliance inlet plug) on the device input side. Thanks to the conductor cross-section of 3×0.75 mm², the supply cable is suitable for standardised device supply cables in installation and integration projects.

The VCTF cable is designed for high flexibility and robust handling - advantageous for frequent changeovers, service activities and organised rack/patch field environments. The IEC-C13 plug is designed as a cold appliance connector (typical limit value: max. 70 °C at the plug; IEC-C13 is not designed for warm/hot appliance sockets).

Note Japan standard: For Japanese plugs, fulfilment of the "Tracking Test" and "Glow Wire Flammability Test" has been required by law since 18/09/2015; the corresponding certificates are available in the Downloads/Documents section (shop documents/certificates).

• System integration and rollout (workstations, monitors, printers/peripherals)
• Data centre / server room (servers, storage, KVM, network technology with C14 input)
• Control cabinet construction and industrial automation (industrial PCs, control and measuring devices)
• Service, maintenance and device replacement (standardised supply line for Japan installations)

• Mains side: for Japanese sockets/distributors with type B receptacle
• Device side: for devices with IEC 60320-C14 device input (suitable for IEC 60320-C13 coupling plug)
• Typical devices: PC/workstation, monitor, server/storage, network components, UPS with C14 input (observe device-specific approvals)
