Mains cable Japan type A to C7, 0.75mm², approvals: JET/PSE, VFF, black, length 1.80m
More on the way

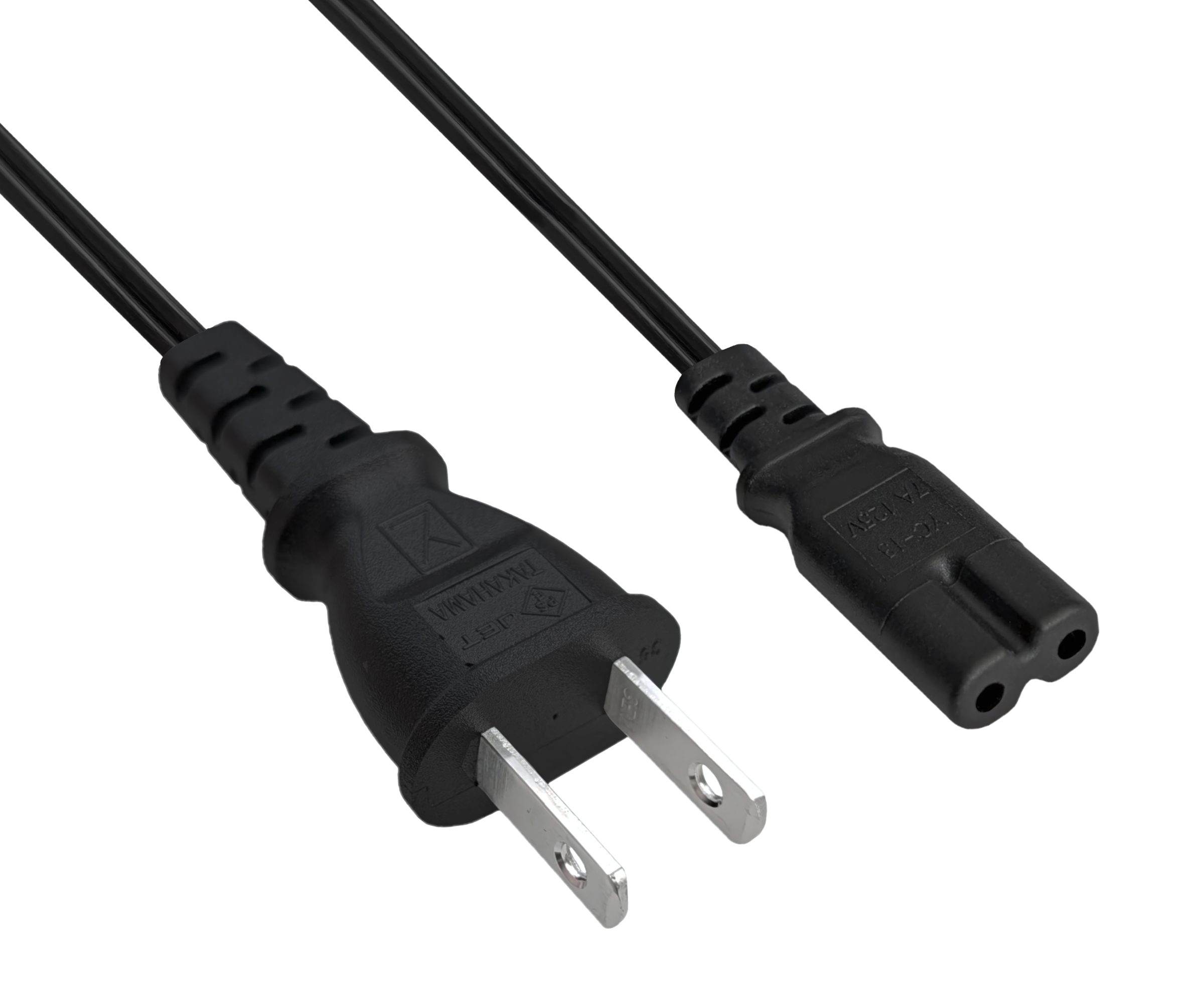

Power cable Japan type A to IEC 60320 C7, 2×0.75 mm², 1.80 m, VFF, black
Pre-assembled connection cable for Japanese type A mains sockets to appliance coupler C7 (for IEC C8 appliance inlet).
Technical highlights
- Plug connector: Japan type A (JIS C 8303 / YP-13, 2-pin) to IEC 60320 C7 (YC-13)
- Conductor construction: 2-core, 2×0.75 mm² (without protective conductor) - for insulated devices (protection class II)
- Cable type/sheathing: VFF (PVC) - Robust for standard installations and device connections
- Length: 1.80 m - practical range for system integration and workstation/rack environments
- Colour: black - neutral colour scheme for IT and device installations
- Approvals: PSE, JET (Japan)
- Packaging: Bulk (without individual packaging) - suitable for project requirements and series assembly
Description: black
The pre-assembled mains cable connects a Japanese mains socket (type A / JIS C 8303) to the IEC 60320 C7 appliance coupler. The C7 coupling is designed for devices with an IEC 60320 C8 device inlet (e.g. many small appliance and consumer electronics power supplies). The conductor cross-section of 2×0.75 mm² supports a stable power supply in the typical power range of insulated terminal devices.

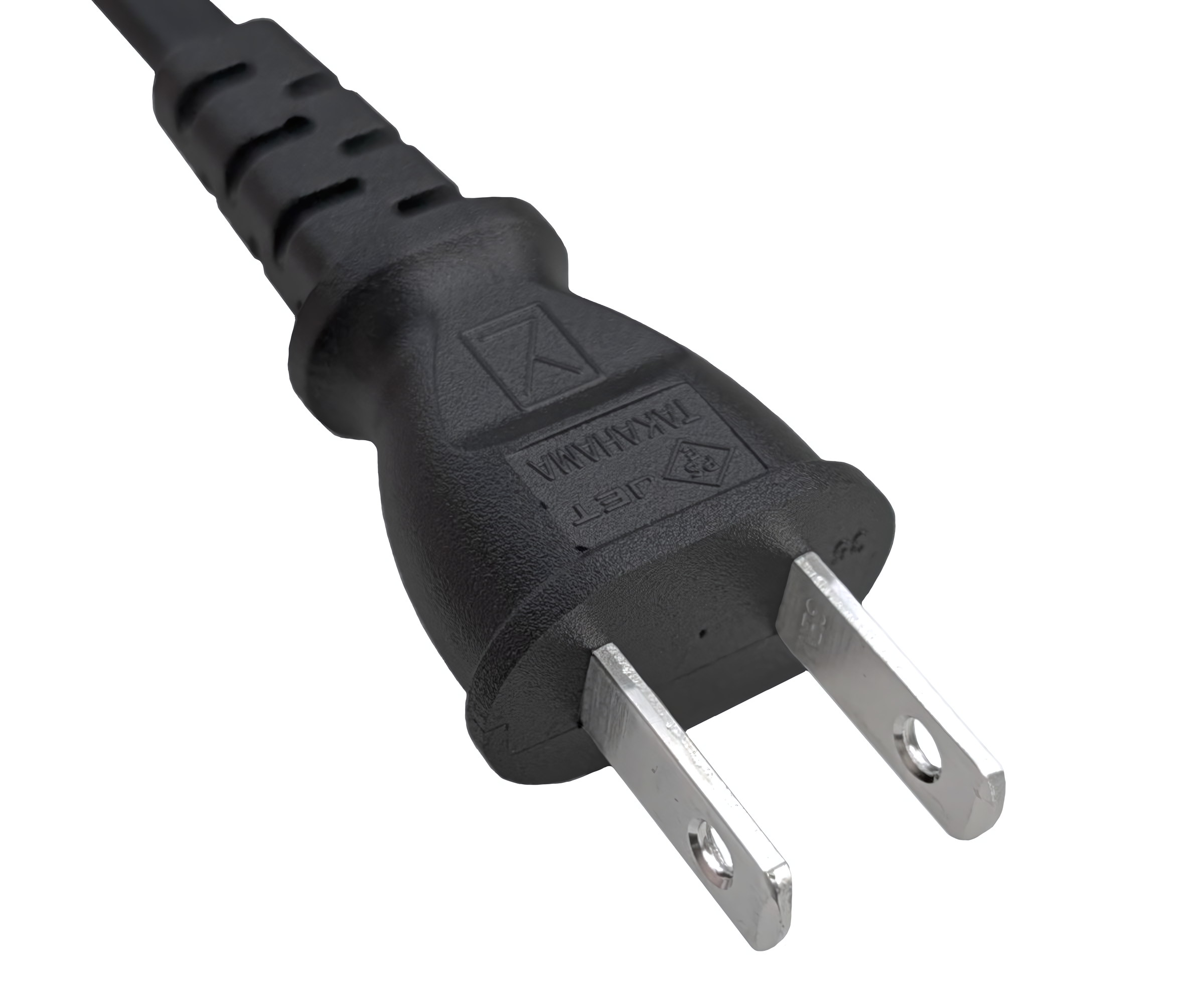

The Japanese type A plug (2-pin) is designed with two parallel flat contacts and is usually used in 125 V networks in Japan. The IEC 60320 C7 appliance coupler (colloquially known as "Euro-8") is designed for compact appliance inlets; the maximum operating temperature at the connector is generally designed for 70 °C.
Since 18 September 2015, a "Proof Tracking Index (PTI)" test and a "Glow Wire Ignition (GWI)" test must be passed for Japanese connectors. The corresponding certificates are available in the shop area "Downloads/Documents".
Areas of application
- System integration and device assembly (export/Japan setups)
- IT peripherals, audio/video, power supply units and small devices with IEC C8 device inlet
- Office and workplace installations, service and replacement requirements
- Project business and series assembly (bulk packaging)
Technical data
| Item number | CB-8-J |
| EAN CODE | 4032528012858 |

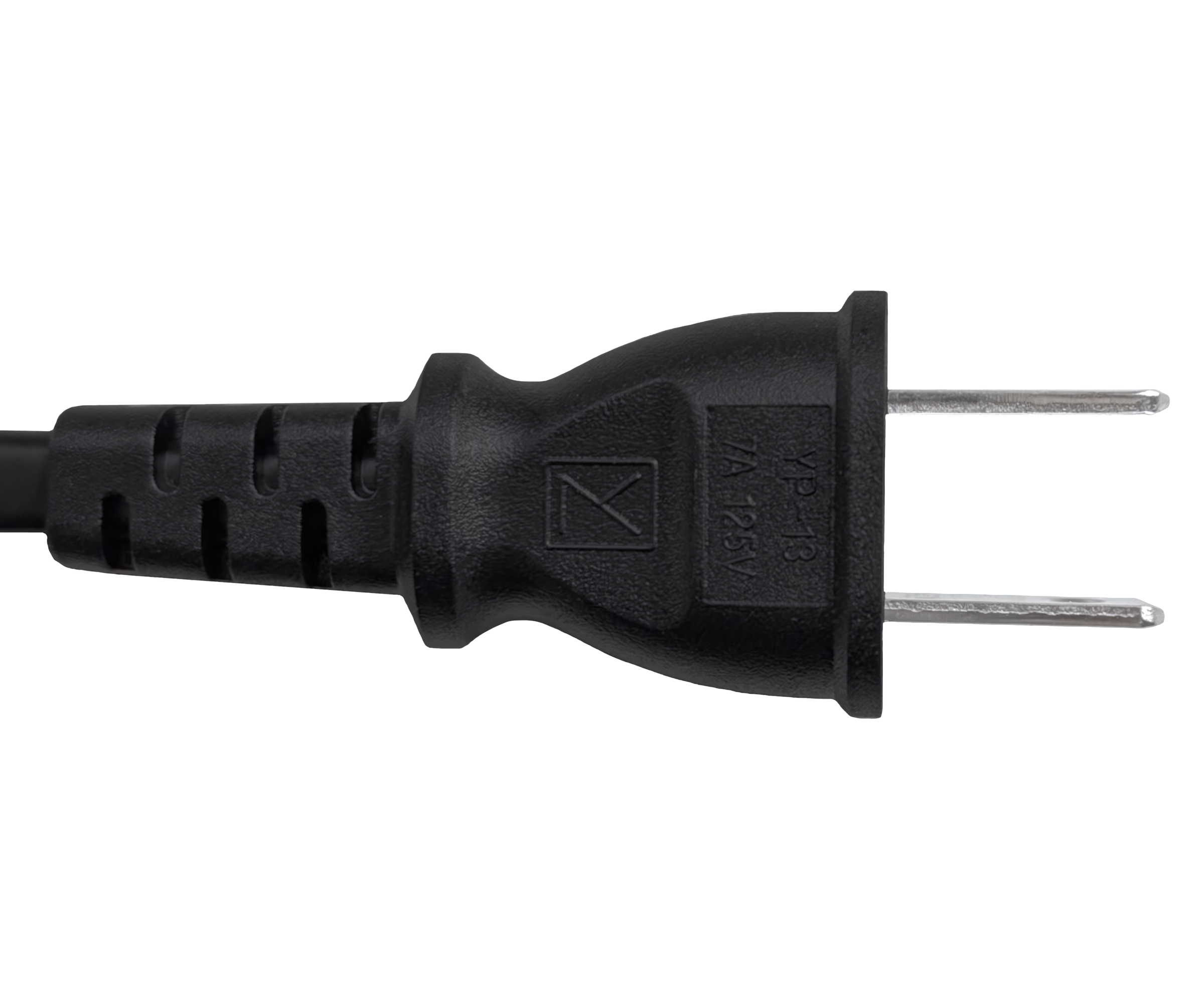

| Mains plug | Japan type A (JIS C 8303 / YP-13), 2-pin |

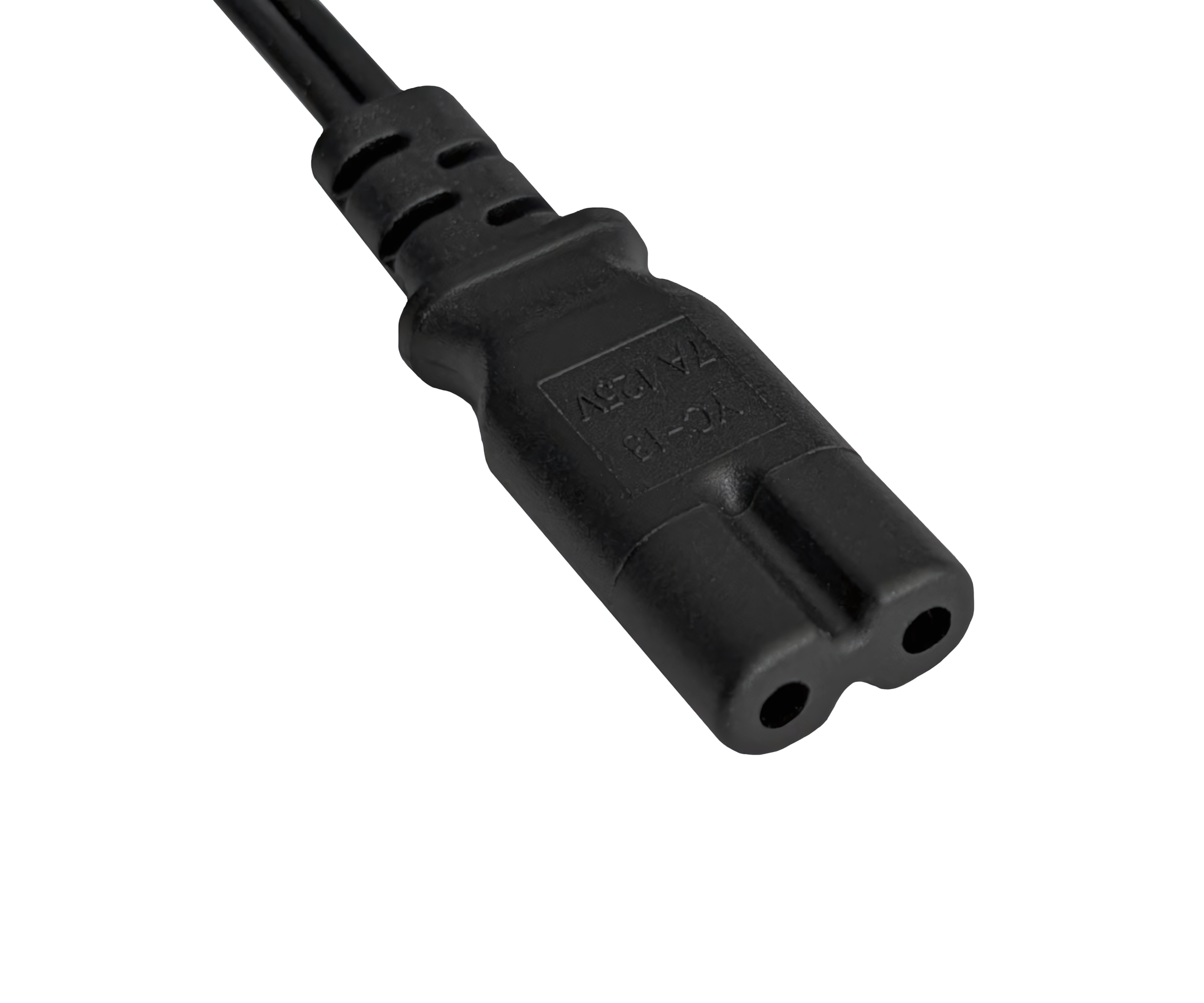

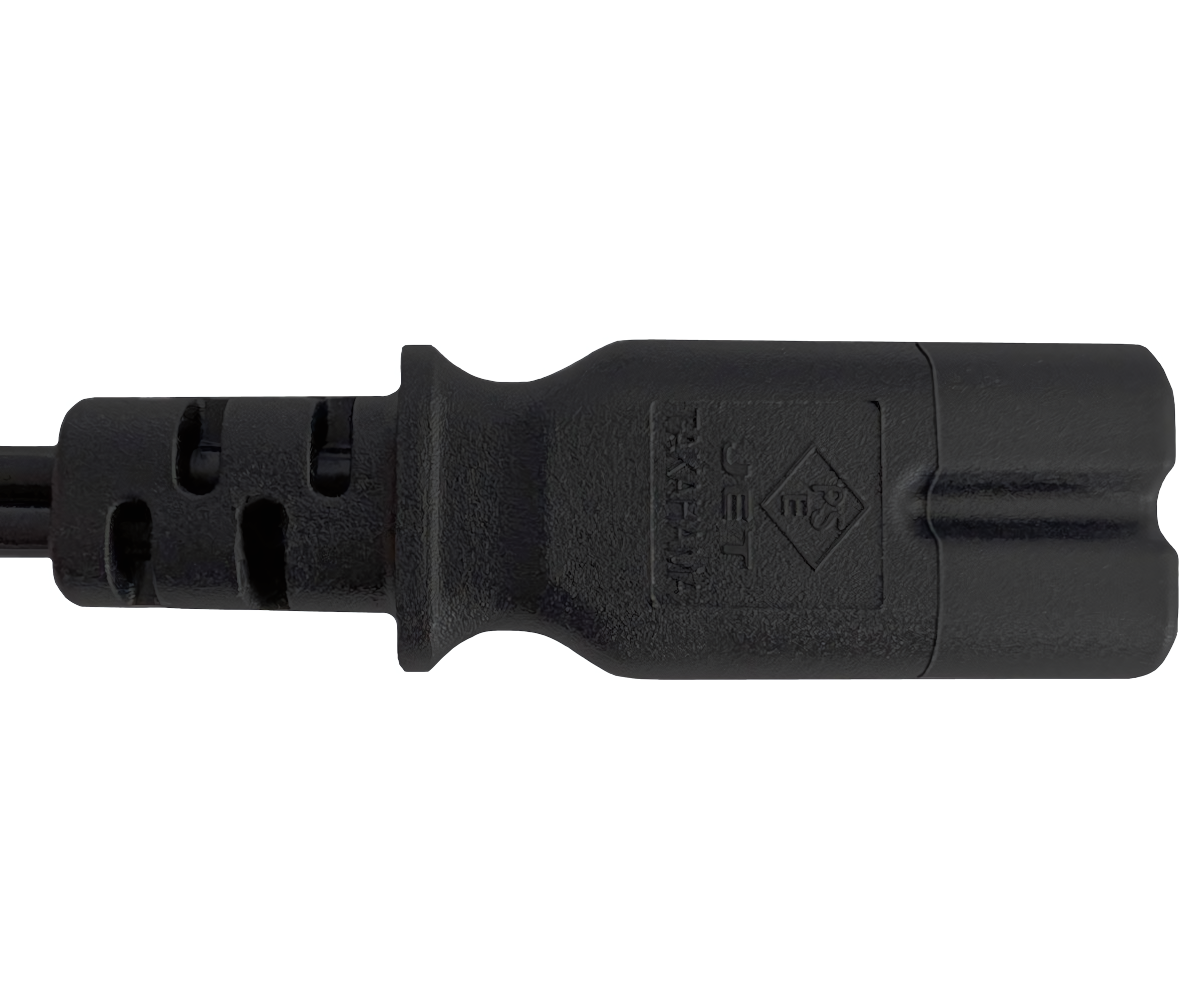

| appliance plug | IEC 60320 C7 (YC-13) |
| Compatible appliance inlet | IEC 60320 C8 |
| Number of cores / protective conductor | 2-wire / without protective conductor |
| Conductor cross-section | 2×0.75 mm² |
| Cable type / sheath | VFF (PVC) |
| Colour | black colour |
| Cable length | 1,80 m |
| Approvals | PSE, JET |
| Packaging | Bulk (without individual packaging) |
| Destination country / market | Japan |
Compatibility
Suitable for appliances with IEC 60320 C8 appliance inlet(suitable for IEC 60320 C7 coupling), operated on Japanese type A mains sockets(JIS C 8303).
Scope of delivery

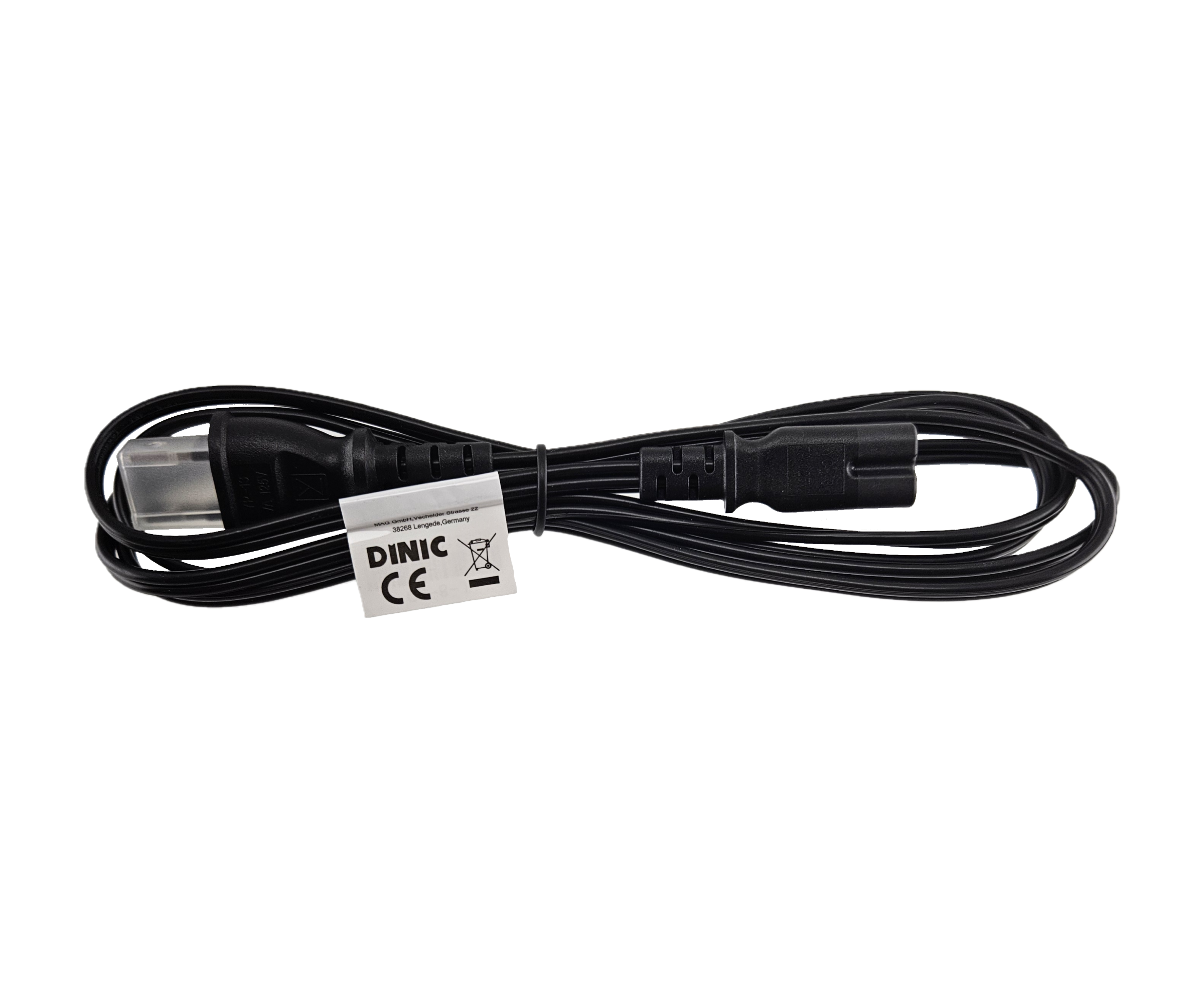

1× Power cable Japan type A to IEC 60320 C7, 1.80 m, black (bulk).
DINIC is a brand of MAG GmbH (Lengede) - customised cable and adapter solutions for professional applications.
Keywords: Power cable Japan type A (JIS C 8303) to IEC 60320 C7, 1.80 m, 2×0.75 mm², VFF, DINIC/MAG, PSE/JET
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
