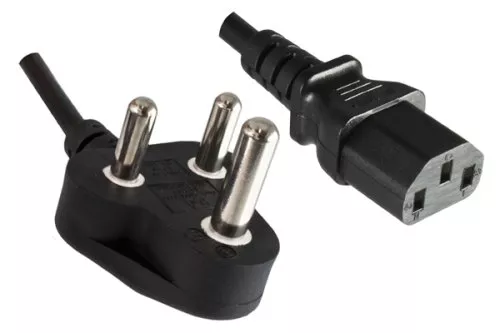

Power cable India (IND) - type M to C13, black, 1.80m
MAG Part No.: CB-N-IND (YP-80/YC-12)
- Plug: Type M to C13
- Color: black
- length: 1,80m
- cross section: 3 x 0,75mm²
- Material: YY3G
- Approval: BIS
- RoHS compliant
- Packing: Bulk
Countries:
South Africa, India

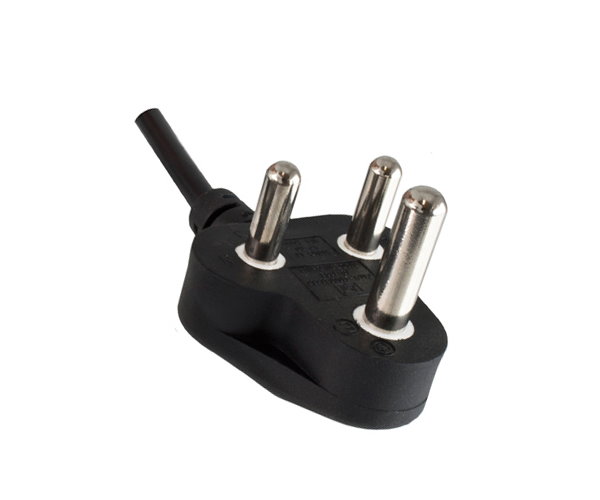

Plug type M (YP-80)

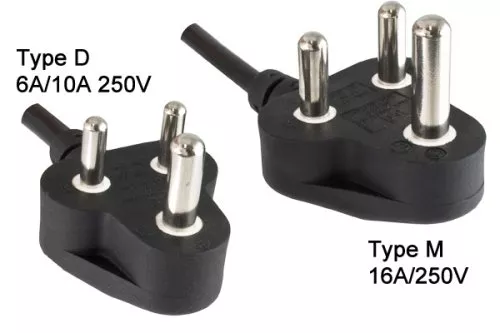

The IS-1293 plug (Indian standard) is similar to the BS546 standard and is intended for larger equipment in countries where the Type D plug is also used. The Type M version is rated at 16A and is physically larger than the Type D, but with the same form factor. It has 3 round pins that form an isosceles triangle. The ground pin is wider and longer than the N & L pins to allow the protective plates on the live and neutral wires to be detached. Even if the outlet does not have protective plates, the longer ground pin is necessary to make initial contact before the plug becomes active. When pulled out, the live contacts are disconnected before the ground connection is disconnected.
Plug C13 (YC-12)
IEC 60320-C13 cold appliance plug is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is set to 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.
