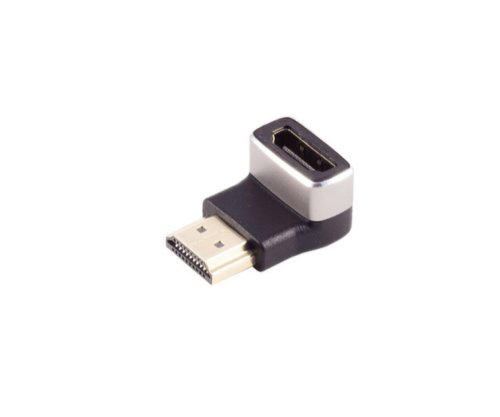

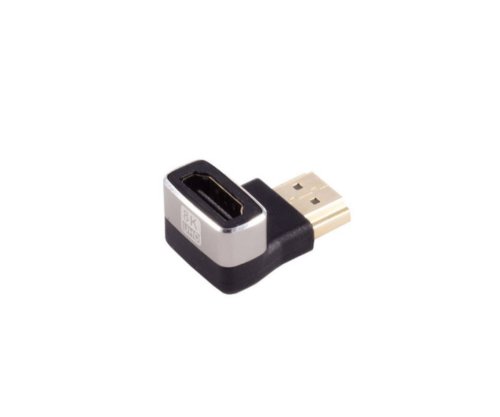

DINIC HDMI-A adapter, 90° angle bottom, 8K, metal HDMI-A socket to plug, 8K 60Hz / 4K 120Hz, DINIC box with Euro hole
.jpg "DINIC HDMI-A adapter, 90° angle bottom, 8K, metal HDMI-A socket to plug, 8K 60Hz / 4K 120Hz, DINIC box with Euro hole")
.jpg "DINIC HDMI-A adapter, 90° angle bottom, 8K, metal HDMI-A female")
DINIC HDMI-A adapter - 90° angle bottom, 8K, metal
HDMI type A socket to HDMI type A plug, Ultra High Speed with Ethernet (HDMI 2.1), 48 Gbit/s
Technical highlights
- Adapter type: HDMI-A socket to HDMI-A plug (type A), passive, bidirectional (non-directional)
- Angled design: 90° at the bottom - space-saving routing in tight installation spaces
- Resolution/timing: up to 8K (60 Hz) and 4K (120 Hz)
- HDMI standard: Ultra High Speed with Ethernet (HDMI 2.1), max. bandwidth 48 Gbit/s
- Supported features: HDCP 2.3, CEC 2.0, 3D, Dynamic HDR, VRR
- Contacting: Gold-plated pins for stable mating cycles and low contact resistance
- Housing: Metal/PVC combination (PVC + ALU), colour black/silver
- Packaging: DINIC box with Euro hole (presentation/carrier suitable for retail)
Product description
The DINIC HDMI-A angle adapter converts an HDMI type A plug connection into a 90° angled version (bottom). This allows the cable to be routed directly to the device or the connection panel - useful when space is limited behind monitors, panels, AV matrices or in racks.
The metal/PVC housing reduces mechanical stress on the cable outlet and protects connectors from excessive bending radii. Gold-plated pins support permanently reliable contacting in professional use.
Note on angle orientation: The illustration of the connector is decisive, as the designation left/right/top/bottom angled depends on the respective point of view.
Technical note: Passive adapters and extensions can attenuate the signal. With long cable runs, the maximum bandwidth is not achieved in every setup.
Areas of application
- AV/media technology, conference room and digital signage installations
- IT/system integration (workstations, docking and monitor connections)
- 19" rack and data centre environments (flush cable routing)
- Control cabinet construction/industrial enclosures with HDMI feed-throughs or panel mount components
- Service/field engineering to relieve the strain on HDMI cables on devices
Technical data
| Item no. | HDMI-BU-A90-KB |
| EAN CODE | 4032528041322 |
| Connectors | HDMI type A socket → HDMI type A plug |
| Angle | 90° down |
| HDMI version | Ultra High Speed with Ethernet (HDMI 2.1) |
| Max. bandwidth | 48 Gbit/s |
| Resolution up to | 8K (60 Hz), 4K (120 Hz) |
| Supports | HDCP 2.3, CEC 2.0, 3D, Dynamic HDR, VRR |
| Signal direction | Bidirectional (not directional) |
| Contact surface | Gold-plated pins |
| Housing material | PVC + ALU |
| colour | black / silver |
| Packaging | DINIC box (with Euro hole) |
| weight | approx. 0.024 kg / piece |
Compatibility
Suitable for HDMI type A interfaces (standard HDMI) on monitors, TVs, projectors, graphics cards, AV receivers, matrix switches, extenders and HDMI panel or feed-through modules.
Scope of delivery
1x DINIC HDMI-A angle adapter (HDMI-A socket to HDMI-A plug), DINIC Box
DINIC is a brand of MAG GmbH - components and connection solutions for professional use.
