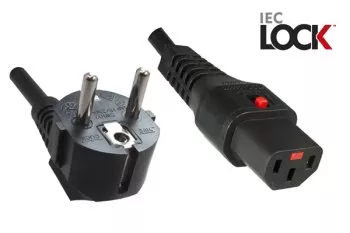

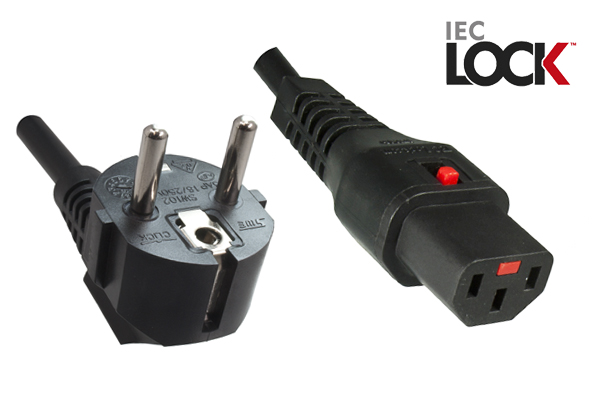

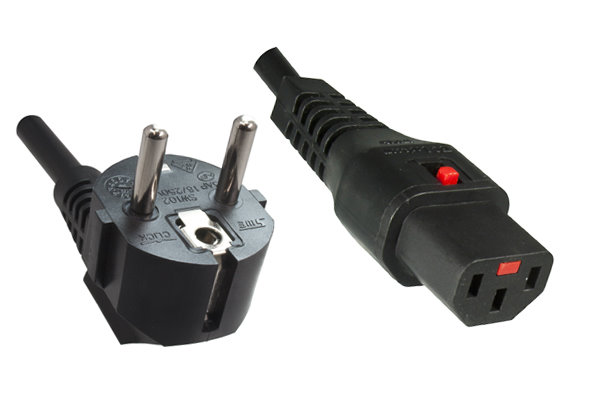

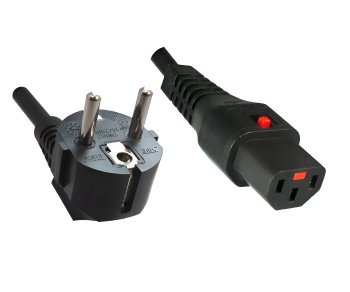

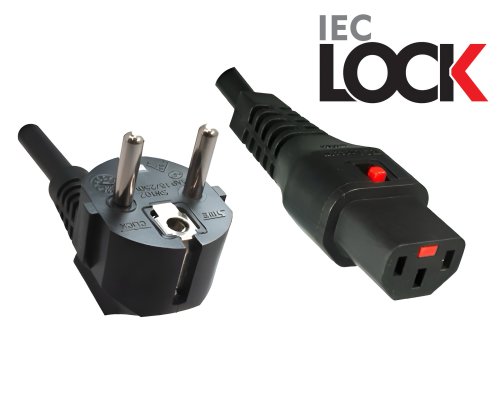

IEC Lock™ power cable - CEE 7/7 to C13 with locking device.
MAG Part No.: CB-LOCK-EU
- Plug: grounding plug E+F 90° angled to C13 with lock
- Color: black
- length: 2,00m
- Cross section: 3 x 1mm²
- Material: H05VV-F
- Approval: KEMA
- RoHS compliant
- Packing: Bulk
Countries:
Afghanistan, Algeria, Andorra, Austria, Belgium, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Latvia, Lithuania, Luxembourg, Macedonia, Moldova, Monaco, Montenegro, Morocco, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, South Korea, Spain, Sweden, Tunisia, Ukraine.
In Syria and Turkey there is no official standard, but the Schuko plug is commonly used.

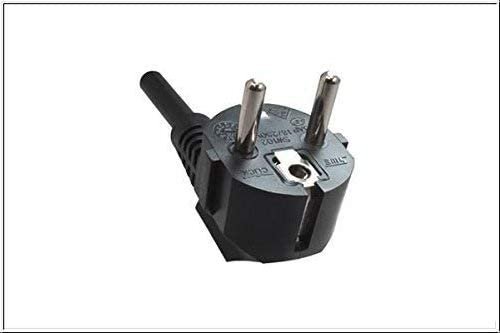

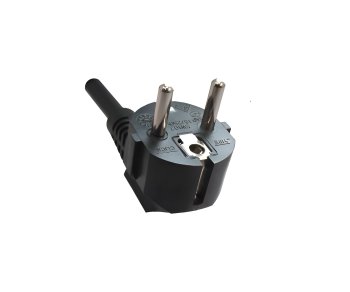

Plug type E+F 90° angled CEE-7/7 system
In the so-called Schuko plug, two protection systems were combined in one plug, so that the grounding takes place via the contact surfaces or the grounding spigot (French system).

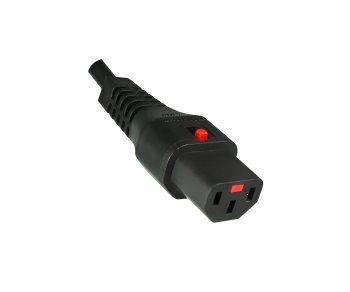

Plug C13
IEC 60320-C13 cold appliance plug is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10A. Cold appliance plugs do not fit into warm or hot appliance sockets.
Pull-off proof cold appliance coupler protects against accidental disconnection of power supply to PCs, servers and other electrical appliances.
- compatible with all commercially available cold-device power inputs
- protects devices susceptible to vibration
- connector cannot be removed unintentionally
- unlocking is done by pressing the red latching lever on the C13 power connector
- up to 10 A
