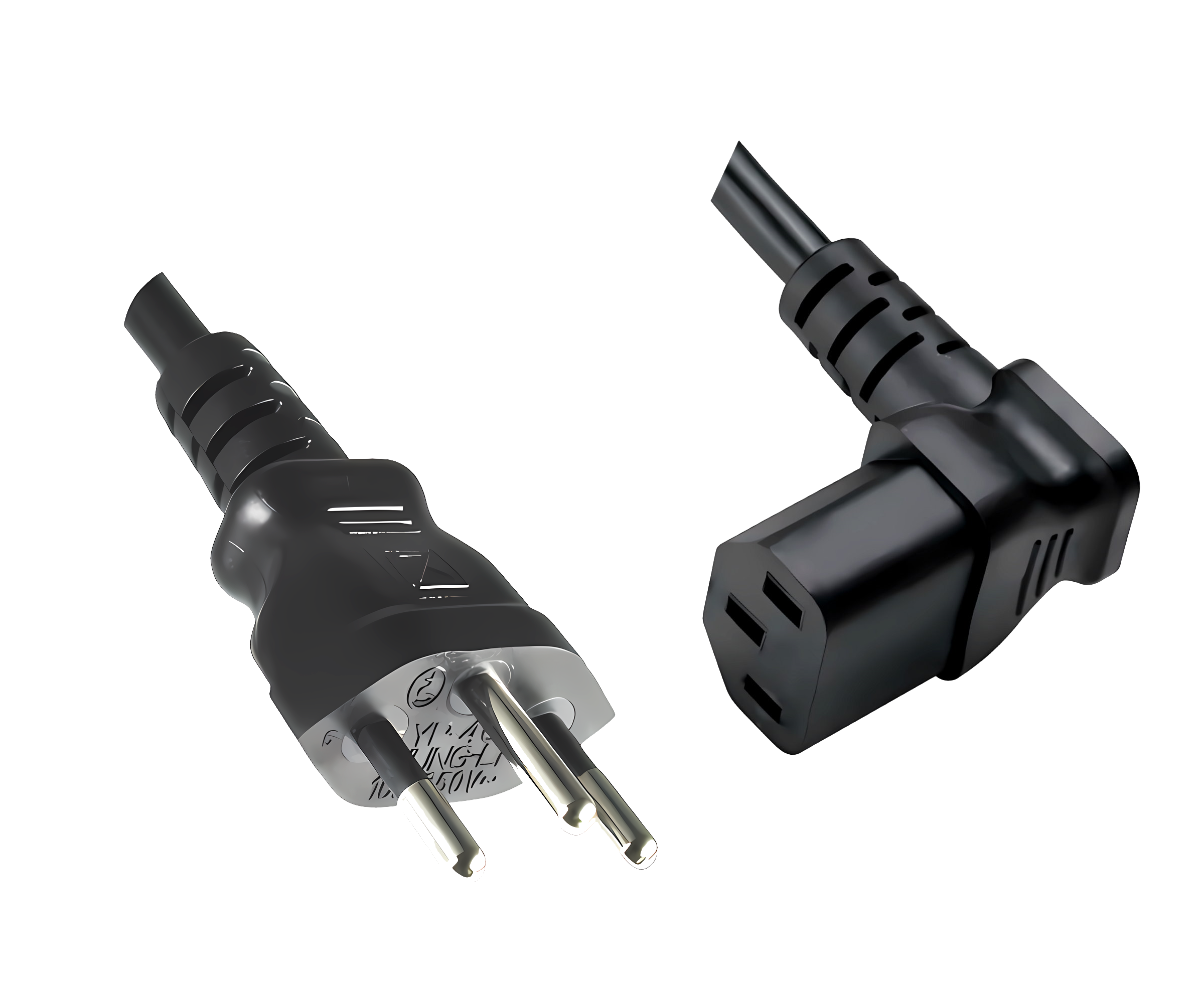

Mains cable Switzerland type J (partially insulated) to C13 90°, 0.75mm², approval: SEV, black, length 1.80m

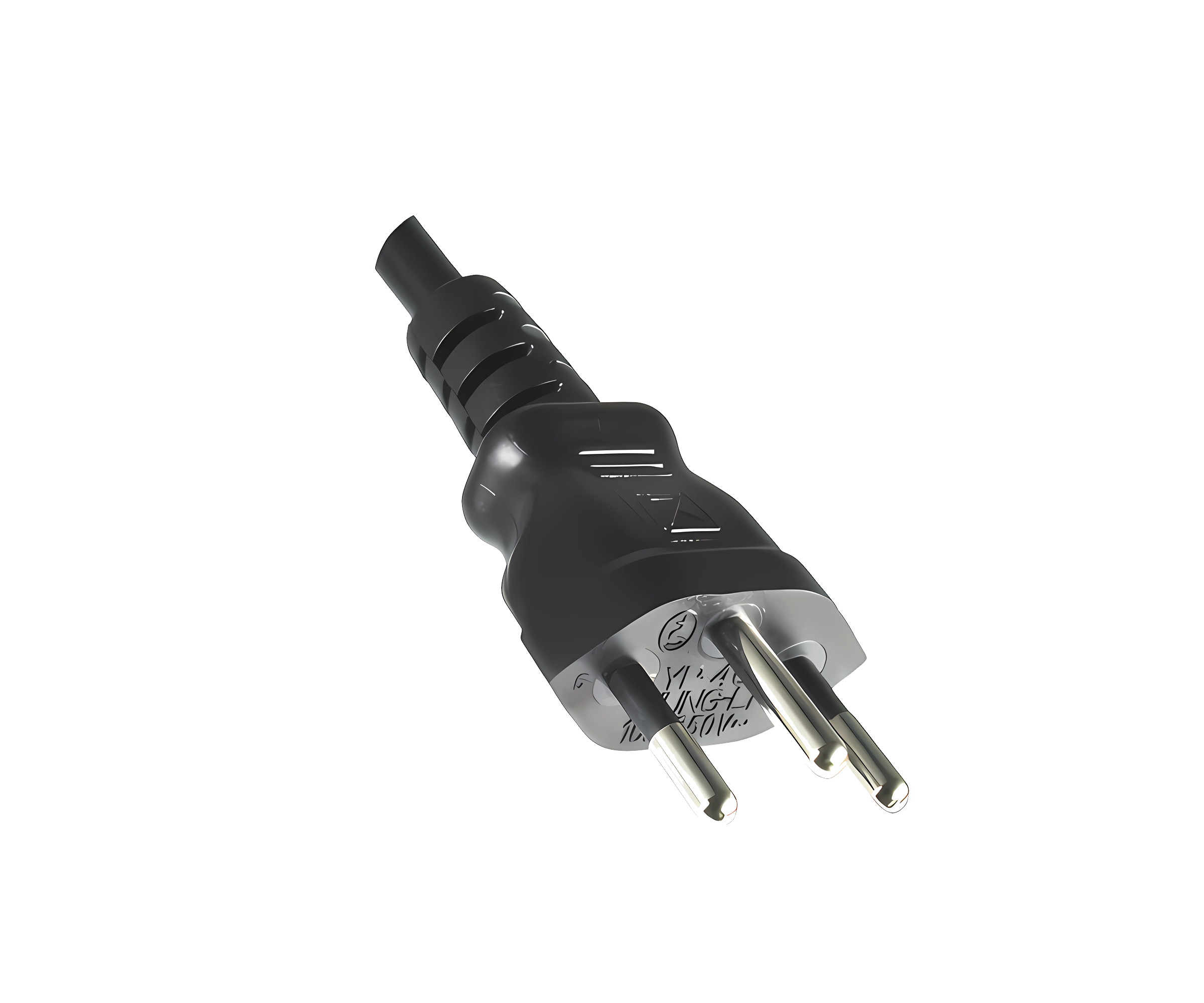

• Plug connector: CH plug type J (type 12), 3-pin, partially insulated → IEC 60320 C13 90° angled (cold appliances)
• Cable type: H05VV-F (PVC sheath), flexible for installation and device connection
• Cores: 3×0.75 mm² (L/N/PE) for typical IT and device supply
• Length: 1.80 m - practical range for rack, workplace and device use
• Angled C13 plug: space-saving cable routing behind devices and in densely populated cabinets
• Colour: black - neutral installation in technical and server environments
• Approval: SEV (Switzerland)
• Packaging: Bulk (without individual packaging) - efficient for project and series requirements

This mains connection cable connects the Swiss plug-in system (type J / type 12, 3-pole, partially insulated) to the IEC 60320 C14 device input via the IEC 60320 C13 device plug. The H05VV-F cable construction with 3×0.75 mm² is designed for reliable operation in professional IT and electrical installations.

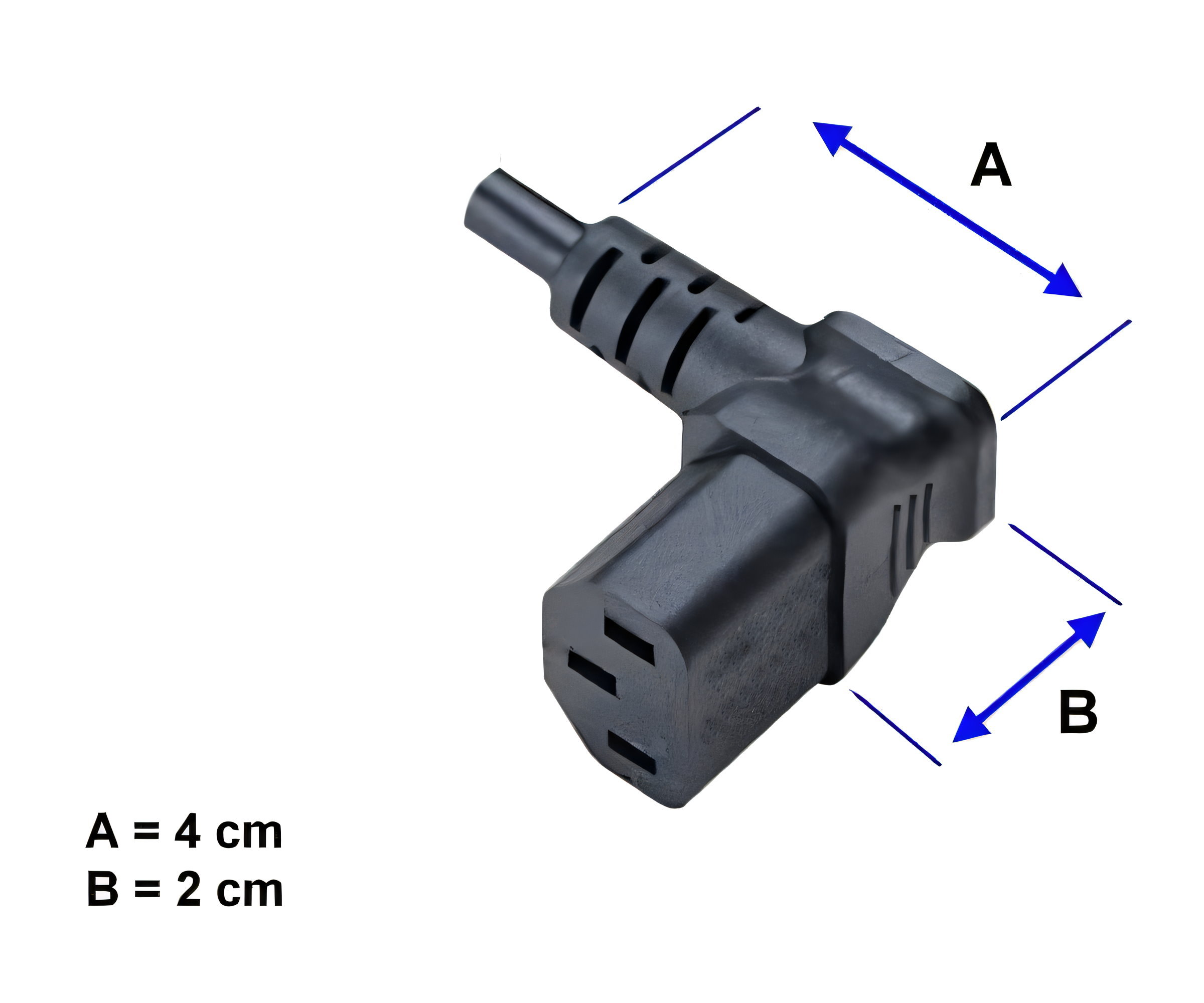

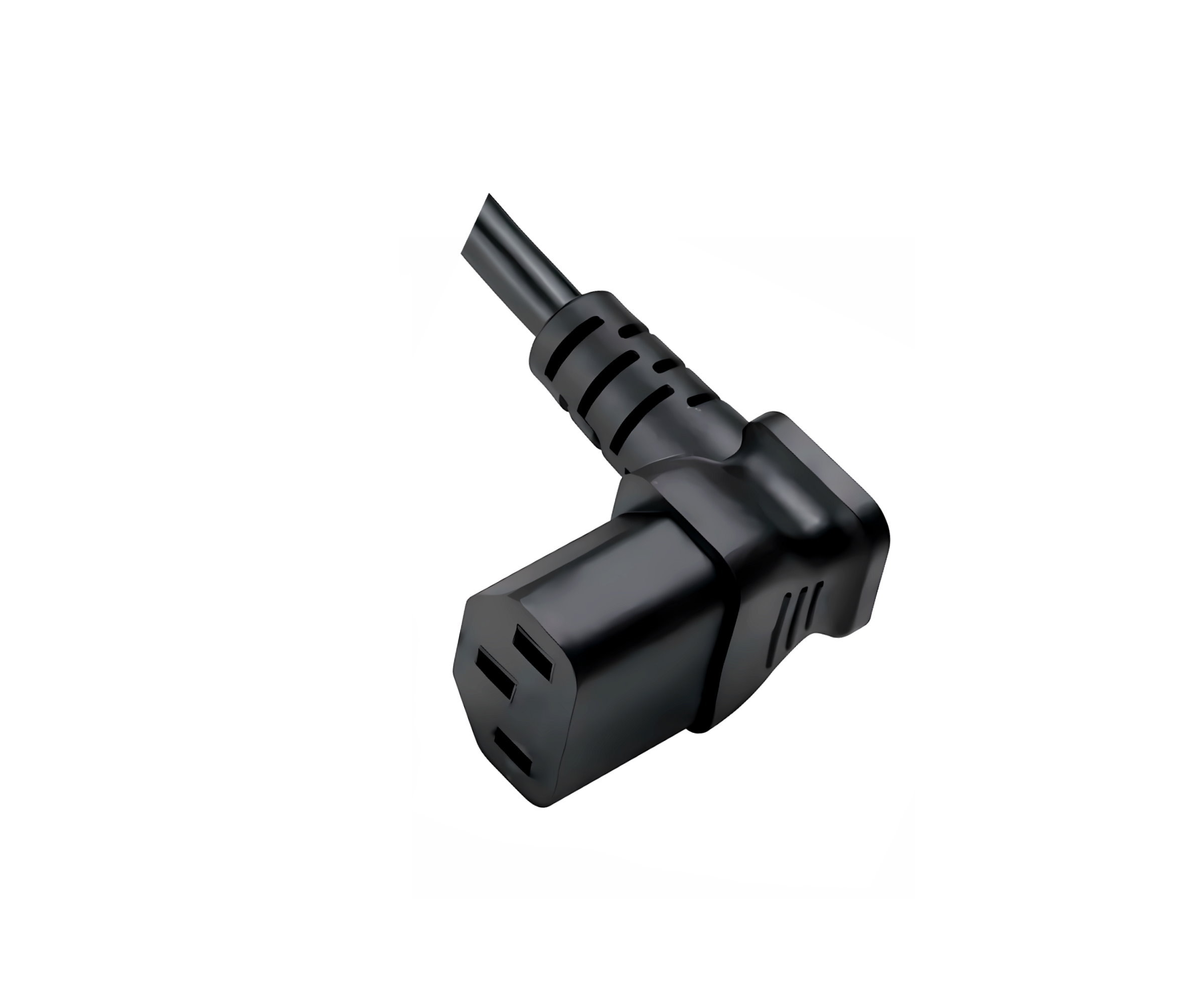

The 90° angled C13 plug allows the cable to be routed in a controlled, space-saving manner - advantageous for shallow installation depths, device outlets close to the rear or in densely populated 19" racks.

Note angled plug: The illustration of the plug is decisive, as the designation left/right/top/bottom angled depends on the respective point of view.

• 19" cabinet and rack installation (PDU/UPS/server/storage with IEC C14 input)
• System integration, data centre, workplace IT (monitors, workstations, peripherals with IEC C14)
• Control cabinet construction and industrial automation (device supply with IEC C14)
• Building technology and technical infrastructure in CH installations

• For devices with IEC 60320 C14 device installation plug (e.g. servers, switches, routers, UPS, PDU, monitors)
• On the mains side for Swiss standard type J / type 12 sockets
