Power cable Brazil type N to C13, 0.75mm², INMETRO, black, length 1.80m
More on the way

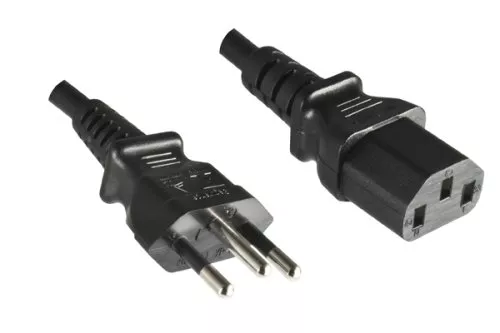

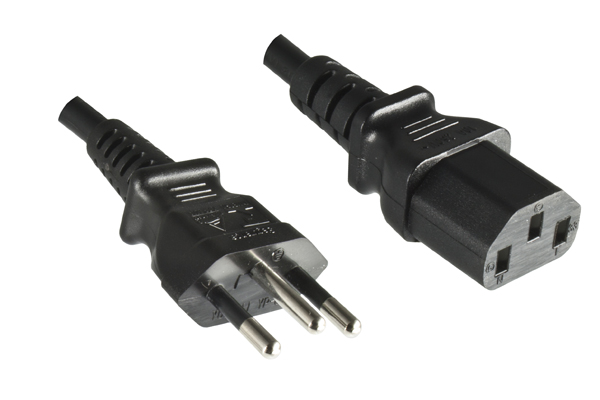

Mains cable Brazil type N to IEC 60320 C13 - 3G0.75 mm², 1.80 m, INMETRO, black
3-pole connection cable for Brazil (type N to IEC 60906-1 / ABNT NBR 14136) to C13 cold appliance coupler.
Technical highlights
- Plug side A: Brazil type N, 3-pole (IEC 60906-1 / ABNT NBR 14136), with protective conductor
- Plug side B: IEC 60320 C13 coupling (for appliances with IEC 60320 C14 appliance coupler)
- Conductor cross-section: 3G 0.75 mm², finely stranded copper conductor (flexible version)
- Cable type: H05VV-F (PVC insulation/PVC sheath), for robust installation and service environments
- Rated values (depending on system): up to 10 A / 250 V; cable designed for 300/500 V
- Length: 1.80 m; colour: black
- INMETRO-compliant version for the Brazilian market
- Packaging: Bulk (without individual packaging) - suitable for project and series requirements
Cable description
This 3-pole mains cable connects a Brazilian type N mains socket to an IEC 60320 C13 cold appliance coupler. It is used for the standard-compliant power supply of devices with an IEC 60320 C14 connection (e.g. IT and rack components) in Brazilian installation environments.
The flexible H05VV-F cable with PVC sheath is designed for professional use: easy to lay, robust sheath surface and practical handling in service and roll-out scenarios. The protective earth conductor (3G) supports use on protection class I devices.
The INMETRO-compliant design facilitates procurement for projects with Brazilian conformity requirements and supports consistent, documentable product quality in B2B use.
Areas of application
- Data centre & server rack (servers, storage, switches with IEC C14)
- System integration & IT rollouts in Brazil
- Control cabinet construction and industrial automation (auxiliary supply via IEC C14)
- Building technology / technical rooms (UPS, PDU, KVM, monitoring)
- Specialised trade/project business for international power connections
Technical data
| MAG art. no. | CB-N-BR |
| EAN CODE | 4032528012957 |
| Plug type (mains) | Brazil type N, 3-pin (IEC 60906-1 / ABNT NBR 14136) |
| Coupling | IEC 60320 C13 |
| Conductor | 3G 0.75 mm² (L/N/PE), finely stranded (e.g. 24 × 0.20 mm) |
| Cable type / sheath | H05VV-F, PVC insulation & PVC sheath (flexible cable) |
| Nominal voltage cable | 300/500 V |
| Rated current / mains operation | up to 10 A / 250 V (system-dependent, depending on plug/coupling and application) |
| Temperature (cable) | Operation up to 70 °C; cold bending test down to -15 °C (cable-related) |
| Outer diameter (approx.) | 6.7 mm |
| Cable colour | Black colour |
| Cable length | 1,80 m |
| Packaging | Bulk (without) |
| Approval / Conformity | INMETRO |
Compatibility
- For devices with IEC 60320 C14 device installation plug (IEC input)
- Typical device types: Servers, workstations, monitors, UPS, PDU, network technology
- Mains side suitable for Brazilian type N sockets (ABNT NBR 14136)
Scope of delivery
1 × Power cable Brazil type N (3-pin) to IEC 60320 C13, 1.80 m, black (bulk).
DINIC is a brand of MAG GmbH - ready-made connection solutions for professional applications.
Keywords: Mains cable Brazil type N to C13, IEC 60906-1, IEC 60320 C13, H05VV-F 3G0.75 mm², 1.80 m, INMETRO, DINIC
