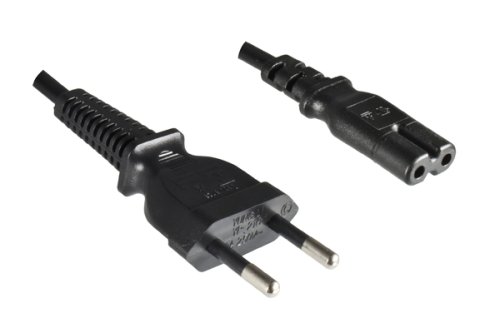

Power cable Brazil type C to C7, 0.75mm², INMETRO, black, length 1.80m
Power cable Brazil (BRA) type C to IEC 60320 C7 - 2×0.75 mm², 1.80 m, black
Connection cable for devices with C8 device input (C7 coupling) for use on Brazilian networks, INMETRO-approved.
Technical highlights

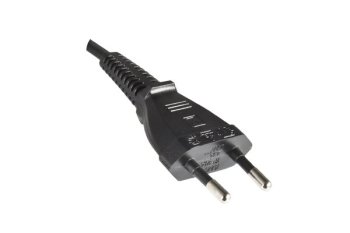

- Plug connector: Type C mains plug to IEC 60906-1 on appliance coupler IEC 60320 C7 (Figure-8)
- Conductor: 2-core, conductor cross-section 2×0.75 mm²
- Cable type: H03VVH2-F (PVC sheath, flat twin cable for easy installation)
- Length: 1.80 m - practical for workplace/rack environments and service applications
- Colour: black - neutral for mixed installations and device series
- Approval: INMETRO - for projects/installations with Brazil-specific requirements
- Packaging: Bulk (without individual packaging) - efficient for storage, production and rollout
- MAG art. no.: CB-8-BR (YP-21C/YC-13), EAN: 4032528012827
Product description
This connection cable connects the Brazilian mains side (type C according to IEC 60906-1) to an IEC 60320 C7 device coupling and is suitable for devices with a C8 device input (e.g. many external power supply units, radios, small IT peripherals and AV components). The conductor cross-section of 2×0.75 mm² is designed for robust, professional applications.
The H03VVH2-F version (flat twin cable) supports space-saving installation along cable ducts, behind devices or in bundles. The bulk packaging makes the cable particularly suitable for standard equipment, system integration and service depots.
Areas of application
- System integration & rollout (IT/AV workstations, peripherals, power supply units)
- Specialised trade / project business for Brazil installations
- Service, replacement and spare parts inventory (technical field service, depot stocks)
- Office IT, conference technology, digital signage (C8 device input)
Technical data
| Product type | Mains cable / connection cable (international) |
| Mains plug (input) | Type C according to IEC 60906-1 (BRA) |
| Appliance coupler (output) | IEC 60320 C7 |
| Number of cores | 2-core |
| Conductor cross-section | 2×0.75 mm² |
| Cable type | H03VVH2-F |
| colour | Black colour |
| Cable length | 1,80 m |
| approval | INMETRO |
| Packaging | Bulk (without) |
| Article number | CB-8-BR (YP-21C/YC-13) |
| EAN CODE | 4032528012827 |
| Weight (approx.) | 0.09 kg / piece |
Compatibility
- For devices with IEC 60320 C8 device input (suitable for C7 coupling)
- Typical device classes: external power supply units, IT/AV peripherals, small devices with Figure 8 connection
- Mains side for Brazil (BRA) with INMETRO requirement in the project/series environment
Scope of delivery
1× Mains cable Brazil type C to IEC 60320 C7, 1.80 m, black (bulk)
DINIC is a trademark of MAG GmbH. Technical design and variant labelling according to article master.
SEO: Mains cable Brazil BRA, type C to IEC 60320 C7, 2×0.75mm², 1.80m, H03VVH2-F, INMETRO, DINIC / MAG
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
