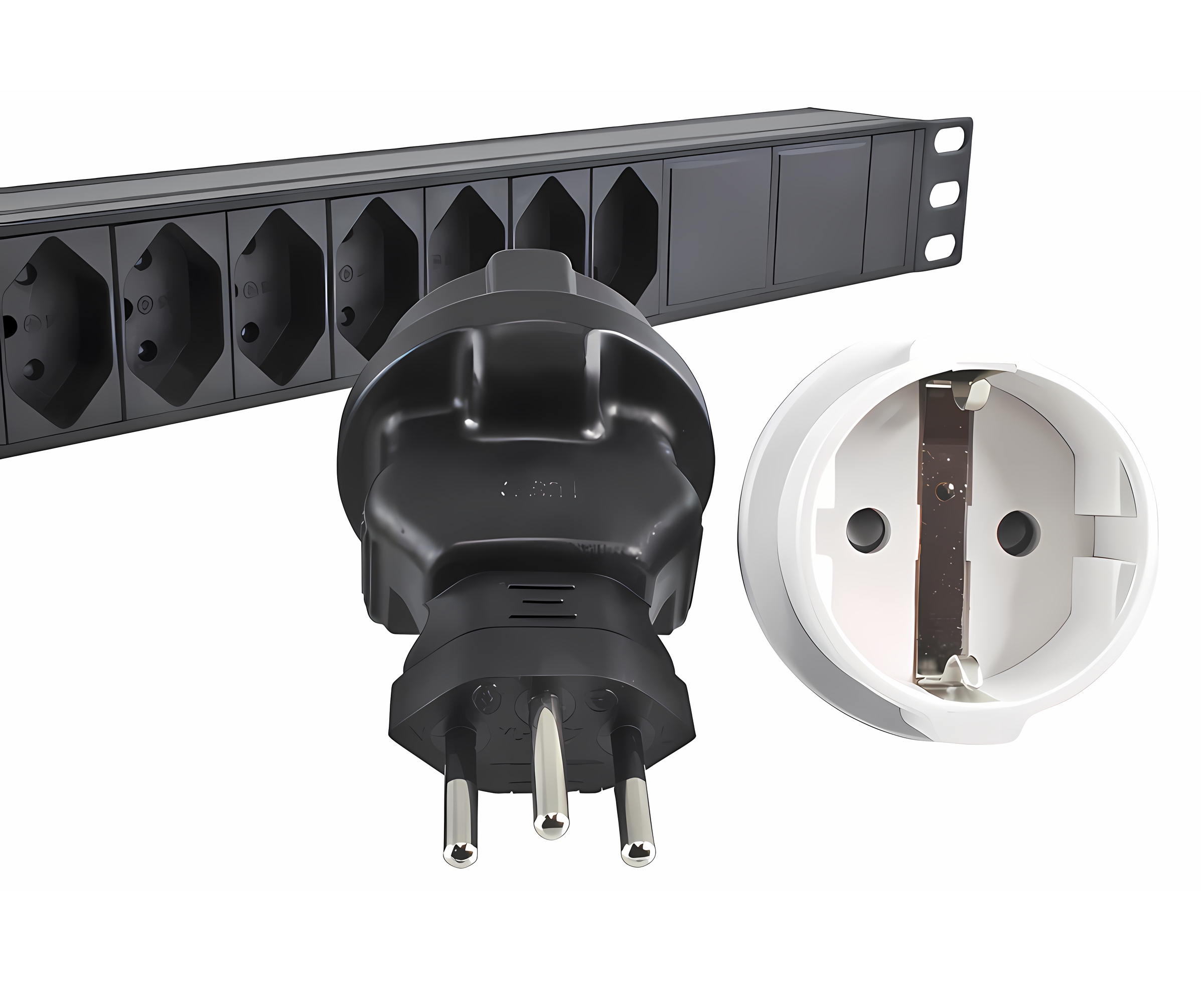

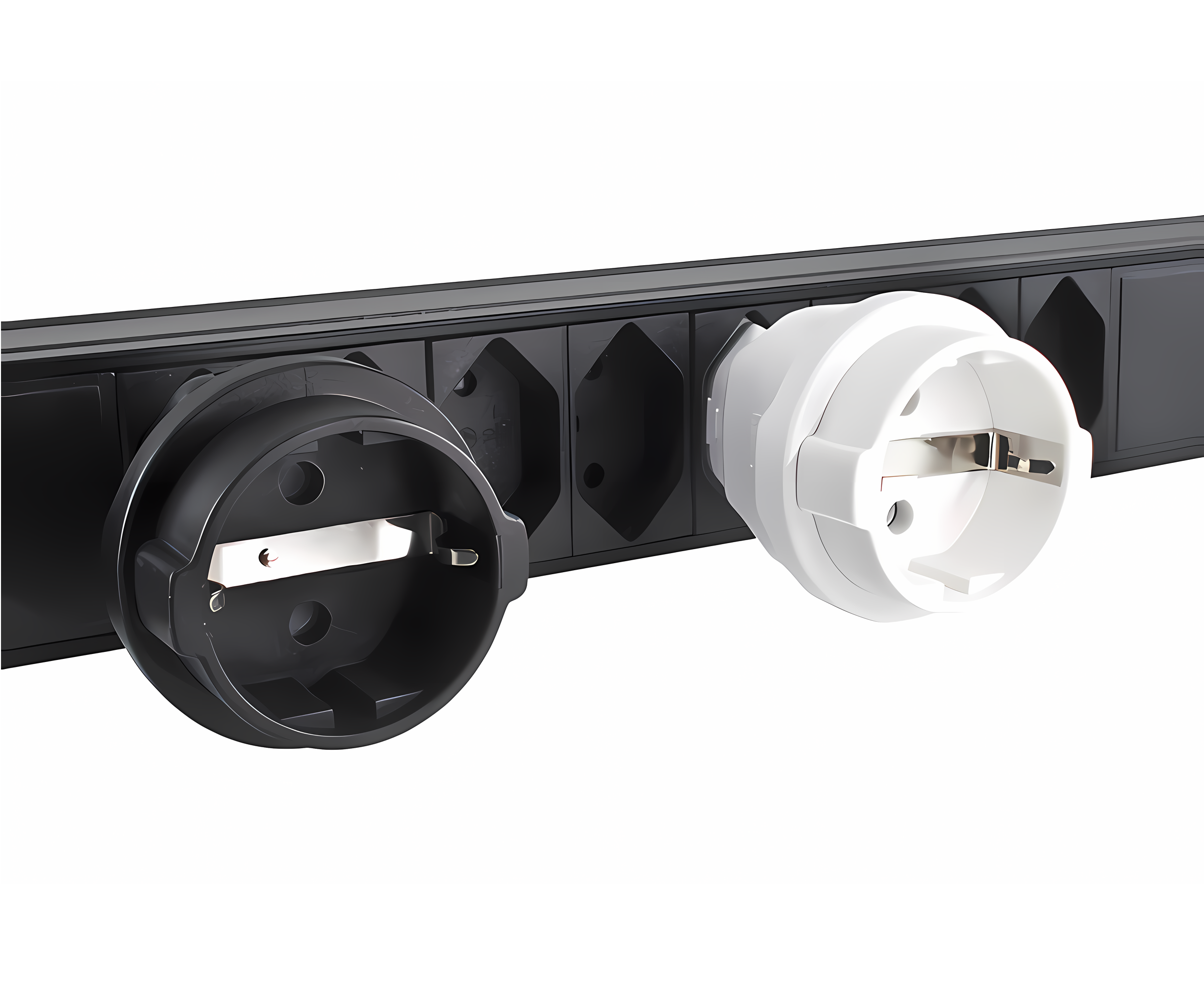

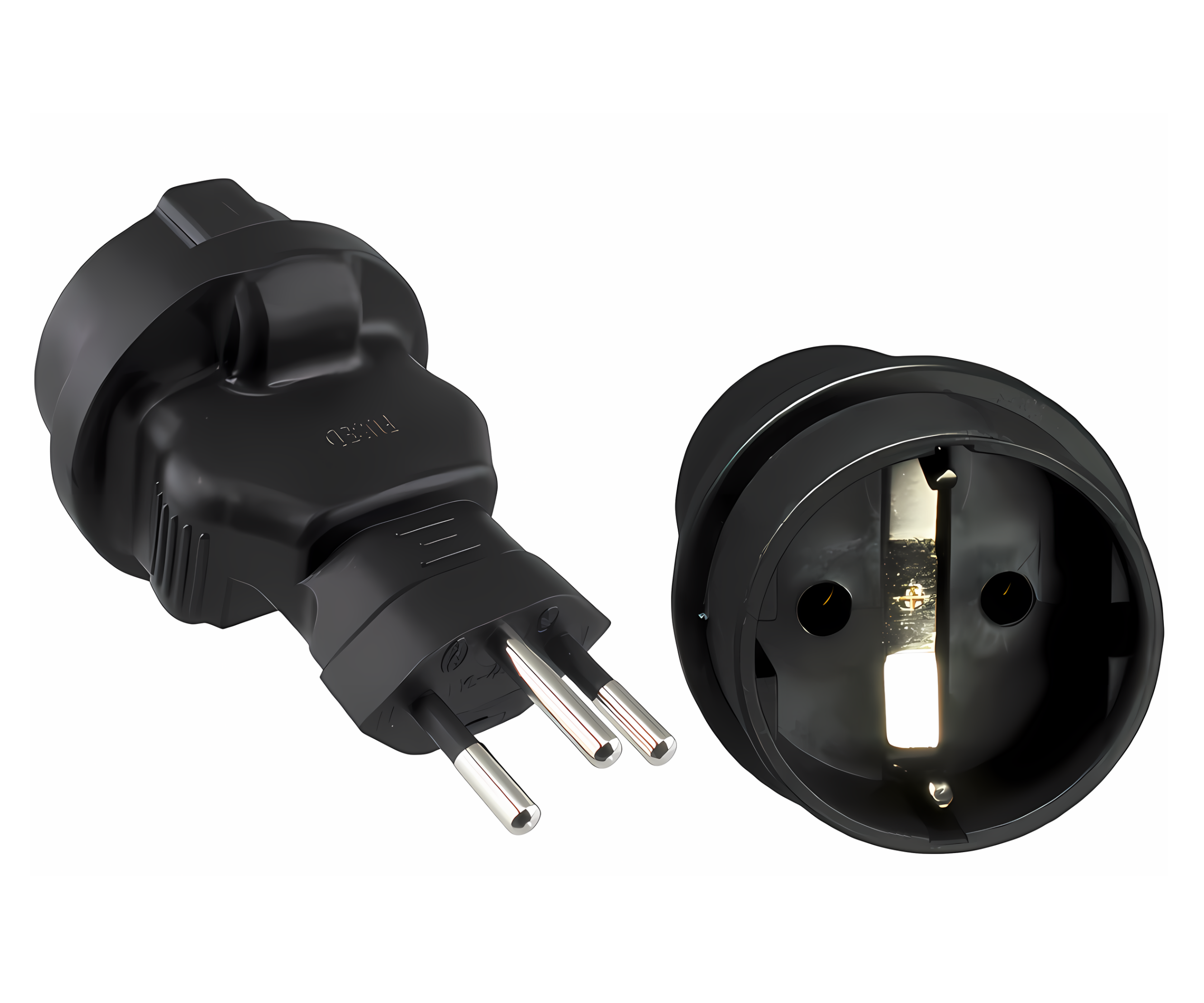

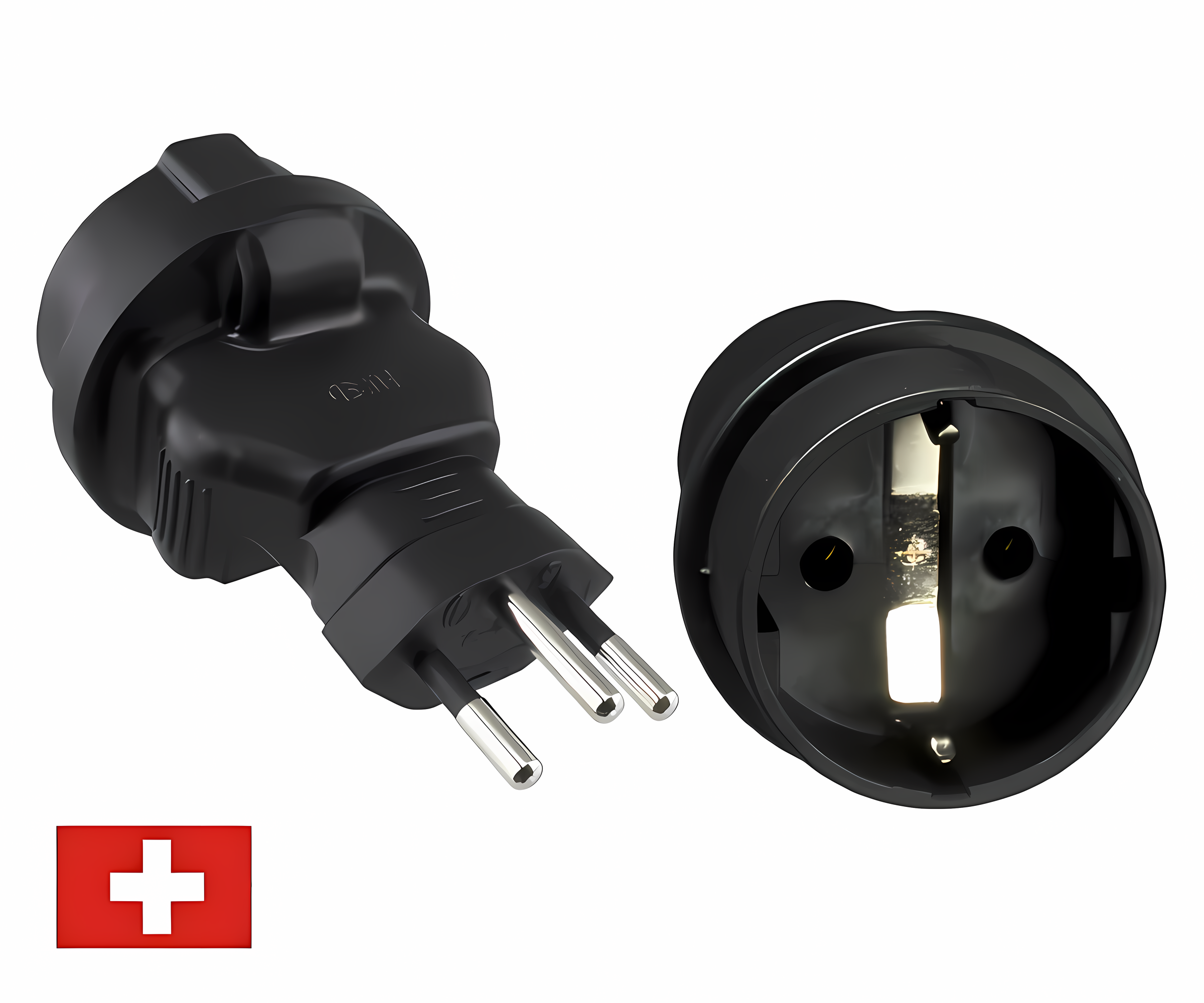

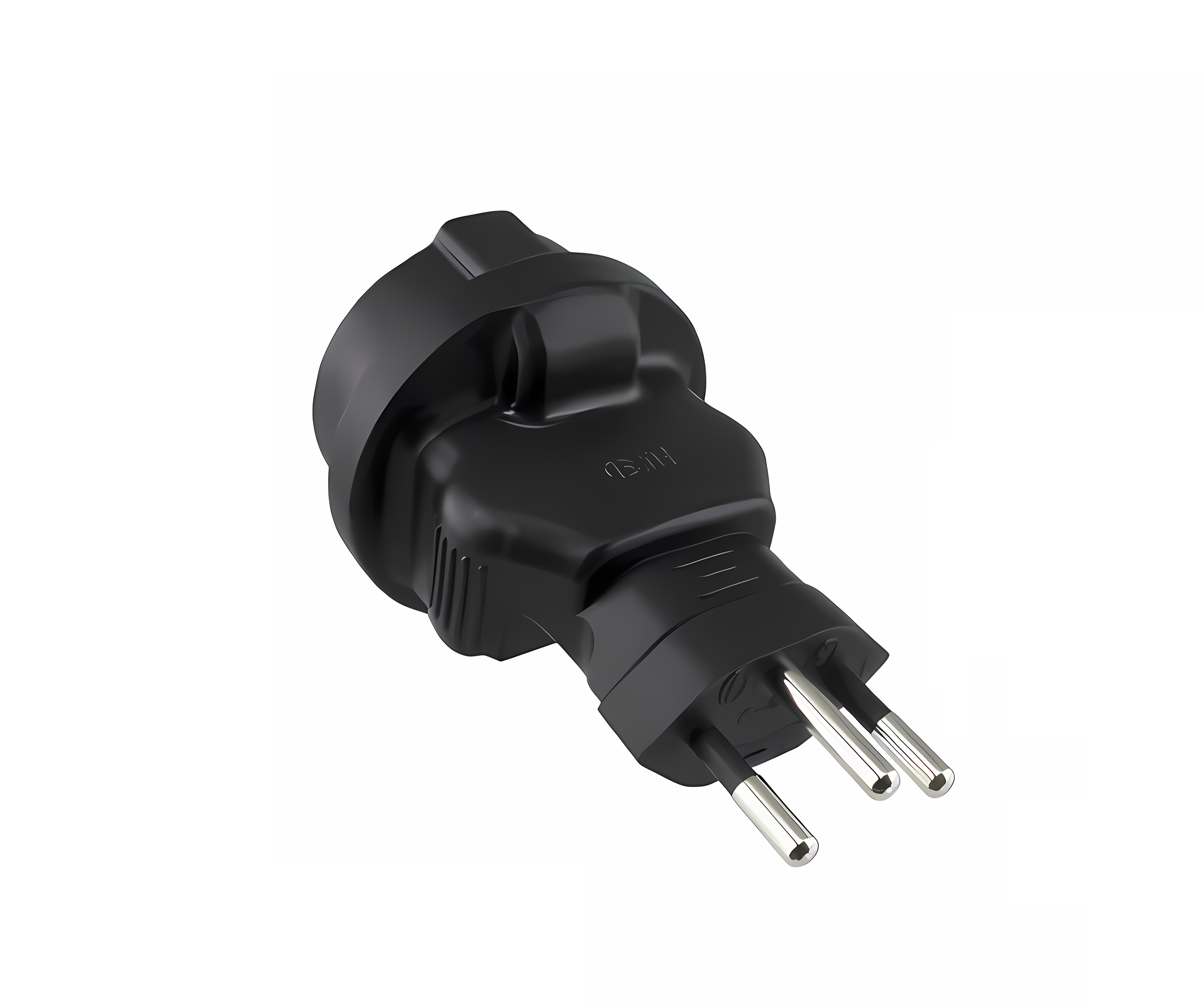

Power adapter Switzerland CEE 7/3 socket to CHE type J 10A 10A fuse, black

Travel plug, travel adapter Switzerland - CEE 7/3 to CHE

MAG item no.: CB-A-NS-FM-V2 (YL-4623)

• Plug: CEE 7/3 socket to CHE type J 10A plug
• Fuse: 10A
• Color: black
• Packing: Bulk

Countries:
Liechtenstein, Rwanda, Switzerland

Plug type J
The system is also called type 13 in Switzerland and is usually used with 220-230 V AC, 50 Hz. For safety in handling plugs, the Swiss standard SEV 1011:2009 has introduced partially insulated plug pins of type 11 (2pin 10A) and type 12 (3pin 10A) for power plugs.

CEE 7/3 socket also protective contact socket (YP-23)
In the grounding-type plug, two protection systems have been combined in one plug, so that grounding takes place through the contact surfaces or the grounding prong (French system).

IMPORTANT INFORMATION REGARDING SWISS POWER ADAPTERS

Since January 1, 2016, it has been mandatory to manufacture or import power adapters in accordance with the ESTI standard SN SEV 1011:2009/A1:2012.
In this regard, it is important to comply with the following changes or innovations:

1. preservation of the protection class
2. overcurrent protection
3. limitation of the operating time to 1 hour at full load
4. no single-pole plugging
5. no stacking allowed

This product meets the above requirements and is certified by ESTI.

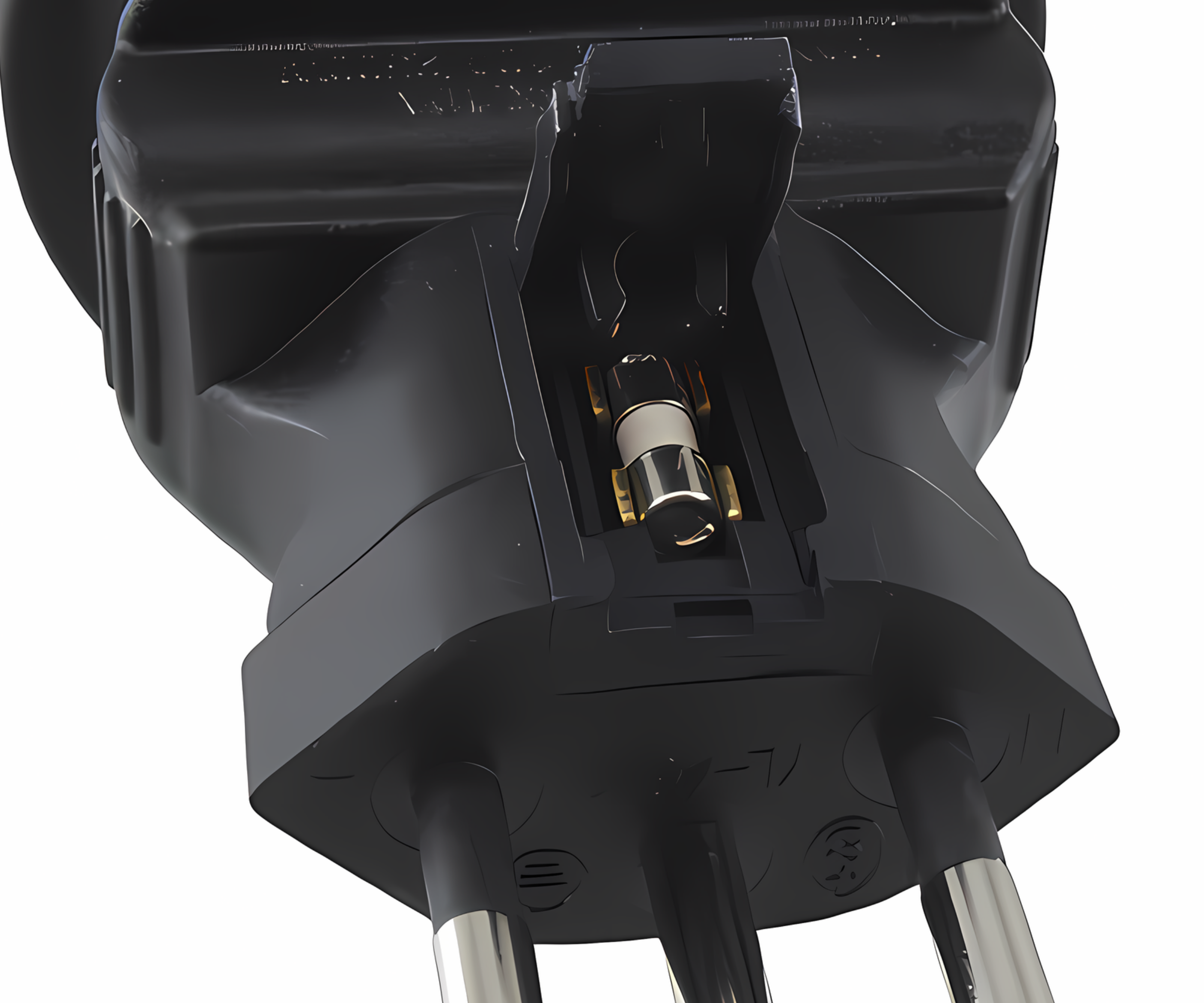

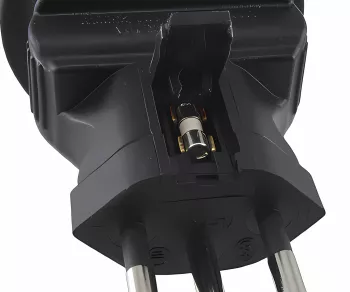

Fuse: Device protection fuses, Flink, 10mm x 3.6mm 10A, e.g. Multicomp Art. no. MCPGS 010
