DINIC DisplayPort 1.2 connector, 4K60Hz black, DINIC box with Euro hole
.jpg "DINIC DisplayPort 1.2 connector, 4K60Hz black, DINIC box with Euro hole")
.jpg "DINIC DisplayPort 1.2 Connector, 4K60Hz black,")

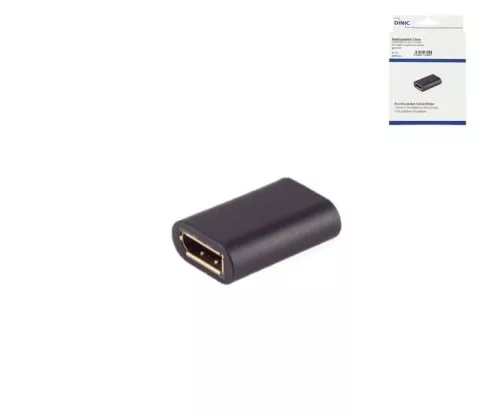

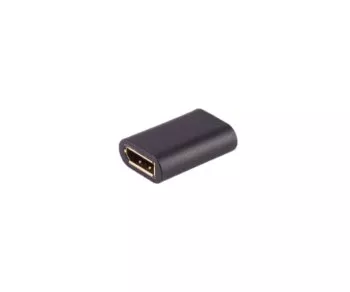

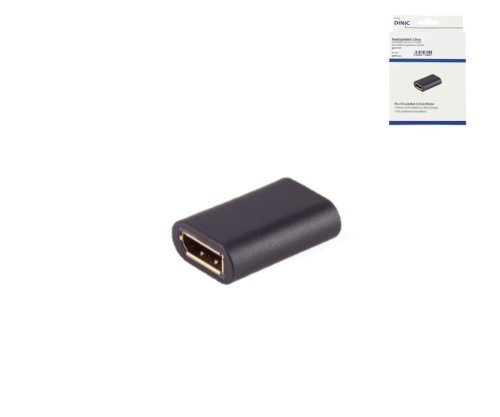

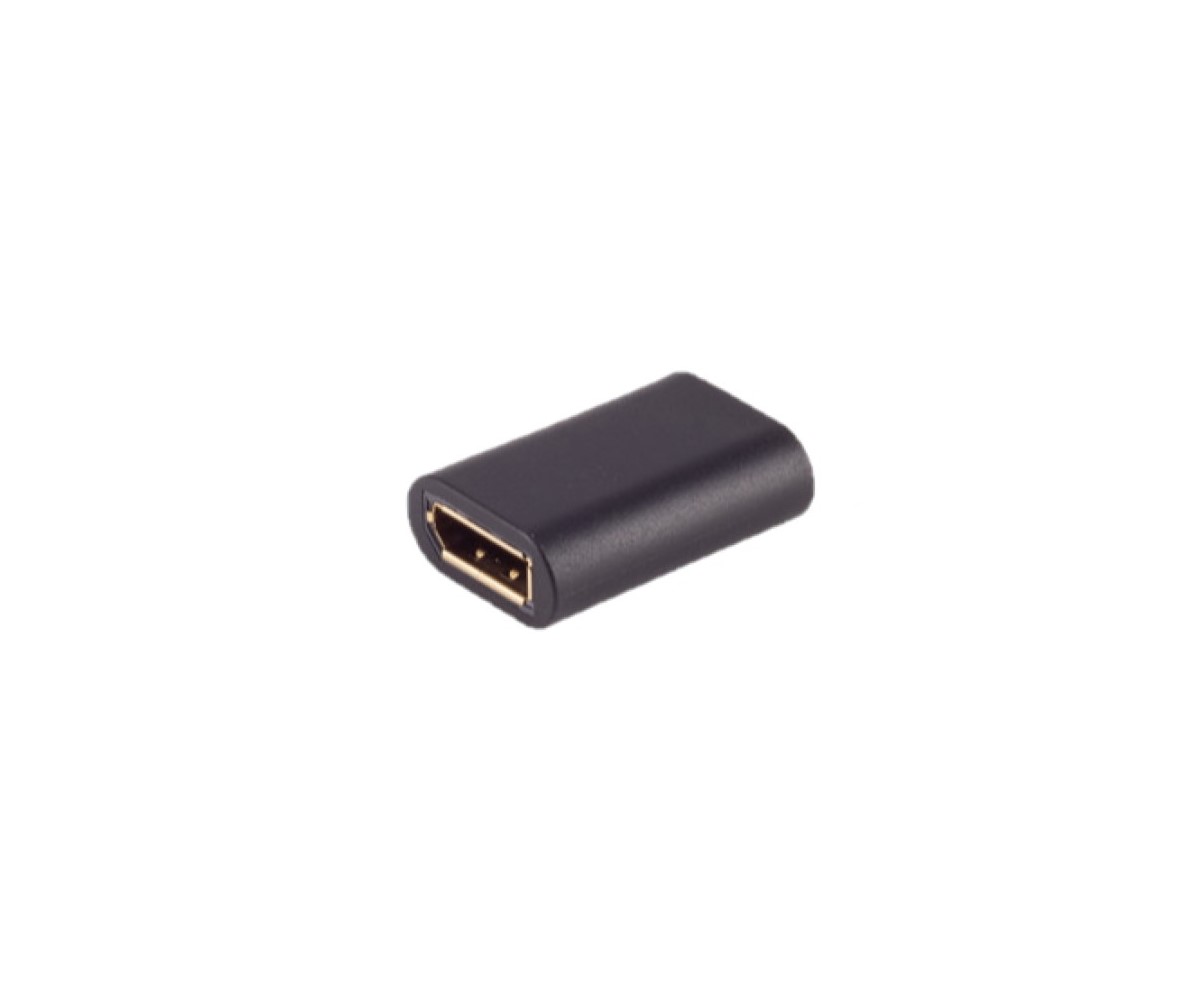

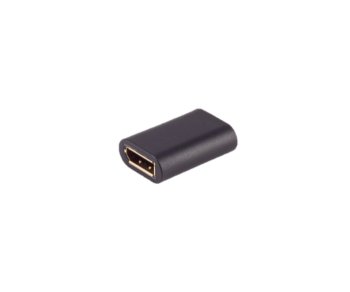

DINIC DisplayPort 1.2 connector - DP female/female, 4K@60Hz, black (DINIC Box)
Passive 1:1 connector for coupling two DisplayPort cables without signal amplification.
Technical highlights
- Adapter type: DisplayPort connector (coupling) - 1x DisplayPort socket to 1x DisplayPort socket
- DisplayPort version: 1.2, downwards compatible with 1.1
- Max. Bandwidth: 21.6 Gbit/s (HBR2)
- Resolutions: up to 4K (3840×2160) @ 60 Hz; up to 2560×1440 @ 165 Hz (system-dependent)
- Supported functions: MST, Adaptive-Sync, 3D, HDCP 1.3
- Signal direction: bidirectional (not directional)
- Contact surface: Gold-plated pins for low-corrosion contacting
- Housing material: PVC/ABS, colour: black
Description: black
The DINIC DisplayPort 1.2 connector couples two standard DisplayPort cables to form a continuous connection. The transmission is 1:1, the signal is neither changed nor actively amplified.
Gold-plated contacts support a permanently stable plug connection, especially with frequent reconnection or in environments close to installations (e.g. patch panels, rack cabling). The robust PVC/ABS housing is designed for professional use.
Practical note: Passive connectors/extensions can attenuate the signal. With longer overall lengths (sum of both cables), the maximum achievable bandwidth or resolution may vary depending on the cable quality, graphics output and sink.
Areas of application
- System integration & workplace cabling (PC/workstation to monitor, docking station, KVM/AV)
- IT/network and server cabinets (marshalling, extension of existing DP lines)
- Conference and training rooms (displays/projectors in combination with DP cabling)
- Industrial and building technology (digital video distribution, HMI/panel PC connections)
Technical data
| Article number | DP-BU-KB |
| Connectors | DisplayPort socket ↔ DisplayPort socket |
| DisplayPort version | 1.2 (downward compatible to 1.1) |
| Max. Bandwidth | 21.6 Gbit/s |
| Max. Max. resolution | up to 4K @ 60 Hz; up to 2560×1440 @ 165 Hz |
| Support for | HDCP 1.3, 3D, Adaptive-Sync, MST, HBR2 |
| Signal direction | Bidirectional |
| Contact surface | Gold-plated pins |
| Housing material | PVC / ABS |
| colour | Black colour |
| EAN CODE | 4032528041346 |
| Packaging | DINIC box (with Euro hole) |
| weight | approx. 0.03 kg / piece |
Compatibility
Suitable for connecting two DisplayPort cables with DisplayPort connector (standard DisplayPort) in DisplayPort 1.2 environments, e.g. between graphics card/workstation/docking station and monitor/display/projector (depending on overall length and cable quality).
Scope of delivery
- 1x DINIC DisplayPort 1.2 connector (DP socket/socket), black
- Individual packaging: DINIC Box
DINIC is a trademark of MAG GmbH.
Keywords: DisplayPort 1.2 connector, DP female/female coupler, 4K60Hz, 21.6 Gbit/s, HBR2, MST, Adaptive-Sync, DINIC, black
Manufacturer:
MAG GmbH
Vechelder Str. 22
38268 Lengede
Email: dinic@mag.de
Note on custom-made products
 |
Do you require this product in a different length, colour or with different connectors? Find out more about customised products in our shop.
|
