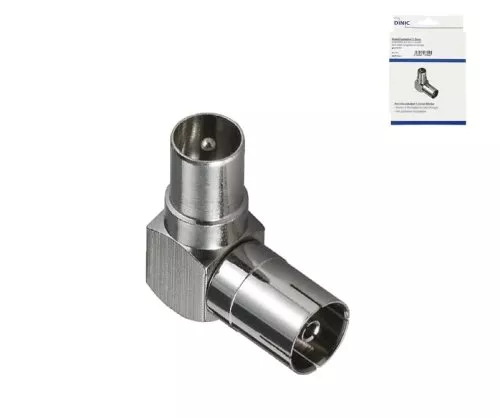

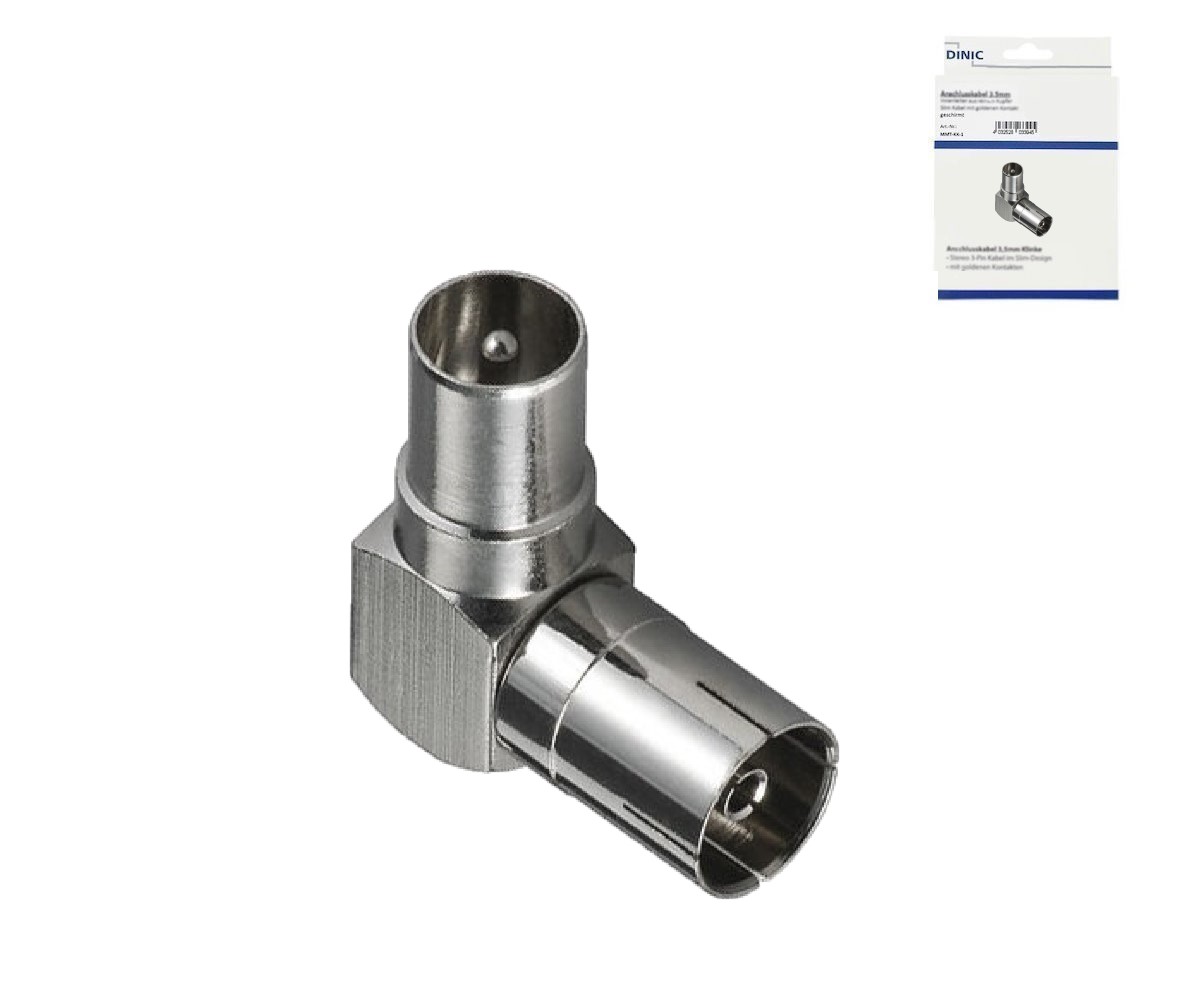

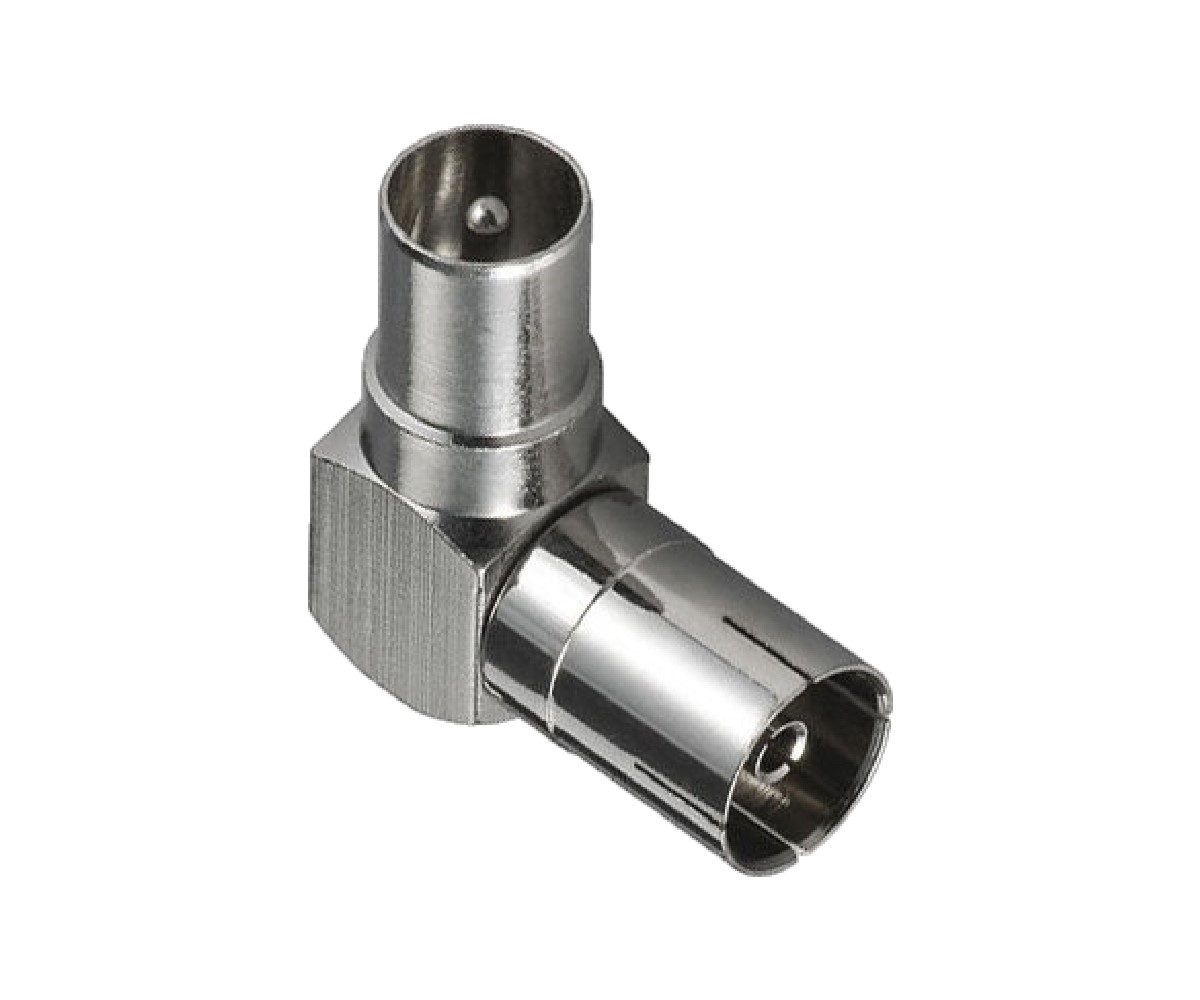

DINIC coaxial angle adapter 90°, metal housing coaxial plug to coaxial coupling, DINIC box with Euro hole

• Design: 90° coaxial angle adapter (change of direction without cable bend)
• Connection 1: Coaxial plug (IEC)
• Connection 2: Coaxial coupling (IEC)
• Housing: robust metal housing for mechanically stable plug connections
• Tool-free adaptation: pluggable, ideal for service and installation work
• Optimised for tight installation spaces (e.g. behind devices, in media/connection panels)
• Packaging: DINIC box with Euro hole (easy to sell and store)

The DINIC coaxial angle adapter enables an IEC coaxial connection to be redirected by 90° and thus supports clean, low-voltage cable routing in confined spaces. Typical applications are rear device zones, densely occupied connection panels or installations where a straight connector requires too much installation depth.

The metal housing is designed for mechanical resilience and supports a permanently stable plug connection in daily installation and service use.

Note on angled plugs: The illustration of the plug is decisive, as the designation left/right/up/down angled depends on the respective point of view.

• Building technology: TV/cable connection in junction boxes, multimedia distributors and technical rooms
• System integration: space-saving adaptation in racks, media panels and installation ducts
• Service & maintenance: quick change of direction without having to reassemble coax cables
• AV/signalling infrastructure: clean cable routing with tightly mounted components

For coaxial connections with IEC coaxial plug/socket (TV/cable connection). Suitable for adaptation between IEC coaxial cables, junction boxes, distribution components and end devices with a suitable IEC coax interface.

• 1× DINIC 90° coaxial angle adapter (coaxial plug to coaxial coupling), metal housing
