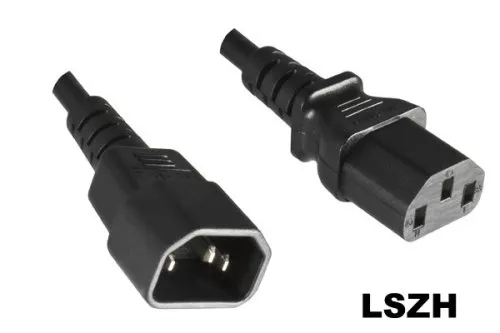

Cold device extension LSZH C13 to C14, black, 1.80m
MAG item no.: CB-K-ZH (YP-32Z/YC-12Z)
- Plug: C13 to C14
- Color: black
- length: 1,80m
- Cross section: 3 x 1mm²
- Material: H05Z1Z1-F
- Approval: VDE, ENEC
- RoHS compliant
- Packaging: Bulk
- Cable and plug are LSZH certified
Plug C13 ( YC-12 ) / Plug C14 - ( YP-32 )
IEC 60320-C13 cold appliance plug is used for power connection of devices which do not generate heat during operation. The maximum temperature of the plug must not exceed 70°C and the maximum current flow is fixed at 10 A. Cold appliance plugs do not fit into warm or hot appliance sockets.
LSZH Low Smoke Zero Halogen
The terms Low Smoke Zero Halogen (LSZH) or Low Smoke Free of Halogen (LSFOH) are used in cabling technology for the classification of cable material. This refers to the behavior of thermoplastic materials in the event of fire, and to the flammability or flame resistance of the sheathing material of transmission cables. Low smoke means that the cable material produces little smoke in the event of a fire, and zero halogen means that it is halogen-free. In case of fire, such a cable material will not release corrosive or caustic acids.
